RY 401012 (107205001) - Ryobi 40V Walk-Behind Mower, Rev 02 (2020-08) General Assembly Parts Diagram

40V Walk-Behind Mower, Rev 02

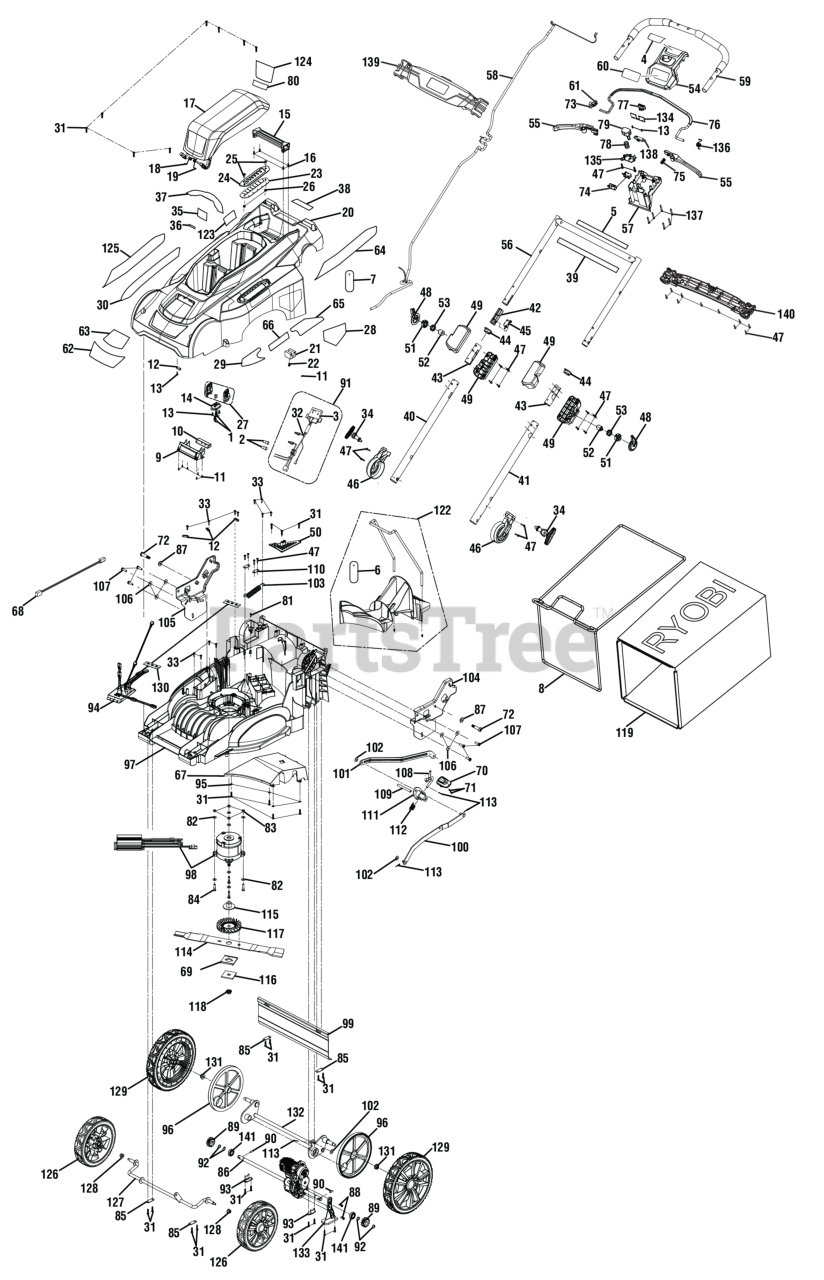

General Assembly Parts Diagram

  • Title

1

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

2

Homelite 870601002

Close-End Connector

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 311209001

Battery Hold Assembly

$

$

Not available

4

Homelite 941851177

Starting Instructions Label

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 941851178

Handles Fully Extended Label

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 918016030

Mulch Plug Hangtag

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 941851294

Start Key Hangtag

$2.49

$

Usually ships in 0 days

0

8

Homelite 658015002

FRAME, 20 INCH GRASS BAG, BLACK

$

$

Not available

9

Homelite 537118001

LED Cover

$3.49

$

Usually ships in 3-7 days

0

10

Homelite 537117001

Light Reflector

$7.99

$

Usually ships in 3-7 days

0

11

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$2.49

$

In Stock, only 3 left!

0

12

Homelite 513211001

Wire Press Plate

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

14

Homelite 526912001

Key Holder
(Superseded to 120722005)

$20.99

$

Usually ships in 3-7 days

0

15

Homelite 537116001

Carry Handle

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 661189002

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 5

0

17

Homelite 205204001

Battery Cover (Inc. Key Nos. 80 & 124)

$31.99

$

Usually ships in 3-7 days

0

18

Homelite 697546001

Battery Door Right Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 697547001

Battery Door Left Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 205284001

TOP COVER W/ LABELS

$54.99

$

Usually ships in 3-7 days

0

21

Homelite 890050001

SENSOR SWITCH FOR GRASS BAG

$

$

Not available

22

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 563454001

Shifter Boot

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 635382001

Height Adjustment Plate

$5.99

$

Usually ships in 3-7 days

0

25

Homelite 660713001

SCREW (M5 x 16 mm SOC. WASHER HD. CAP)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 678509001

Lock Nut (M5 x 0.8 mm)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 205283001

START KEY W/ HANG TAG

$11.99

$

Usually ships in 3-7 days

0

28

Homelite 941641001

Danger Label (No Hands/Feet)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 941016033

Front Green Accent Label

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 941016034

Side Green Accent Label

$4.49

$

Usually ships in 3-7 days

0

31

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

In Stock, Qty 10

0

32

Homelite 292012001

Inner Wire with Terminal

$45.99

$

Usually ships in 3-7 days

0

33

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 311620003

SPRING PIN ADJUSTMENT ASSEMBLY

$16.99

$

Usually ships in 3-7 days

0

35

Homelite 941016031

Wet Conditions Warning Label

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 940851500

Onboard Battery Storage Label

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 941016032

Start Key Warning Label

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 941511038

Attachment User Callout Label

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 941851125

Handle Logo Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 698135001

STEEL TUBE,LOW RIGHT HANDLE TUBE

$20.99

$

Usually ships in 3-7 days

0

41

Homelite 698136001

STEEL TUBE,LOW LEFT HANDLE TUBE

$20.99

$

Usually ships in 3-7 days

0

42

Homelite 533467001

Switch Plug Housing

$2.49

$

In Stock, only 3 left!

0

43

Homelite 537295001

Handle Tube Bushing

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 529327001

Handle Tube Bushing (Small)

$2.49

$

In Stock, Qty 5

0

45

Homelite 760551002

Switch

$4.99

$

In Stock, only 2 left!

0

46

Homelite 538869001

HINGE SHROUD

$2.99

$

Usually ships in 3-7 days

0

47

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 5

0

48

Homelite 536916001

Side Handle Latch

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 205213001

Handle Latch Assembly

$14.99

$

In Stock, only 1 left!

0

50

Homelite 532556002

PLASTIC,COVER FOR TRANSMISSION ASSY\ ABS

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 536919002

Disc Holder

$2.49

$

In Stock, only 2 left!

0

52

Homelite 565045001

Side Compression Disc

$2.49

$

In Stock, only 4 left!

0

53

Homelite 697483001

Handle Compression Spring

$2.49

$

In Stock, Qty 9

0

54

Homelite 205281001

UPPER HANDLE SUPPORT ASSEMBLY W/ LABEL

$

$

Not available

55

Homelite 205282001

TRIGGER ASSEMBLY

$9.99

$

In Stock, only 1 left!

0

56

Homelite 205276001

UPPER HANDLE TUBE W/ LABEL

$55.99

$

Usually ships in 3-7 days

0

57

Homelite 205280001

UPPER HANDLE SUPPORT ASSEMBLY

$21.99

$

Usually ships in 3-7 days

0

58

Homelite 292138001

CORD, 5PCS INNER WIRE AND PLUG ASSY

$26.99

$

Usually ships in 3-7 days

0

59

Homelite 312423001

Upper Handle Assembly

$31.99

$

Usually ships in 3-7 days

0

60

Homelite 941851178

Handles Fully Extended Label

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 529011002

Actuator Switch

$2.49

$

In Stock, only 2 left!

0

62

Homelite 941851293

LABEL, FRONT ""BRUSHLESS""

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 941016027

Ryobi 40V Lithium Label

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 941016028

Brushless Label (Left)

$4.99

$

Usually ships in 3-7 days

0

65

Homelite 941016029

Single Point Height Adjustment Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 941016030

Cut Height Label

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 527548004

Baffle

$13.99

$

Usually ships in 3-7 days

0

68

Homelite 292102001

Inner Wire with Connector Between Transmission & PCBA

$15.99

$

Usually ships in 3-7 days

0

69

Homelite 526920002

Spacer

$2.49

$

In Stock, Qty 5

0

70

Homelite 529656002

NLA(NO LONGER AVAILABLE)
(Superseded to 205011003)

$3.99

$

In Stock, only 1 left!

0

71

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

72

Homelite 661706002

Screw (M8 x 33 mm, Hex Hd.)

$

$

Currently unavailable

73

Homelite 760961002

Stop Switch (Momentary Contact)

$4.49

$

Usually ships in 3-7 days

0

74

Homelite 760689007

On/Off Switch
(Superseded to 760689010)

$4.99

$

In Stock, only 2 left!

0

75

Homelite 694218001

Compression Spring

$2.49

$

In Stock, Qty 5

0

76

Homelite 695004002

Bail Handle (Power Lever)

$16.99

$

Usually ships in 3-7 days

0

77

Homelite 532667001

Thumb Pad

$2.49

$

Usually ships in 3-7 days

0

78

Homelite 694475001

Safety Button Spring

$2.49

$

Usually ships in 3-7 days

0

79

Homelite 528278004

Safety Button

$2.49

$

Usually ships in 3-7 days

0

80

Homelite 941016021

Main Warning Label (Part 1)

$2.49

$

Usually ships in 3-7 days

0

81

Homelite 660203087

Screw (M3 x 12 mm)

$

$

Not available

82

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$2.49

$

Usually ships in 3-7 days

0

83

Homelite 680196006

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

84

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

85

Homelite 639116003

Axle Pressure Plate

$2.49

$

Usually ships in 3-7 days

0

86

Homelite 210376001

Transmission Assembly

$215.99

$

Usually ships in 3-7 days

0

87

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2 mm x 2t)

$2.49

$

Usually ships in 3-7 days

0

88

Homelite 662065001

Screw (T20 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

89

Homelite 613239001

Drive Gear

$3.99

$

In Stock, Qty 5

0

90

Homelite 622068001

Gear Shaft

$2.49

$

Usually ships in 3-7 days

0

91

Homelite 292163001

BATTERY HOLDER AND WIRE ASSEMBLY

$

$

Not available

92

Homelite 690698001

Retaining Ring

$2.49

$

In Stock, only 4 left!

0

93

Homelite 639116004

Mounting Plate

$2.49

$

Usually ships in 3-7 days

0

94

Homelite 280582008

DRIVE MOTOR CONTROLLER

$96.99

$

Usually ships in 3-7 days

0

95

Homelite 636062001

Washer (ID4.5 x OD10 x 1t)

$2.49

$

Usually ships in 3-7 days

0

96

Homelite 532115001

Wheel Cover

$4.99

$

Usually ships in 3-7 days

0

97

Homelite 532184005

Deck

$170.99

$

Usually ships in 3-7 days

0

98

Homelite 292140001

MOTOR 10035#, CONTROLLER ASSEMBLE,HUAJIE

$630.99

$

Usually ships in 3-7 days

0

99

Homelite 534779001

Rear Protective Guard

$23.99

$

In Stock, only 2 left!

0

100

Homelite 673931001

Forward Linkage

$8.99

$

Usually ships in 3-7 days

0

101

Homelite 635379005

Rear Lift Rod

$31.99

$

Usually ships in 3-7 days

0

102

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$2.49

$

Usually ships in 3-7 days

0

103

Homelite 694052001

Rentention Spring

$3.99

$

In Stock, Qty 5

0

104

Homelite 658717001

STAMPING, LEFT HANDLE BRACKET

$35.99

$

Usually ships in 3-7 days

0

105

Homelite 658716001

STAMPING, RIGHT HANDLE BRACKET

$35.99

$

In Stock, only 1 left!

0

106

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

107

Homelite 664004003

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

108

Homelite 637031003

Lever Arm

$5.99

$

Usually ships in 3-7 days

0

109

Homelite 639122001

Axle (Height Adjustment)

$2.49

$

Usually ships in 3-7 days

0

110

Homelite 639125002

Pressure Plate (Height Adjustment)

$2.49

$

Usually ships in 3-7 days

0

111

Homelite 639203003

Height Adjustment Bracket

$9.49

$

Usually ships in 3-7 days

0

112

Homelite 679992001

Torsion Spring (Height Adjustment)

$2.49

$

In Stock, Qty 10

0

113

Homelite 678279004

Cotter PinÏ? (2.5)

$2.49

$

In Stock, only 2 left!

0

114

Homelite 682162001

Bagging Blade

$22.99

$

Usually ships in 3-7 days

0

115

Homelite 613427001

Motor Shaft Bushing

$8.99

$

Usually ships in 3-7 days

0

116

Homelite 639118001

Metal Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

117

Homelite 535080001

Motor Fan Blade Adapter

$4.49

$

In Stock, only 1 left!

0

118

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$2.49

$

In Stock, only 3 left!

0

119

Homelite 903775001

GRASS BAG

$34.99

$

Usually ships in 3-7 days

0

122

Homelite 205206001

Mulch Plug Assembly (Inc. Key No. 6)

$36.99

$

Usually ships in 3-7 days

0

123

Homelite 941851290

LABEL, DATA, RY401120

$2.49

$

Usually ships in 3-7 days

0

124

Homelite 941016024

Main Warning Label (Part 2)

$2.49

$

Usually ships in 3-7 days

0

125

Homelite 941016020

Brushless Label (Right)

$4.99

$

Usually ships in 3-7 days

0

126

Homelite 330073012

PLASTIC,8'' WHEEL ASSEMBLY

$24.99

$

Usually ships in 3-7 days

0

127

Homelite 696316001

Front Axle

$27.99

$

In Stock, only 2 left!

0

128

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$2.49

$

In Stock, Qty 5

0

129

Homelite 330072008

PLASTIC, 10"" WHEEL ASSEMBLY

$46.99

$

Usually ships in 3-7 days

0

130

Homelite 280821001

LED PCBA

$20.99

$

Usually ships in 3-7 days

0

131

Homelite 662082001

Lock Nut (3/8-16, Flange)

$2.49

$

Usually ships in 3-7 days

0

132

Homelite 637788002

Rear Wheel Axle w/Rotation Plate

$70.99

$

Usually ships in 3-7 days

0

133

Homelite 532557001

Transmission Holder

$2.49

$

Usually ships in 3-7 days

0

134

Homelite 532680001

Dust Shield

$2.49

$

Usually ships in 3-7 days

0

135

Homelite 528654004

Spring Holder

$

$

Currently unavailable

136

Homelite 695036001

Torsion Spring

$

$

Not available

137

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$2.49

$

In Stock, only 2 left!

0

138

Homelite 270109001

Variable Switch

$9.49

$

Usually ships in 3-7 days

0

139

Homelite 529267001

Front Upper Handle Support
(Superseded to 205045001)

$37.99

$

Usually ships in 3-7 days

0

140

Homelite 529269001

Rear Upper Handle Support
(Superseded to 205045001)

$37.99

$

Usually ships in 3-7 days

0

141

Homelite 682164001

Ball Bearing (OD28.6 x ID12.7 x 8)

$4.99

$

In Stock, Qty 5

0

Homelite 995000992

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
