RY 401018 VNM (108674001) - Ryobi 20" 40V Walk-Behind Mower, Rev 01 (2022-01) FIGURE A Parts Diagram

20" 40V Walk-Behind Mower, Rev 01

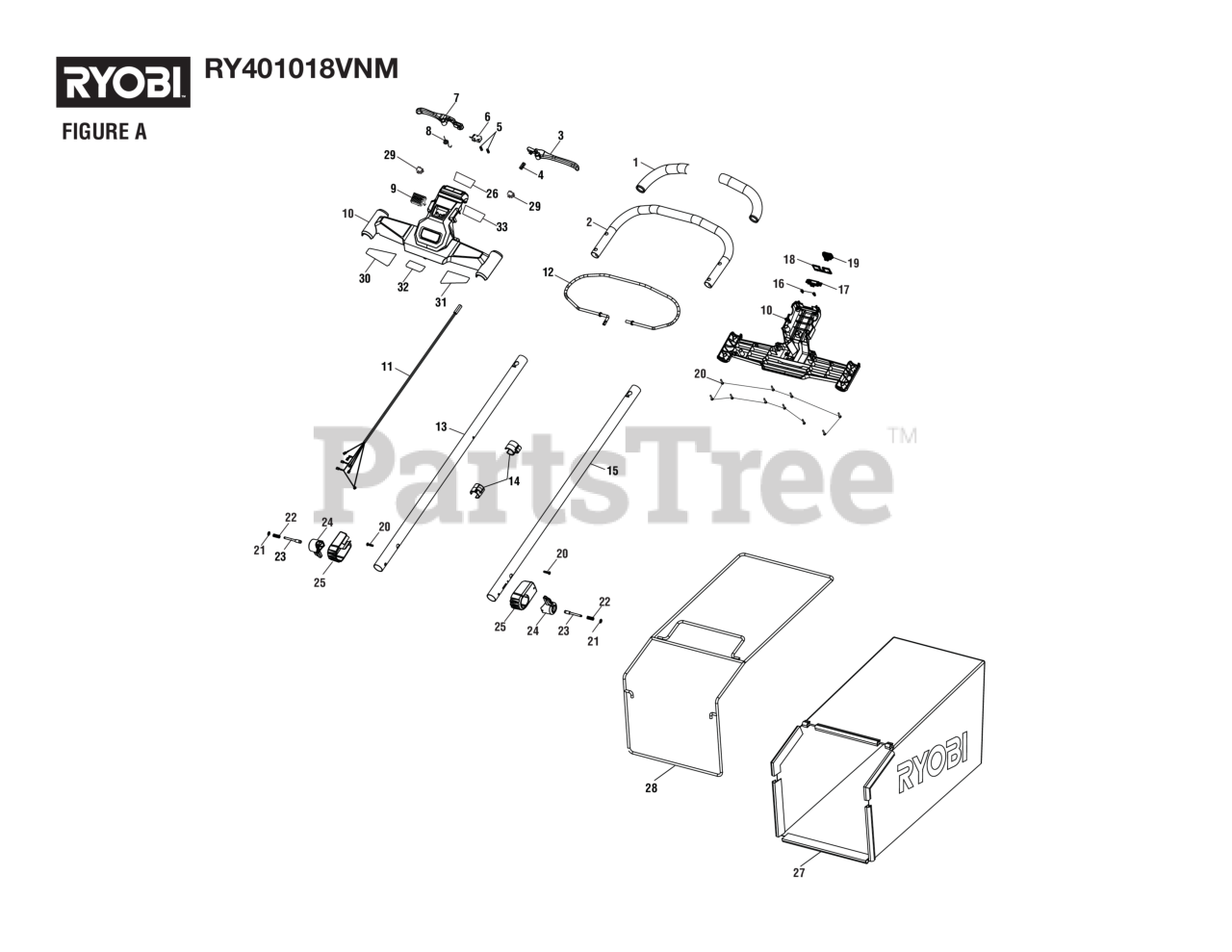

FIGURE A Parts Diagram

  • Title

1

Homelite 566235001

Foam

$7.99

$

Usually ships in 3-7 days

0

2

Homelite 699592001

Handle

$33.99

$

Usually ships in 3-7 days

0

3

Homelite 544120001

Trigger Left

$3.49

$

Usually ships in 3-7 days

0

4

Homelite 694218001

Compression Spring

$2.49

$

In Stock, Qty 5

0

5

Homelite 699704001

Spring

$2.49

$

In Stock, Qty 5

0

6

Homelite 760689007

On/Off Switch
(Superseded to 760689010)

$4.99

$

In Stock, only 2 left!

0

6

Homelite 760689010

Micro On/Off Switch (6A)

$4.99

$

In Stock, only 2 left!

0

7

Homelite 544121001

Trigger (Right)

$3.99

$

Usually ships in 3-7 days

0

8

Homelite 699605001

Bail Reset Spring

$2.49

$

In Stock, Qty 5

0

9

Homelite 543975001

Start Button

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 205807001

Upper Handle Assembly

Note: (Inc. Key Nos. 30-34 )

$28.99

$

Usually ships in 3-7 days

0

11

Homelite 292329001

Wire Cord Assembly

$26.99

$

Usually ships in 3-7 days

0

12

Homelite 699598001

Trigger

$22.99

$

Usually ships in 3-7 days

0

13

Homelite 699650001

Lower Tube

$37.99

$

Usually ships in 3-7 days

0

14

Homelite 544302001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 699649001

Lower Tube

$37.99

$

Usually ships in 3-7 days

0

16

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$2.49

$

In Stock, only 3 left!

0

17

Homelite 270109001

Variable Switch

$9.49

$

Usually ships in 3-7 days

0

18

Homelite 544717001

Dust Shield

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 532667001

Thumb Pad

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 5

0

21

Homelite 659472001

Retaining Ring

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 694490001

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 674293001

Detent Pin

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 543972001

Adjustment Knob

$2.49

$

In Stock, only 4 left!

0

25

Homelite 543971001

Adjustment Knob Bushing

$3.49

$

In Stock, only 2 left!

0

26

Homelite 940779411

Handle Speed Label

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 317926001

Grass Catcher

$78.99

$

In Stock, only 3 left!

0

28

Homelite 699601001

Grass Catcher Frame

$59.99

$

In Stock, only 2 left!

0

29

Homelite 760551001

Switch

$5.99

$

Usually ships in 3-7 days

0

30

Homelite 940779420

Upper Handle Label (Left)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 940705544

Logo Label

$2.49

$

In Stock, only 1 left!

0

32

Homelite 940779419

Upper Handle Label (Right)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 940779412

Starting Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000762

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
