RY 40108 (107813013) - Ryobi 40V Walk-Behind Mower, Rev 01 (2019-09) FIGURE C Parts Diagram

40V Walk-Behind Mower, Rev 01

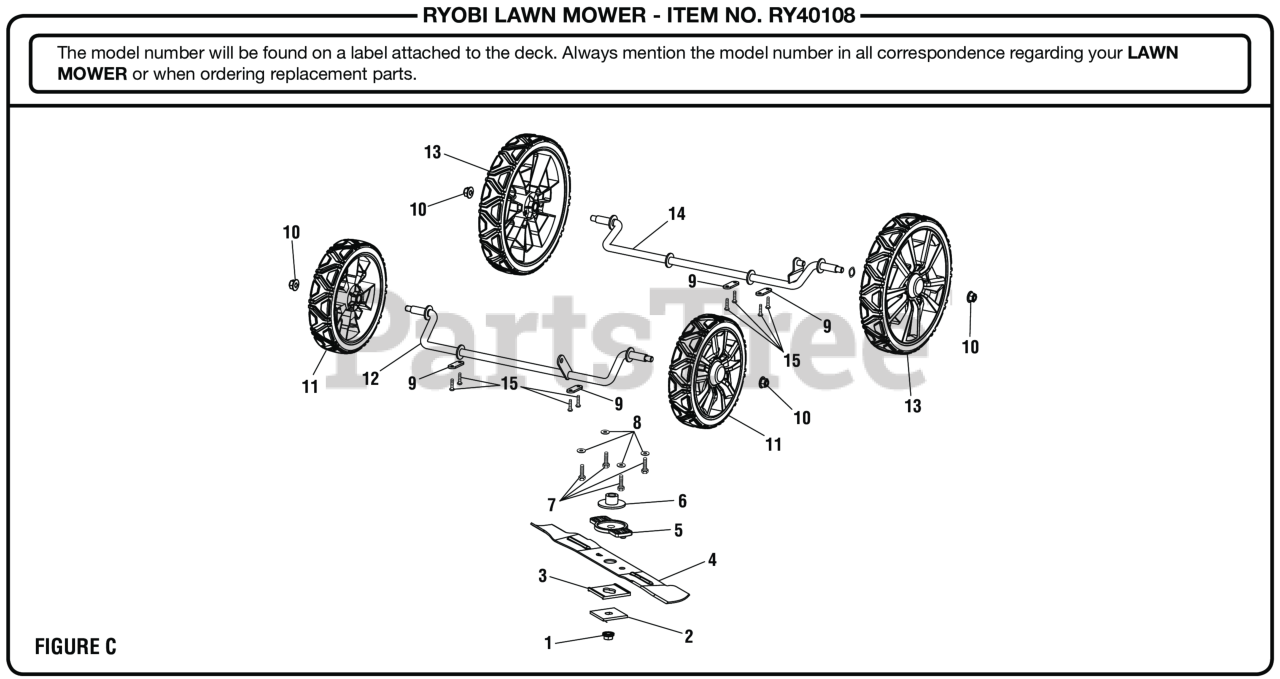

FIGURE C Parts Diagram

  • Title

1

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 639118001

Metal Blade Retainer

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 526920002

Spacer

$2.49

$

In Stock, only 2 left!

0

4

Homelite 682162001

Bagging Blade

$22.99

$

Usually ships in 3-7 days

0

5

Homelite 535080001

Motor Fan Blade Adapter

$4.49

$

In Stock, only 1 left!

0

6

Homelite 613427001

Motor Shaft Bushing

$8.99

$

Usually ships in 3-7 days

0

7

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 639116003

Axle Pressure Plate

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$2.49

$

In Stock, Qty 7

0

11

Homelite 330073003

Front Wheel Assembly

$12.99

$

Usually ships in 3-7 days

0

12

Homelite 696316001

Front Axle

$27.99

$

In Stock, only 2 left!

0

13

Homelite 330072002

Rear Wheel Assembly

$

$

Not available

14

Homelite 696318001

Rear Wheel Axle

$35.99

$

In Stock, only 3 left!

0

15

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

In Stock, Qty 10

0
