RY 40108 (107993003) - Ryobi 40V Walk-Behind Mower, Rev 06 (2017-07) Figure A Parts Diagram

40V Walk-Behind Mower, Rev 06

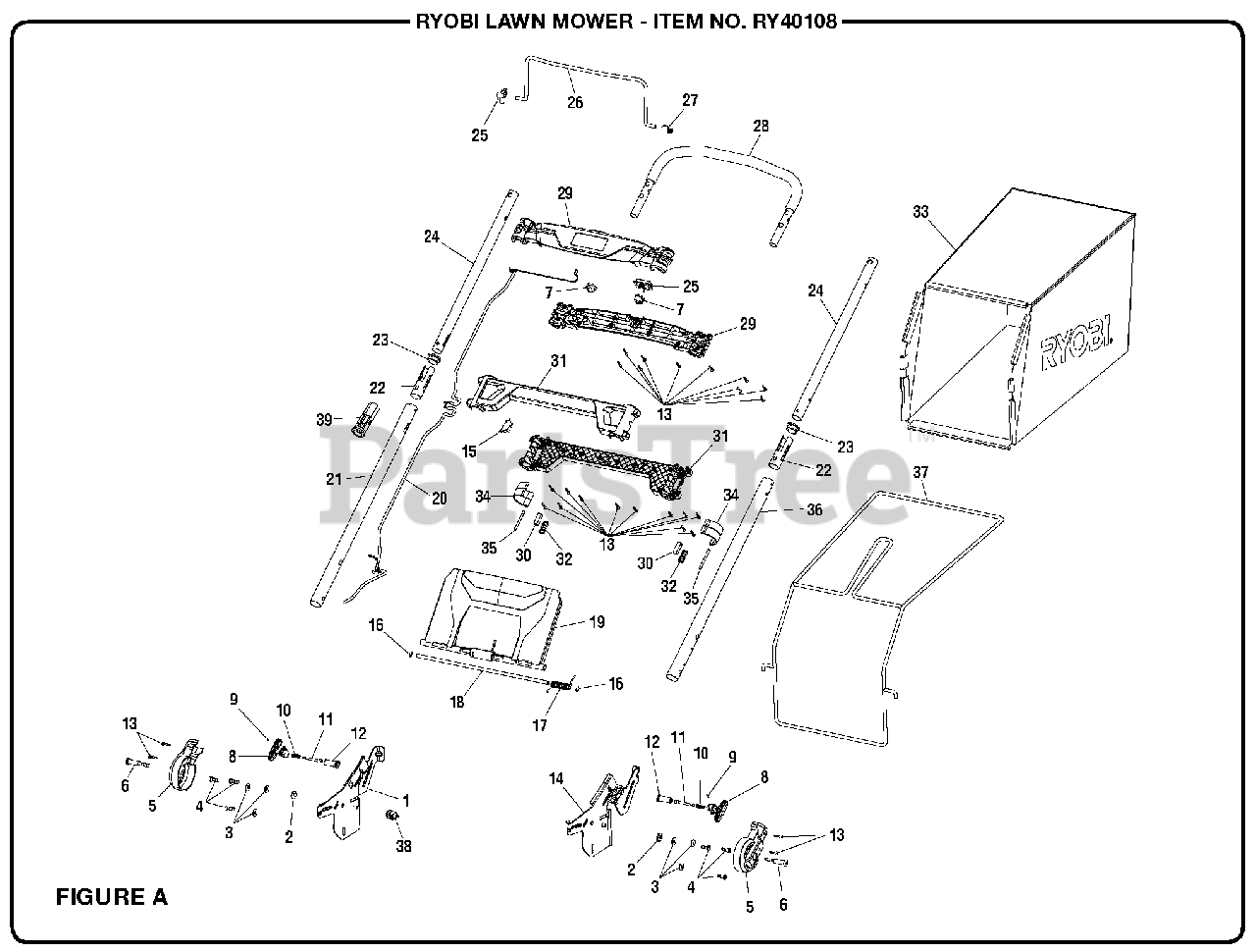

Figure A Parts Diagram

  • Title

1

Homelite 636780001

Height Adjustment Bracket (Right)
(Superseded to 637605002)

$

$

Not available

2

Homelite 636668001

Washer (ID8.5 x OD20.5 x 3t)
(Superseded to 636233001)

$1.49

$

In Stock, Qty 6

0

3

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

4

Homelite 664004001

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)
(Superseded to 664004003)

$1.49

$

In Stock, Qty 14

0

5

Homelite 529260001

Hinge Cover

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 662324001

Shoulder Screw (M8 x 60 mm, T40 Torx Hd.)

$1.99

$

In Stock, only 2 left!

0

7

Homelite 760961002

Switch

$

$

Not available

8

Homelite 528361002

Adjustment Knob (Spring Pin)

$1.49

$

In Stock, Qty 7

0

9

Homelite 673441001

Spring Pin

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 694490001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 673438001

Detent Pin

$1.49

$

In Stock, Qty 5

0

12

Homelite 642586001

Spring Pin Housing

$1.99

$

In Stock, Qty 5

0

13

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 3 left!

0

14

Homelite 636779001

Height Adjustment Bracket (Left)
(Superseded to 636779003)

$13.99

$

Usually ships in 3-7 days

0

15

Homelite 760551002

Switch

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 678880001

E-Ring

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 796800079

Torsion Spring (Rear Door)

$

$

Currently unavailable

18

Homelite 635469001

Rear Door Axle

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 527478001

Rear Discharge Door

$4.49

$

Usually ships in 3-7 days

0

20

Homelite 291556001

Wiring Harness (B.D.C. EU17175D020013-EU17175D020018)

$14.99

$

Usually ships in 3-7 days

0

20

Homelite 291556003

Wiring Harness (A.D.C. EU17175D020013-EU17175D020018)

$10.99

$

Usually ships in 3-7 days

0

21

Homelite 695001001

Lower Handle Tube (Right)

$6.49

$

Usually ships in 3-7 days

0

22

Homelite 529328001

Handle Tube Bushing (Large)
(Superseded to 529328002)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 529327001

Handle Tube Bushing (Small)

$1.49

$

In Stock, only 2 left!

0

24

Homelite 695002001

Upper Handle Tube

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 203910001

Switch Acutator Assembly
(Superseded to 529261002)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 695004001

Bail Handle (Power Lever)

$

$

Not available

27

Homelite 695036001

Torsion Spring

$

$

Not available

28

Homelite 311313001

Upper Handle Assembly

$

$

Not available

29

Homelite 203909001

Upper Panel Assembly

$

$

Not available

30

Homelite 563862001

Rubber Plate (Handle Lock Clip)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 203908001

Lower Panel Assembly

$

$

Not available

32

Homelite 529298001

Block (Handle Lock Clip)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 970698001

Bag

$41.99

$

Usually ships in 3-7 days

0

34

Homelite 529293001

Handle Lock Clip

$1.49

$

In Stock, Qty 5

0

35

Homelite 621895001

Pin (Handle Lock Clip)

$1.49

$

In Stock, Qty 5

0

36

Homelite 695065001

Lower Handle Tube (Left)

$6.99

$

Usually ships in 3-7 days

0

37

Homelite 635385004

Bag Frame
(Superseded to 635385006)

$

$

Not available

38

Homelite 120723001

Switch Kit

$

$

Not available

39

Homelite 533467001

Switch Plug Housing

$1.49

$

Usually ships in 3-7 days

0

Homelite 991000664

Operator's Manual

Note: Not Shown

$

$

Not available
