RY 40109 (107299007) - Ryobi 20" 40V Walk-Behind Mower, Rev 01 (2019-08) FIGURE C Parts Diagram

20" 40V Walk-Behind Mower, Rev 01

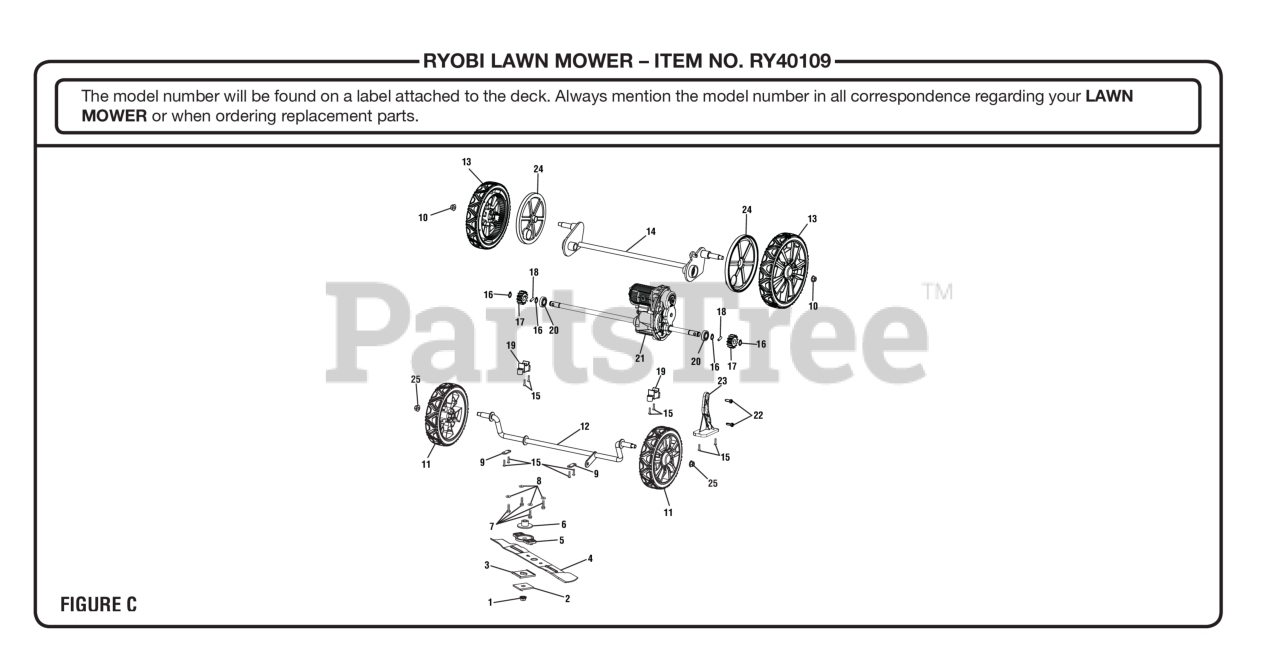

FIGURE C Parts Diagram

  • Title

1

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.49

$

In Stock, only 3 left!

0

2

Homelite 639118001

Metal Blade Retainer

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 526920001

Spacer

$1.49

$

In Stock, only 4 left!

0

4

Homelite 682162001

Bagging Blade

$11.99

$

Usually ships in 3-7 days

0

5

Homelite 526921001

Blade Holder

$1.49

$

In Stock, only 3 left!

0

6

Homelite 613427001

Motor Shaft Bushing

$3.99

$

In Stock, only 1 left!

0

7

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 639116003

Axle Pressure Plate

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 662082001

Lock Nut (3/8-16, Flange)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 330073010

8 in. Wheel Assembly

$12.99

$

Usually ships in 3-7 days

0

12

Homelite 696316001

Front Axle

$13.99

$

Usually ships in 3-7 days

0

13

Homelite 312387003

Rear Wheel Assembly

$

$

Not available

14

Homelite 637788003

Rear Wheel Axle with rotation Plate

$34.99

$

Usually ships in 3-7 days

0

15

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.49

$

In Stock, Qty 6

0

16

Homelite 690698001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 613239001

Drive Gear

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 622068001

Gear Shaft

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 639116004

Mounting Plate

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 682164001

Ball Bearing (OD28.6 x ID12.7 x 8)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 210376001

Transmission Assembly

$215.99

$

Usually ships in 3-7 days

0

22

Homelite 662065001

Screw (T20 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 532557001

Transmission Holder

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 532115001

Wheel Cover

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.49

$

Usually ships in 3-7 days

0
