RY 402011 VNM (108734001) - Ryobi 40V Brushless String Trimmer, Rev 01 (2022-02) General Assembly Parts Diagram

40V Brushless String Trimmer, Rev 01

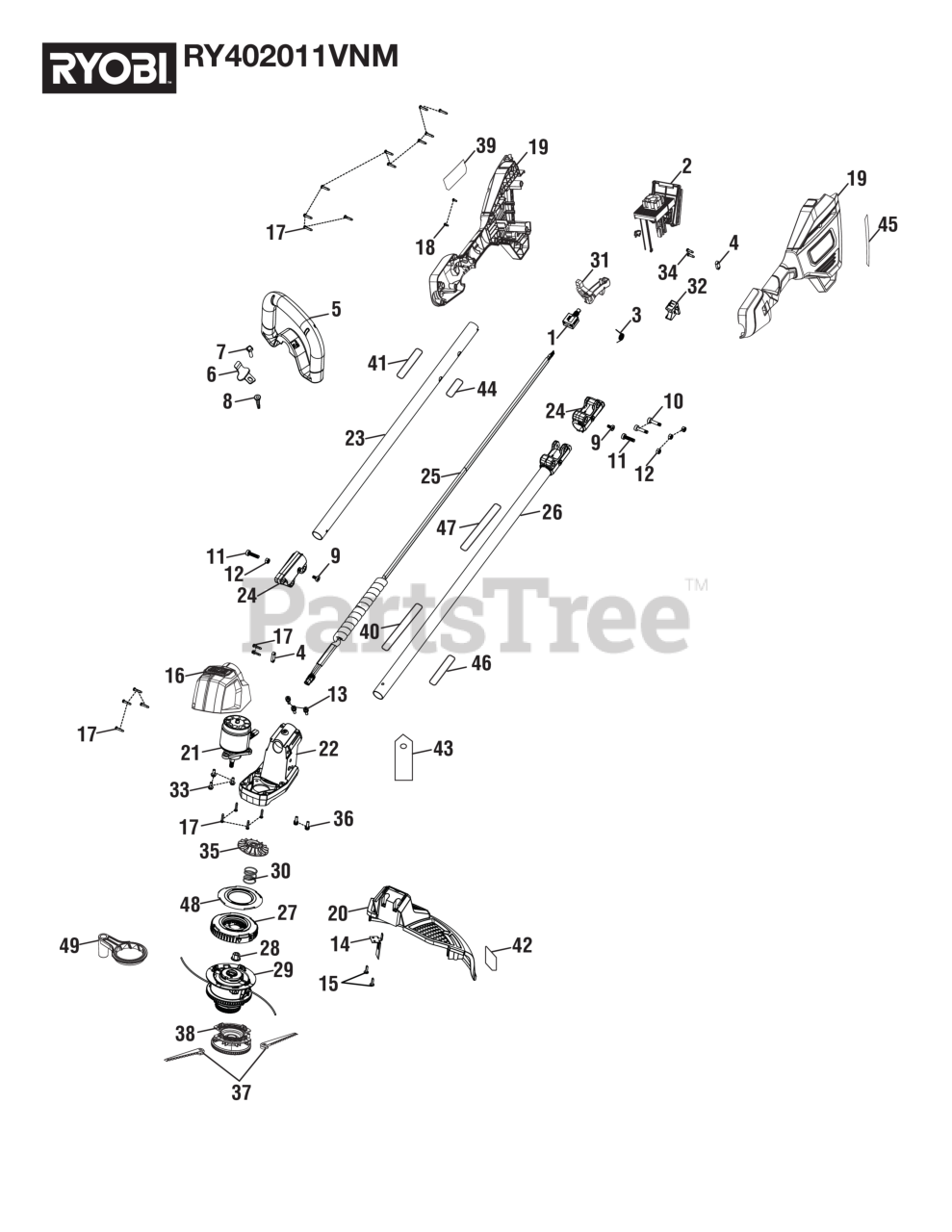

General Assembly Parts Diagram

  • Title

1

Homelite 760777001

Signal Switch

$17.99

$

Usually ships in 3-7 days

0

2

Homelite 205824001

Electric Controller and Switch Assembly

$268.99

$

Usually ships in 3-7 days

0

3

Homelite 694572001

Spring, Torsion, Dia 12.5mm, Music Wire

$2.49

$

In Stock, only 1 left!

0

4

Homelite 513211001

Wire Press Plate

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 308056009

Front Handle Assembly

$26.99

$

In Stock, only 2 left!

0

6

Homelite 639167001

Front Handle Clamp

$3.99

$

Usually ships in 3-7 days

0

7

Homelite 660857001

Bolt (1/4-20 x 1 in., Square Hd.)
(Superseded to PS02435)

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 2 left!

0

9

Homelite 662153001

Screw, M5.0 x 0.8 Torx T25 B, L=12mm

$

$

Not available

10

Homelite 662716002

Screw (M6 x 27.5 mm)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 662151001

Screw, M6.0 X 1 BUH, Torx 25 B, L=25mm

$

$

Not available

12

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

13

Homelite 662158001

Screw W/ Washer, Torx T25X16, M5X0.8,

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 638016003

Line Cut-off Blade

$3.99

$

In Stock, Qty 14

0

15

Homelite 662148001

Screw

$2.49

$

In Stock, only 3 left!

0

16

Homelite 205825001

Motor Housing Assembly

$22.99

$

Usually ships in 3-7 days

0

17

Homelite 661864007

Screw (M4 x 18 mm, T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 660203052

Screw (M3 x 8 mm, Pan. Hd.)

$2.49

$

In Stock, only 2 left!

0

19

Homelite 205826001

Rear Handle Assembly

Note: (Inc. Key Nos. 39 & 45)

$74.99

$

Usually ships in 3-7 days

0

20

Homelite 205827001

Grass Deflector Assembly

Note: (Inc. Key Nos. 14-15 & 42)

$22.99

$

In Stock, only 2 left!

0

21

Homelite 742845002

Motor

$587.99

$

Usually ships in 3-7 days

0

22

Homelite 644584001

Motor Bracket

$87.99

$

Usually ships in 3-7 days

0

23

Homelite 205828001

Upper Boom Assembly

Note: (Inc. Key Nos. 41 & 44)

$144.99

$

Usually ships in 3-7 days

0

24

Homelite 644598001

Coupler (Upper And Lower Boom)

$21.99

$

In Stock, only 2 left!

0

25

Homelite 770425001

Spring Wire

$57.99

$

Usually ships in 3-7 days

0

26

Homelite 205829001

Lower Boom Assembly

Note: (Inc. Key Nos. 40 & 46- 47)

$166.99

$

Usually ships in 3-7 days

0

27

Homelite 205828002

Upper Housing and Locking Assembly

Note: (Inc. Key No. 48)

$30.99

$

In Stock, only 2 left!

0

28

Homelite 662568002

Hex Nut (M8, Left Hand Threads)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 315188002

Lower Housing and Spool Assembly

$32.99

$

Usually ships in 0 days

0

30

Homelite 679958001

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 315841002

Trigger and Lock Out Button Assembly

$10.99

$

In Stock, only 1 left!

0

32

Homelite 539255002

High-Low Speed Switch Trigger

$3.49

$

In Stock, only 1 left!

0

33

Homelite 662052002

Screw, T25, M5X8, Steel, Black ZincePlat

$

$

Not available

34

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$2.49

$

In Stock, Qty 10

0

35

Homelite 644597001

Fan

$21.99

$

In Stock, only 1 left!

0

36

Homelite 663205001

Screw w/Spring Washer (M5 x 15.5 mm)

$2.49

$

In Stock, only 1 left!

0

37

Homelite 537603002

Flail Blade

$2.49

$

In Stock, Qty 8

0

38

Homelite 314795002

Fixed Line and Blade Housing Assembly

$28.99

$

Usually ships in 3-7 days

0

39

Homelite 941263107

Data Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 941263108

Ryobi Whisper Logo Label

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 941263198

Icon Warning 40HP Label

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 941263110

Cutting Width Label

$2.49

$

In Stock, only 1 left!

0

43

Homelite 918013146

Guard Installation Tag

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 941263121

QR Label

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 941263122

WHISPER HEAD Logo Label

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 941013005

Warning Label (French/Spanish)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 941588832

Carbon Fiber Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 941097129

Front Handle Assembly

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 532048003

Crank Handle

$2.49

$

In Stock, only 3 left!

0

Homelite 998000742

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 639850001

Hexagon Key

Note: Not Shown

$

$

Not available
