RY 40301 VNM (108799001) - Ryobi 40V Backpack Sprayer, Rev 01 (2021-10) General Assembly Parts Diagram

40V Backpack Sprayer, Rev 01

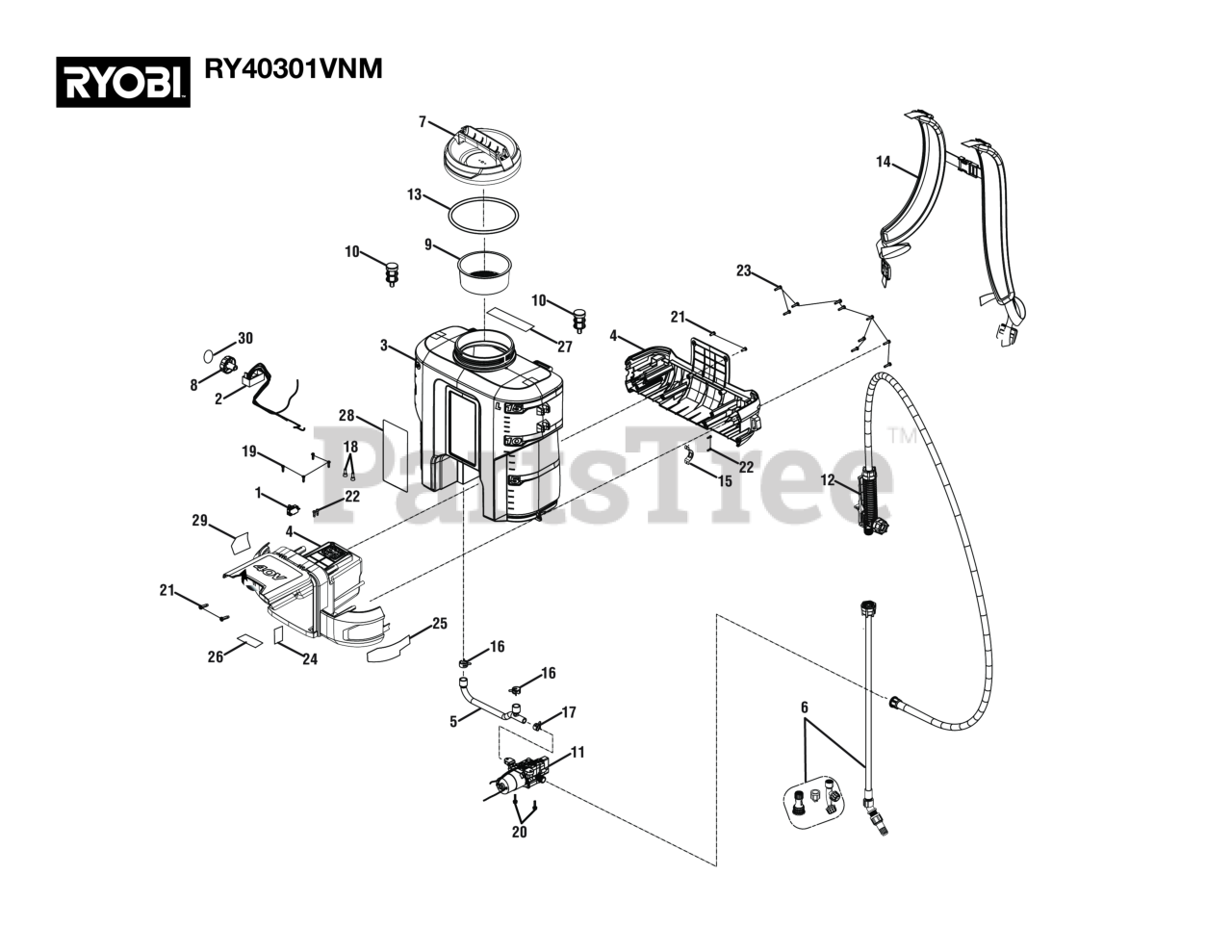

General Assembly Parts Diagram

  • Title

1

Homelite 760746002

Micro Switch

$6.49

$

Usually ships in 3-7 days

0

2

Homelite 280721004

Flow Rate Control

$55.99

$

Usually ships in 3-7 days

0

3

Homelite 318718001

Tank Assembly (Inc. Key Nos. 27-28)

Note: (Inc. Key Nos. 27-28)

$122.99

$

Usually ships in 3-7 days

0

4

Homelite 318719001

Housing Assembly (Inc. Key Nos. 24-26 & 29)

Note: (Inc. Key Nos. 24-26 & 29)

$82.99

$

Usually ships in 3-7 days

0

5

Homelite 566394001

Pickup Tube

$12.99

$

Usually ships in 3-7 days

0

6

Homelite 313969004

Wand and Nozzle Assembly

$22.99

$

In Stock, only 1 left!

0

7

Homelite 317226001

Tank Lid Assembly (Inc. Key No. 11)

$25.99

$

In Stock, only 2 left!

0

8

Homelite 317230001

Adjustable Switch Knob Assembly (Inc. Key No. 19)

Note: (Inc. Key No. 30)

$5.99

$

In Stock, only 2 left!

0

9

Homelite 541716001

Inlet Filter

$

$

Currently unavailable

10

Homelite 316757001

Filter Assembly

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 316620001

Motor and Pump Assembly

$

$

Currently unavailable

12

Homelite 316622001

Handle and Hose Assembly

$76.99

$

In Stock, only 1 left!

0

13

Homelite 566002001

Rubber Gasket

$5.49

$

In Stock, only 2 left!

0

14

Homelite 316455001

Straps

$43.99

$

Usually ships in 3-7 days

0

15

Homelite 659603001

Fastener

$1.99

$

In Stock, Qty 5

0

16

Homelite 659630001

Hose Clamp on Tank

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 659631001

Hose Clamp on Pump

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 790009004

Wire Connector (Closed End)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$2.49

$

In Stock, Qty 10

0

20

Homelite 660968001

Screw w/Washer (M4 x 19 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 660925003

Screw (M4 x 12 mm, T20 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 660230011

Screw (M3 x 10 mm, T10 Torx Hd.)

$

$

Currently unavailable

23

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

In Stock, Qty 5

0

24

Homelite 941263111

Data Label

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 941263112

Warnings Label (FR/SP)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 941263113

QR Code Label

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 941015098

Icon Warning Label

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 941588780

Logo Label

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 941263034

4 Gal. Callout Label

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 941588778

On\Off Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000649

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
