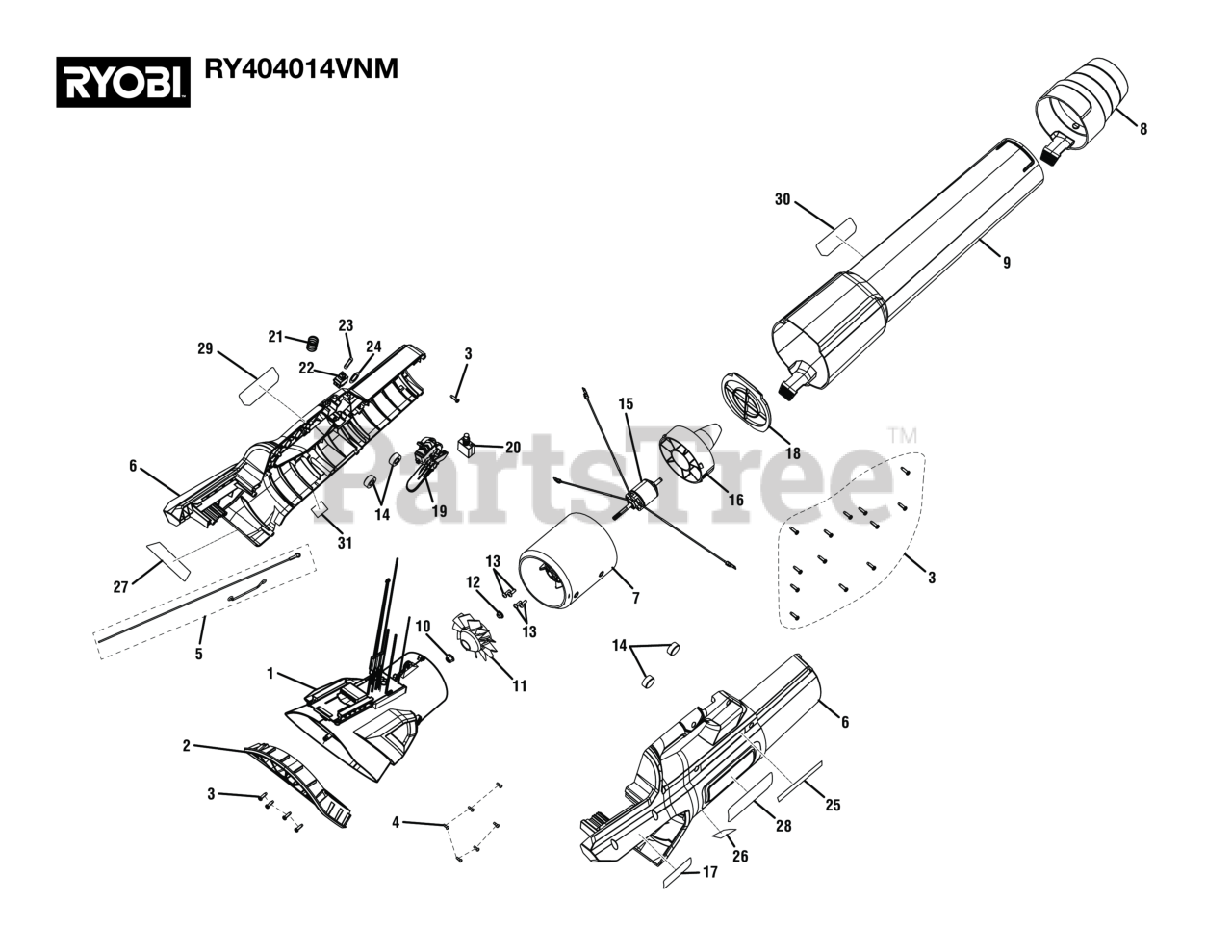

RY 404014 VNM (108726001) - Ryobi 40V Brushless Blower, Rev 03 (2022-01) General Assembly Parts Diagram

40V Brushless Blower, Rev 03

General Assembly Parts Diagram

  • Title

1

Homelite 205650001

Motor Controller and Inlet Bell Assembly

$217.99

$

Usually ships in 3-7 days

0

2

Homelite 543748002

Inlet Guard

$69.99

$

Usually ships in 3-7 days

0

3

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$2.49

$

In Stock, only 3 left!

0

5

Homelite 318193001

Grounding Strap Assembly

$6.49

$

Usually ships in 3-7 days

0

6

Homelite 205649001

Housing Assembly

Note: (Inc. Key Nos. 17, 25-29 & 31)

$64.99

$

Usually ships in 3-7 days

0

7

Homelite 318192001

Stator Assembly

$26.99

$

Usually ships in 3-7 days

0

8

Homelite 205634001

Speed Nozzle Assembly

$30.99

$

Usually ships in 3-7 days

0

9

Homelite 205709001

Blower Tube Assembly (Inc. Key No. 30)

Note: (Inc. Key No. 30)

$16.99

$

In Stock, only 1 left!

0

10

Homelite 678774009

Flange Lock Nut (M6 x 1 mm)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 543752001

Fan

$8.99

$

In Stock, only 2 left!

0

12

Homelite 612854002

Bushing

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 660137001

Screw w/Tooth Washer (M4 x 12 mm, Pan Hd.)

$2.49

$

In Stock, only 1 left!

0

14

Homelite 565463001

Rubber Cap

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 742653004

Motor

$168.99

$

Usually ships in 3-7 days

0

16

Homelite 543754001

Nose Cone

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 941110041

Ingestion Icon Label

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 543756001

Cross-Hairs

$2.49

$

In Stock, only 4 left!

0

19

Homelite 317856001

Trigger and Cruise Control Assembly

$9.99

$

In Stock, only 2 left!

0

20

Homelite 760777001

Signal Switch

$17.99

$

Usually ships in 3-7 days

0

21

Homelite 699363001

Spring

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 760781001

Push Switch

$4.99

$

In Stock, only 3 left!

0

23

Homelite 636095001

Wave Washer

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 635793001

Washer (OD21 x 14 x 1t)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 941110033

Icon Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 941110052

QR Label

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 941110031

WHISPER SERIES Logo Label

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 941110051

Data/Warning Label

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 941110030

RYOBI 40V HP Logo Label

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 940705583

40V HP BRUSHLESS Logo Label

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 941097124

dB Label

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000655

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
