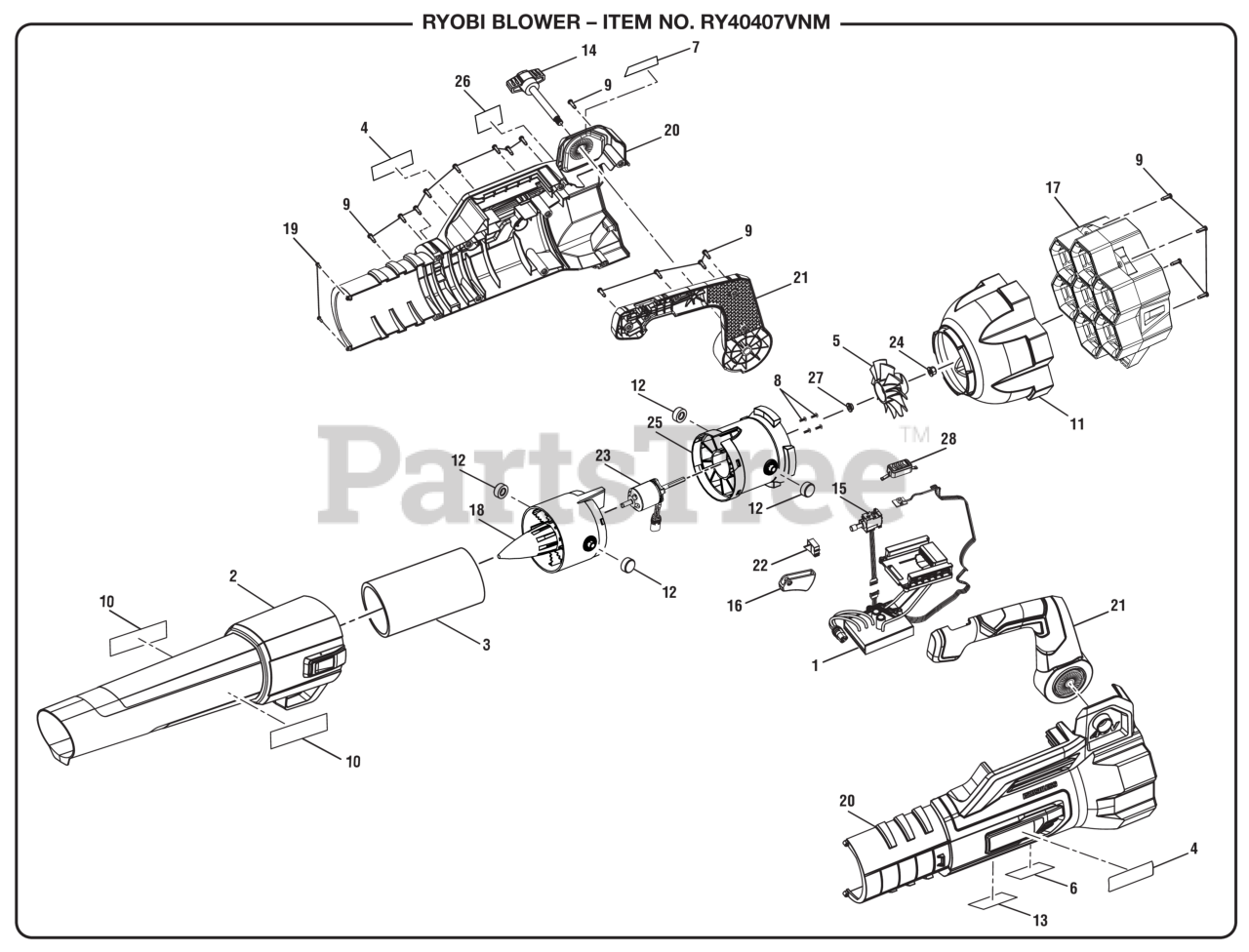

RY 40407 VNM (107000001) - Ryobi 40V Blower, Rev 01 (2019-12) General Assembly Parts Diagram

40V Blower, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 205315001

Motor Controller and Battery Connection Assembly

$110.99

$

Usually ships in 3-7 days

0

2

Homelite 205316001

Blower Tube Assembly (Includes Key No 10)

$14.99

$

Usually ships in 3-7 days

0

3

Homelite 903802001

Sound Dampening Foam

$9.99

$

Usually ships in 3-7 days

0

4

Homelite 940851557

Logo Label

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 539306001

Fan

$4.49

$

In Stock, only 1 left!

0

6

Homelite 940851559

Warning Label (French and Spanish)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 940657333

Warning Icons Label

$1.49

$

Usually ships in 3-7 days

0

8

Homelite T662472001

SCREW, M3.0X0.5-6h PWH PHILIPS B \ L=8MM

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$

$

Not available

10

Homelite 940851558

Whisper Series Label

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 205318001

Inlet Bell Assembly

$11.99

$

Usually ships in 3-7 days

0

12

Homelite 565463001

Rubber Cap

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 941588490

Data Label

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 539320001

Handle Knob

$5.99

$

Usually ships in 3-7 days

0

15

Homelite 760952002

Variable Speed Switch

$8.99

$

Usually ships in 3-7 days

0

16

Homelite 539318001

Trigger

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 205317001

Inlet Cover Assembly

$37.99

$

Usually ships in 3-7 days

0

18

Homelite 539311001

Stator

$9.49

$

Usually ships in 3-7 days

0

19

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 205314001

Housing Assembly (Includes Key Nos 4, 6-7, 13 and 26)

$51.99

$

Usually ships in 3-7 days

0

21

Homelite 205313001

Handle Assembly

$15.99

$

Usually ships in 3-7 days

0

22

Homelite 539319001

Switch Cap

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 742653001

Motor

$117.99

$

Usually ships in 3-7 days

0

24

Homelite 678774009

Flange Lock Nut (M6 x 1 mm)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 539315001

Motor Mount

$6.99

$

Usually ships in 3-7 days

0

26

Homelite 940657334

Warning and Warning Icons Label (English)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 612854002

Bushing

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 539314001

Turbo Button

$1.49

$

Usually ships in 3-7 days

0

Homelite 998000001

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
