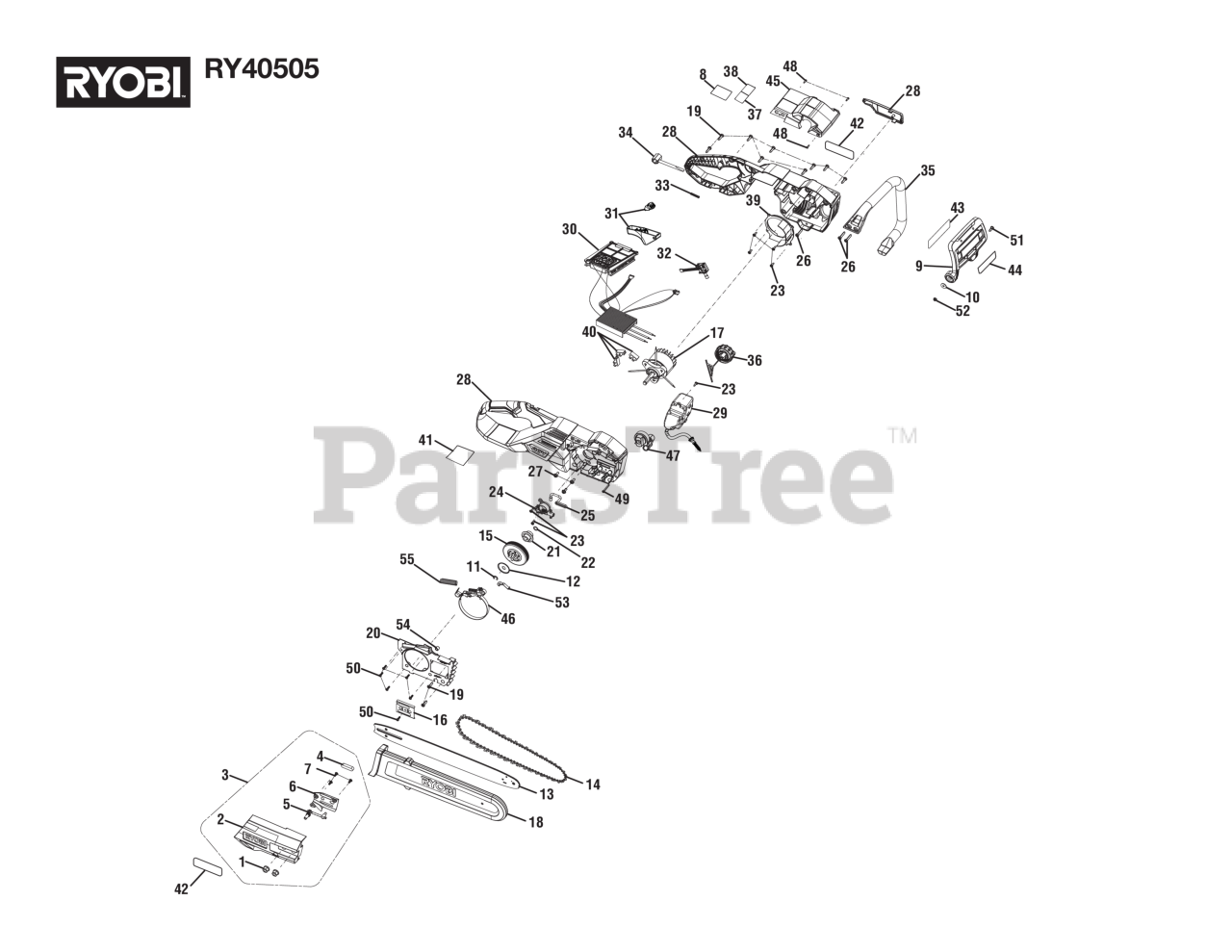

RY 40505 (107473001) - Ryobi 16" 40V Chainsaw, Rev 02 (2020-11) General Assembly Parts Diagram

16" 40V Chainsaw, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 678339003

Hex Nut (5/16-18 Flange)

$2.49

$

In Stock, only 3 left!

0

2

Homelite 205479001

Bar Cover

Note: (Inc. Key No. 42)

$16.99

$

Usually ships in 3-7 days

0

3

Homelite 205480001

Bar Cover Assembly

Note: (Inc. Key Nos. 1-2, 4-7 & 42)

$31.99

$

Usually ships in 3-7 days

0

4

Homelite 563443001

Rubber Plate

Note: (Inc. Key Nos. 1-2, 4-7 & 42)

$2.49

$

In Stock, only 3 left!

0

5

Homelite 205296001

Driving Adjustment Gear Assembly

$3.99

$

In Stock, only 1 left!

0

6

Homelite 658991001

Guide Plate

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 660922001

Screw (M4 x 10 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

8

Homelite 941851382

Warning Label (Spanish)

$

$

Not available

9

Homelite 205481001

Guard Assembly

Note: (Inc. Key Nos. 43-44)

$22.99

$

Usually ships in 3-7 days

0

10

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 636159001

E-Ring

$2.49

$

In Stock, only 2 left!

0

12

Homelite 635367001

Washer (Special)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 315962001

Bar (16 in.)

$45.99

$

Usually ships in 3-7 days

0

14

Homelite 682006005

Chain (16 in.)

$43.99

$

Usually ships in 3-7 days

0

15

Homelite 612309002

Sprocket w/ Drum

$

$

Not available

16

Homelite 658993001

Guide Bar Plate Assembly

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 742666001

Motor

$413.99

$

Usually ships in 3-7 days

0

18

Homelite 580768001

Scabbard

$10.99

$

Usually ships in 3-7 days

0

19

Homelite 662051002

Screw, Torx T25, M5, Low Carbon Steel,

$

$

Not available

20

Homelite 539604001

Cover Housing

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 537485001

Oil Pump Drive

$2.99

$

In Stock, only 4 left!

0

22

Homelite 658198001

Washer

$2.49

$

In Stock, Qty 10

0

23

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

24

Homelite 309516002

Oil Pump

$12.99

$

In Stock, only 1 left!

0

25

Homelite 565069001

Oil Output Tube

$3.99

$

In Stock, only 3 left!

0

26

Homelite 662053002

Screw (M5 x 25 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 662052002

Screw, T25, M5X8, Steel, Black ZincePlat

$

$

Not available

28

Homelite 205482001

Housing Assembly

Note: (Inc. Key Nos. 41-42)

$

$

Currently unavailable

29

Homelite 205300001

Oil Tank Assembly

$16.99

$

Usually ships in 3-7 days

0

30

Homelite 315960001

Motor Controller, Switch & Battery Connector Assembly

$247.99

$

Usually ships in 3-7 days

0

31

Homelite 205297001

Switch Trigger & Lock Out Button Assembly

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 760652001

Switch

$20.99

$

Usually ships in 3-7 days

0

33

Homelite 694143001

Compression Spring (Trigger Lock)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 612330001

Wrench

$6.99

$

Usually ships in 3-7 days

0

35

Homelite 539603001

Front Handle

$14.99

$

Usually ships in 3-7 days

0

36

Homelite 306888001

Oil Tank Cap

$13.99

$

Usually ships in 3-7 days

0

37

Homelite 941588811

Icon Label (Right)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 941588810

Icon Label (Left)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 539608001

Volute Cover

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 900876003

Terminal Block w/Screw

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 941588555

Data Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 941588805

HP Logo Label

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 941588809

Warning Label

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 941588806

40V Brushless Logo Label

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 205483001

Top Cover Assembly

Note: (Inc. Key Nos. 8 & 37-38)

$10.99

$

Usually ships in 0 days

0

46

Homelite 205298001

Brake Band Assembly

$4.49

$

Usually ships in 3-7 days

0

47

Homelite 205299001

Chain Brake Assembly

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 660005006

Screw (M3 x 10 mm)

$2.49

$

In Stock, Qty 5

0

49

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$2.49

$

In Stock, only 2 left!

0

50

Homelite 662083002

Screw, T20, M4-18X12, Low Carbon Steel,
(Superseded to 662083001)

$2.49

$

In Stock, Qty 10

0

51

Homelite 662113001

Screw (M5 x 15 mm, T25 Torx Hd.)

$

$

Currently unavailable

52

Homelite 670682002

Nut

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 678061001

Spring

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 678602001

Hand Guard Insert

$2.49

$

In Stock, only 4 left!

0

55

Homelite 694415001

Spring

$2.49

$

Usually ships in 0 days

0

Homelite 995000982

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
