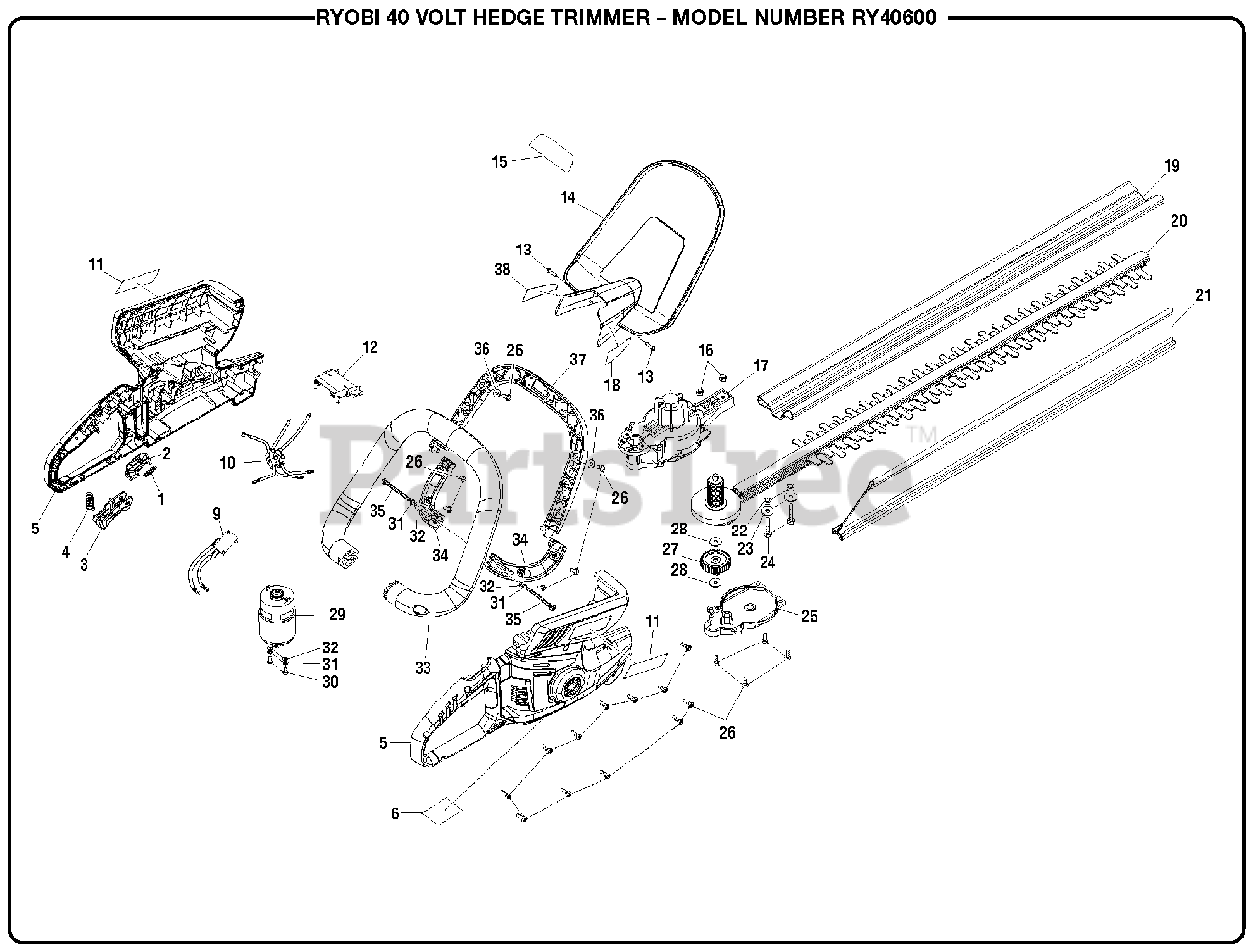

RY 40600 - Ryobi 40V Hedge Trimmer General Assembly Parts Diagram

40V Hedge Trimmer

General Assembly Parts Diagram

  • Title

1

Homelite 099968002001

Compression Spring

$

$

Not available

2

Homelite 099968002002

Lock Off Button

$

$

Not available

3

Homelite 099968002003

Trigger

$

$

Not available

4

Homelite 099968002004

Compression Spring

$

$

Not available

5

Homelite 31111650G

Housing Assembly

$

$

Not available

6

Homelite 941588019

Data Label

$

$

Not available

9

Homelite 099968002009

Micro Switch

$

$

Not available

10

Homelite 099968002010

Wire Terminal Assembly

$

$

Not available

11

Homelite 099968002012

Logo Label

$

$

Not available

12

Homelite 099968002013

Battery Connector Assembly

$

$

Not available

13

Homelite 099968002014

Screw (M2.9 x 12 mm)

$

$

Not available

14

Homelite 31112650G

Guard

$

$

Not available

15

Homelite 941657002

Warning Label

$

$

Not available

16

Homelite 32901639G

Hex Nut (M5)

$

$

Not available

17

Homelite 099968002018

Gear Box Assembly

$

$

Not available

18

Homelite 940705002

Lithium Label (Right)

$

$

Not available

19

Homelite 099968002020

Blade Shield

$

$

Not available

20

Homelite 31113650G

Blade, Cam, and Clutch Assembly

$

$

Not available

21

Homelite 34110454-1G

Debris Remover

$

$

Not available

22

Homelite 33311454G

Spacer

$

$

Not available

23

Homelite 33321442G

Washer (OD16 x ID5.2 x 1.5t)

$

$

Not available

24

Homelite 33202639G

Screw (M5 x 30 mm)

$

$

Not available

25

Homelite 34108454G

Gear Box Cover

$

$

Not available

26

Homelite 099968002026

Screw (M4 x 12 mm)

$

$

Not available

27

Homelite 33904454G

Dual Gear

$

$

Not available

28

Homelite 3330111G

Washer (ID6.2 x OD14 x 0.5t)

$

$

Not available

29

Homelite 099968002029

Motor and Pinion Assembly

$

$

Not available

30

Homelite 099968002030

Screw (M4 x 10 mm)
(Superseded to 661861001)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 099968002031

Spring Washer (M4)
(Superseded to 661861001)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 099968002032

Flat Washer (M4)
(Superseded to 661861001)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 099968002033

Auxiliary Handle

$

$

Not available

34

Homelite 099968002034

Lower Auxiliary Handle Cover Assembly

$

$

Not available

35

Homelite 099968002035

Screw (M4 x 50 mm)

$

$

Not available

36

Homelite 33901650G

Spacer

$

$

Not available

37

Homelite 099968002037

Upper Auxiliary Handle Cover

$

$

Not available

38

Homelite 940705003

Lithium Label (Left)

$

$

Not available

Homelite 988000817

Operator's Manual

Note: Not Shown

$

$

Not available
