RY 40601 - Ryobi 40V Hedge Trimmer General Assembly Parts Diagram

40V Hedge Trimmer

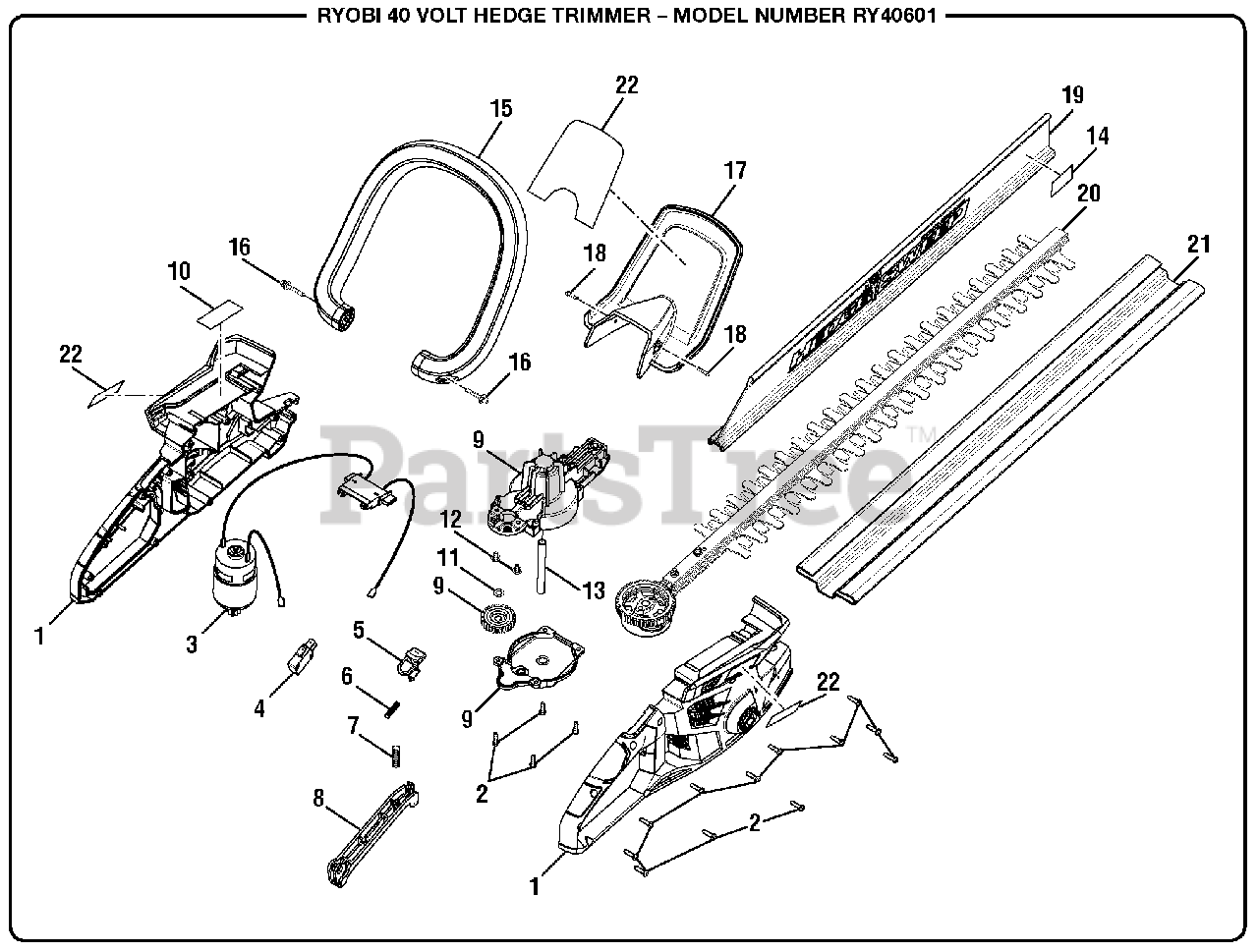

General Assembly Parts Diagram

  • Title

1

Homelite 129312001

Housing Assembly

$

$

Not available

2

Homelite 661817001

Screw (M4 x 14 mm)

$2.49

$

In Stock, Qty 10

0

3

Homelite 129313001

Motor and Contact Plate Assembly

$

$

Not available

4

Homelite 760947001

Switch Assembly

$

$

Not available

5

Homelite 525605001

Lock Off Button

$

$

Not available

6

Homelite 679055007

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 679055008

Compression Spring

$2.49

$

In Stock, Qty 9

0

8

Homelite 525604001

Trigger

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 312032001

Gear, Gear Case and Gear Cover Assembly

$

$

Not available

10

Homelite 941588027

Data Label

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 670914001

Washer (ID6.2 x OD11 x 0.3t)

$

$

Currently unavailable

12

Homelite 661861001

Screw (M4 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 620995001

Output Shaft

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 941769001

Warning Label

$

$

Not available

15

Homelite 311130001

Front Handle Assembly

Note: (Inc. Key No. 16)

$14.99

$

In Stock, only 2 left!

0

16

Homelite 660137007

Screw w/Washer (M3 x 12 mm)
(Superseded to 660137010)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 525603001

Safety Guard

$

$

Not available

18

Homelite 660203087

Screw (M3 x 12 mm)

$

$

Not available

19

Homelite 525609001

Hedge Sweep

$6.99

$

Usually ships in 3-7 days

0

20

Homelite 129314001

Blade Assembly

$

$

Not available

21

Homelite 525406001

Scabbard

$8.99

$

Usually ships in 3-7 days

0

22

Homelite 940657094

Icon Label

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 941770001

Logo Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 130186006

Battery Pack
(Superseded to 130186084)

Note: Not Shown

$

$

Not available

Homelite 140181001

Charger
(Superseded to 140199017)

$181.99

$

Usually ships in 3-7 days

0

Homelite 990000277

Operator's Manual

$

$

Not available
