RY 40603 VNM (107443101) - Ryobi 40V Pole Hedge Trimmer, Rev 07 (2022-11) HEDGE TRIMMER ATTACHMENT Parts Diagram

40V Pole Hedge Trimmer, Rev 07

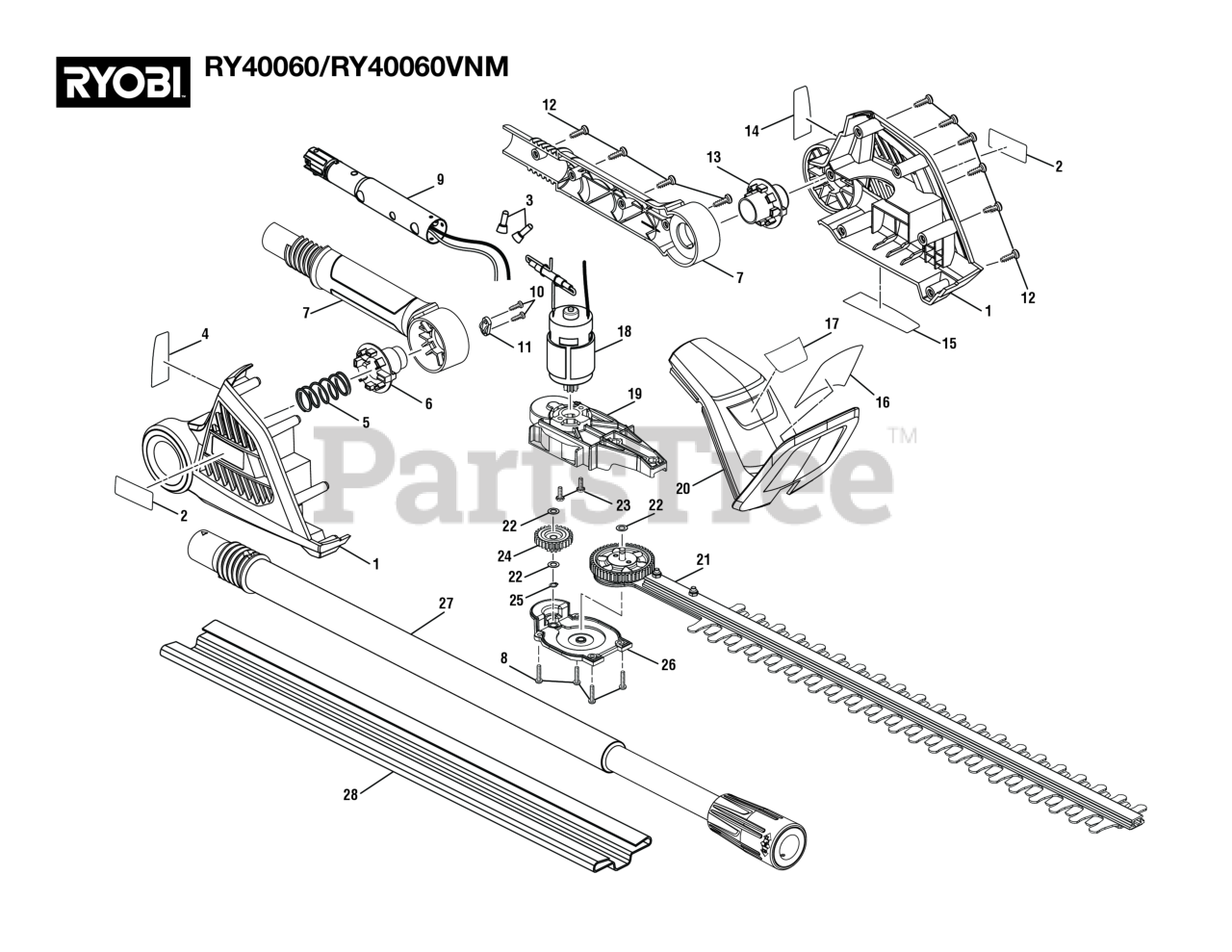

HEDGE TRIMMER ATTACHMENT Parts Diagram

  • Title

1

Homelite 205443003

Motor Housing Assembly

Note: (Inc. Key Nos. 2, 4 & 14-15, RY40060VNM)

$

$

Currently unavailable

2

Homelite 940114179

Logo Label

$

$

Currently unavailable

3

Homelite 790009004

Wire Connector (Closed End)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 940657330

Warning Icons Label (Left)

$

$

Currently unavailable

5

Homelite 679417001

Compression Spring (Pivot Button)

$

$

Not available

6

Homelite 525446001

Pivot Button (Right)

$

$

Not available

7

Homelite 315753001

Pole Housing Assembly

$4.99

$

Usually ships in 3-7 days

0

8

Homelite 660208052

Screw (M4 x 16 mm, Pan Hd.)
(Superseded to 089041033087)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 315754001

Lower Boom Assembly

$12.99

$

Usually ships in 3-7 days

0

10

Homelite 661824001

ST SCREW BH BM X 10

$

$

Not available

11

Homelite 523001003

Cord Clamp

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$

$

Not available

13

Homelite 525447001

Pivot Button (Left)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 940657331

Warning Icons Label (Right)

$

$

Currently unavailable

15

Homelite 941588644

Data Label

Note: (RY40060VNM)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 941657021

Danger Warning Label

$

$

Currently unavailable

17

Homelite 941588461

40V Lithium-Ion Label

$

$

Currently unavailable

18

Homelite 311078006

Motor Assembly

$40.99

$

Usually ships in 3-7 days

0

19

Homelite 311065001

Gear Box Base

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 317479001

Motor Cover and Guard Assembly

Note: (Inc. Key Nos. 16-17)

$6.99

$

Usually ships in 3-7 days

0

21

Homelite 311185001

Blade Assembly

$53.99

$

Usually ships in 3-7 days

0

22

Homelite 670914001

Washer (M6, ID6.2 x 11OD x 0.3t)

$

$

Currently unavailable

23

Homelite 660137001

Screw w/Tooth Washer (M4 x 12 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 610114001

Center Gear

$3.49

$

In Stock, only 1 left!

0

25

Homelite 670704001

RETAINING RING (EXTERNAL)

$1.49

$

In Stock, only 2 left!

0

26

Homelite 311066001

Gear Box Cover Assembly

$3.99

$

In Stock, only 1 left!

0

27

Homelite 311081001

Extended Boom Assembly

$29.99

$

In Stock, Qty 5

0

28

Homelite 525406003

Scabbard

$

$

Not available
