RY 40702 US (107738001) - Ryobi Rear-Tine Tiller, Rev 01 (2022-04) General Assembly Parts Diagram

Rear-Tine Tiller, Rev 01

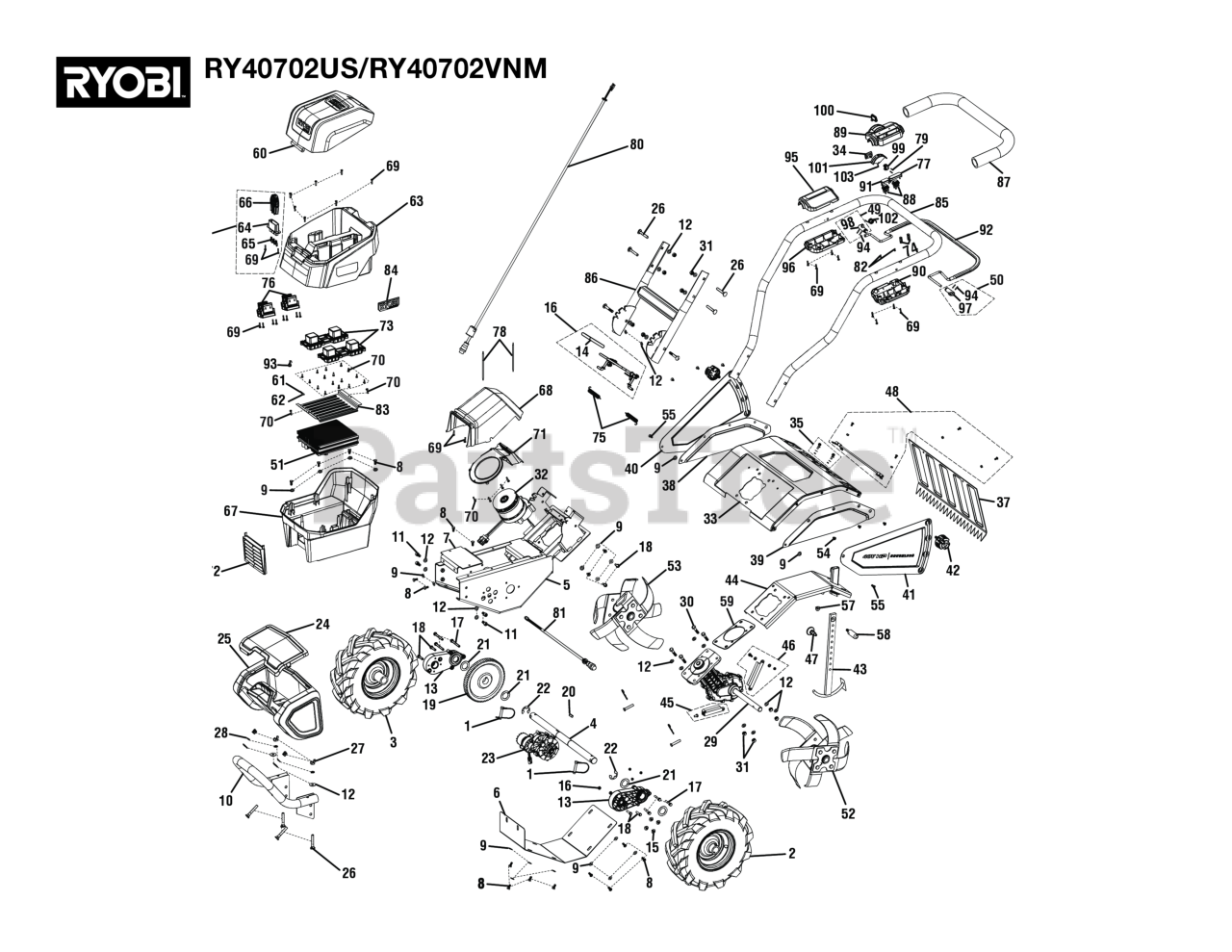

General Assembly Parts Diagram

  • Title

1

Homelite 674460001

Spring Pin

$11.99

$

Usually ships in 3-7 days

0

2

Homelite 317954003

14 in. Pneumatic Tire (Left)

$237.99

$

Usually ships in 3-7 days

0

3

Homelite 317954004

14 in. Pneumatic Tire (Right)

$237.99

$

Usually ships in 3-7 days

0

4

Homelite 623007001

Tiller Wheel Shaft

$154.99

$

Usually ships in 3-7 days

0

5

Homelite 683114001

Tiller Chassis Assembly

$469.99

$

Usually ships in 3-7 days

0

6

Homelite 656520001

Tiller Skid Plate

$71.99

$

Usually ships in 3-7 days

0

7

Homelite 656525001

Tiller Top Front Plate

$29.99

$

Usually ships in 3-7 days

0

8

Homelite 660481005

Screw (M6 x 14 mm)

$

$

Not available

9

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 698836002

Pull Bar

$69.99

$

Usually ships in 3-7 days

0

11

Homelite 660169013

Screw (M8 x 20 mm, Hex. Soc. Hd.)

$

$

Currently unavailable

12

Homelite 639219001

Washer (ID8 x OD16 x 1t)

$

$

Not available

13

Homelite 683124001

SP Output to Axle Housing w/Axle Bushing

$

$

Currently unavailable

14

Homelite 566510001

Height Adjust Handle

$5.99

$

Usually ships in 3-7 days

0

15

Homelite 662199001

Screw w/Washer (M4-18 x 10 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 205992001

Height Adjustment Assembly

$42.99

$

Usually ships in 3-7 days

0

17

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$2.49

$

In Stock, Qty 9

0

18

Homelite 660975014

Bolt (M6 x 25 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 615300001

Big Output Gear

$240.99

$

Usually ships in 3-7 days

0

20

Homelite 674401001

Key

$17.99

$

Usually ships in 3-7 days

0

21

Homelite 692019001

Washer (OD1.031 x ID1.57 x 0.60t)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 656352001

E Ring

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 318935001

Gear Box Bushing Assembly

$200.99

$

Usually ships in 3-7 days

0

24

Homelite 545500006

Sand Ballast Lid

$6.99

$

Usually ships in 3-7 days

0

25

Homelite 545359002

Counterweight Housing

$62.99

$

Usually ships in 3-7 days

0

26

Homelite 661527001

Carriage Bolt (M8 x 60 mm)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 678034003

Wing Nut (M8 x 5.33 mm)

$5.49

$

Usually ships in 3-7 days

0

28

Homelite 680754003

Spring Washer (OD14 x ID8.2 x 1.6t)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 220782001

Gear Box Assembly

$559.99

$

Usually ships in 3-7 days

0

30

Homelite 660910004

Screw (M8 x 35 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 678067001

Lock Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 742851001

Motor

$681.99

$

Usually ships in 0 days

0

33

Homelite 318727001

Upper Tine Housing

$190.99

$

Usually ships in 3-7 days

0

34

Homelite 673924001

Dial Lever Insert

$2.49

$

In Stock, Qty 5

0

35

Homelite 205993001

Tine Housing Hardware

$8.99

$

Usually ships in 3-7 days

0

36

Homelite 311280005

Start Key Assembly

$19.99

$

Usually ships in 3-7 days

0

37

Homelite 656558001

Rear Dirt Flap

$85.99

$

Usually ships in 3-7 days

0

38

Homelite 659993001

Fender Side Tine

$42.99

$

Usually ships in 3-7 days

0

39

Homelite 656527001

Lower Tine Housing (Left Side)

$42.99

$

Usually ships in 3-7 days

0

40

Homelite 659001003

Left and Right Side Panels

$58.99

$

Usually ships in 3-7 days

0

41

Homelite 656528001

Upper Tine Housing (Left Side)

$58.99

$

Usually ships in 3-7 days

0

42

Homelite 545500015

Knob

$4.49

$

Usually ships in 3-7 days

0

43

Homelite 318535001

Depth Adjustment Bracket Assembly

$59.99

$

Usually ships in 3-7 days

0

44

Homelite 656529001

Rear Subframe

$141.99

$

Usually ships in 3-7 days

0

45

Homelite 656551001

Lower Gear Box Support

$

$

Currently unavailable

46

Homelite 656557001

Subframe Brace

$

$

Currently unavailable

47

Homelite 308910010

Handle Lock Assembly

$

$

Not available

48

Homelite 318729001

Hinge Shaft Assembly

$

$

Currently unavailable

49

Homelite 205994001

Right Actuator Assembly

$13.99

$

Usually ships in 3-7 days

0

50

Homelite 205995001

Left Actuator Assembly

$15.99

$

Usually ships in 3-7 days

0

51

Homelite 281335069

Circuit Board Assembly

$1123.99

$

Usually ships in 3-7 days

0

52

Homelite 682648001

Tine Blade Assembly (Left)

$272.99

$

Usually ships in 3-7 days

0

53

Homelite 682649001

Tine Blade Assembly (Right)

$272.99

$

Usually ships in 3-7 days

0

54

Homelite 663210001

Screw (M6 x 10 mm, T25 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 663210002

Screw (M6 x 16 mm, T25 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 663209001

Screw (M8 x 30 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 662974001

Flange Nut (M8)

$

$

Not available

58

Homelite 623059001

Drag Stake Handle

$11.99

$

Usually ships in 3-7 days

0

59

Homelite 566602001

Rubber Plug for Gear Box

$3.99

$

Usually ships in 3-7 days

0

60

Homelite 545365001

Battery Cover

$33.99

$

Usually ships in 3-7 days

0

61

Homelite 679073001

Compression Spring

$2.49

$

In Stock, only 1 left!

0

62

Homelite 621628001

Battery Door Axle

$2.49

$

In Stock, only 3 left!

0

63

Homelite 545499002

Battery Bucket

$63.99

$

Usually ships in 3-7 days

0

64

Homelite 526912002

Key Connector Base

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 639178002

Female Terminal

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 311280006

Key Connector Base Assembly

$10.99

$

Usually ships in 3-7 days

0

67

Homelite 545500002

Battery Base

$40.99

$

Usually ships in 3-7 days

0

68

Homelite 545500003

Tiller Motor Cover

$35.99

$

Usually ships in 3-7 days

0

69

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

In Stock, Qty 5

0

70

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

71

Homelite 545500004

Turbine Cover

$8.49

$

Usually ships in 3-7 days

0

72

Homelite 545500005

Vent Area

$4.49

$

Usually ships in 3-7 days

0

73

Homelite 205996001

Battery Ejector Assembly

$36.99

$

Usually ships in 3-7 days

0

74

Homelite 679002002

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 683231001

Custom Spring

$2.49

$

Usually ships in 3-7 days

0

76

Homelite 205997001

Battery Contact Holder Assembly

$

$

Currently unavailable

77

Homelite 545500013

Button Cover

$2.49

$

Usually ships in 3-7 days

0

78

Homelite 770458001

Wire

$2.49

$

Usually ships in 3-7 days

0

79

Homelite 674447001

Pin for Switch

$2.49

$

Usually ships in 3-7 days

0

80

Homelite 770457001

Wire

$40.99

$

Usually ships in 3-7 days

0

81

Homelite 770457003

Wire Keep With Machine

$45.99

$

Usually ships in 3-7 days

0

82

Homelite 660203073

SCREW, CH M3 PH B\L=6MM

$0.94

$

Usually ships in 3-7 days

0

83

Homelite 656561001

Cooling Cover

$20.99

$

Usually ships in 3-7 days

0

84

Homelite 566599001

RYOBI Logo Badge

$8.49

$

Usually ships in 3-7 days

0

85

Homelite 318732001

Upper Handle Tube Assembly

Note: (Inc. Key No. 87)

$496.99

$

Usually ships in 3-7 days

0

86

Homelite 318731001

Lower Handle Tubes

$114.99

$

Usually ships in 3-7 days

0

87

Homelite 566509001

Handle Grip

$41.99

$

Usually ships in 3-7 days

0

88

Homelite 760653001

Center Switch

$12.99

$

Usually ships in 3-7 days

0

89

Homelite 545623001

Left Control Pod (Top)

$

$

Currently unavailable

90

Homelite 545624001

Left Control Pod (Bottom)

$

$

Currently unavailable

91

Homelite 545500009

Switch Button Cover

$2.49

$

Usually ships in 3-7 days

0

92

Homelite 683094001

Start Trigger

$46.99

$

Usually ships in 3-7 days

0

93

Homelite 679074006

Battery Door Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

94

Homelite 674290002

Spring Pin

$2.49

$

Usually ships in 3-7 days

0

95

Homelite 545625001

Right Control Pod Top (Top)

$

$

Currently unavailable

96

Homelite 545626001

Right Control Pod (Bottom)

$

$

Currently unavailable

97

Homelite 545545001

Left Actuator

$2.49

$

Usually ships in 3-7 days

0

98

Homelite 545546001

Right Actuator

$2.49

$

Usually ships in 3-7 days

0

99

Homelite 760595004

Micro Switch

$3.49

$

Usually ships in 0 days

0

100

Homelite 543812001

Speed Control Paddle (Top)

$2.49

$

In Stock, only 4 left!

0

101

Homelite 543917001

Speed Control Paddle (Bottom)

$2.49

$

In Stock, only 4 left!

0

102

Homelite 683081001

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

103

Homelite 660203002

Screw (M x 12 mm, Pan Hd.)

$

$

Not available

Homelite 998000881

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
