RY 40703 VNM (108750001) - Ryobi Front-Tine Tiller, Rev 02 (2022-09) General Assembly Parts Diagram

Front-Tine Tiller, Rev 02

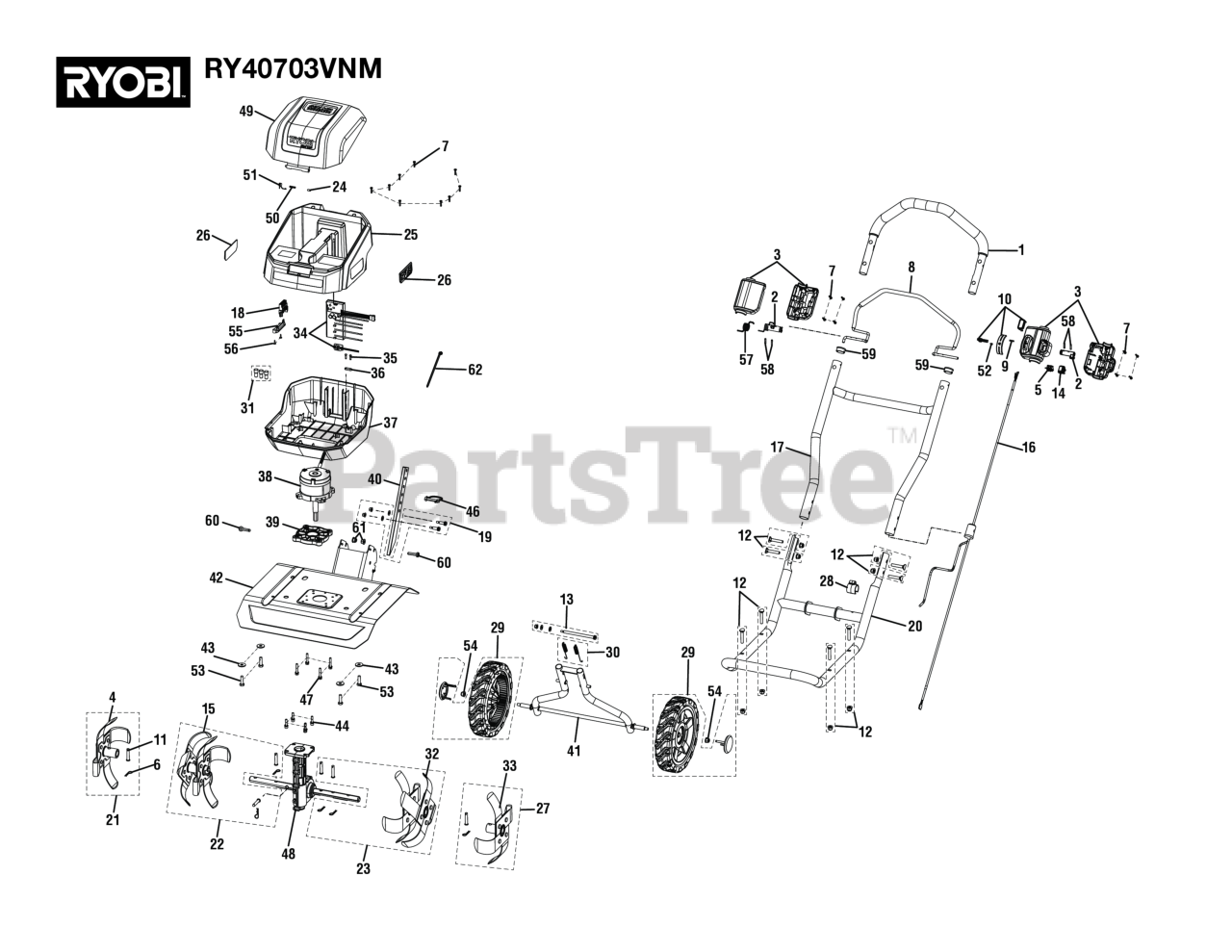

General Assembly Parts Diagram

  • Title

1

Homelite 318621001

Foam and Upper Handle Assembly

$67.99

$

Usually ships in 3-7 days

0

2

Homelite 205981001

Tine Blade Assemby (Outer Right)

Note: (Inc. Key Nos. 57-58)

$10.99

$

Usually ships in 3-7 days

0

3

Homelite 205980001

Tine Blade Assembly (Inner Right)

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 682632001

Tine Blade Assembly (Outer Right)

$97.99

$

Usually ships in 3-7 days

0

5

Homelite 205983001

Bail Switch

$11.99

$

Usually ships in 0 days

0

6

Homelite 683064001

Cotter Pin

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$2.49

$

In Stock, Qty 5

0

8

Homelite 683058001

Trigger

$38.99

$

Usually ships in 3-7 days

0

9

Homelite 673924001

Dial Lever Insert

$2.49

$

In Stock, Qty 5

0

10

Homelite 205982001

Tine Blade Assembly (Outer Left)

$9.99

$

Usually ships in 3-7 days

0

11

Homelite 674407001

Pin

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 205987001

Handlebar Bolt and Nut Assembly

$6.99

$

Usually ships in 3-7 days

0

13

Homelite 205984001

Pivot Bolt Assembly

$11.99

$

Usually ships in 3-7 days

0

14

Homelite 760653001

Center Switch

$12.99

$

Usually ships in 3-7 days

0

15

Homelite 682630001

Tine Blade (Inner Right)

$186.99

$

Usually ships in 3-7 days

0

16

Homelite 292417001

Main Wire Assembly

$24.99

$

Usually ships in 3-7 days

0

17

Homelite 683049001

Middle Tube

$75.99

$

Usually ships in 3-7 days

0

18

Homelite 205978001

Battery Contact Holder Assembly

$13.99

$

Usually ships in 3-7 days

0

19

Homelite 205979001

Drag Stake Bolt Assembly

$10.99

$

Usually ships in 3-7 days

0

20

Homelite 683048001

Lower Tube

$99.99

$

Usually ships in 3-7 days

0

21

Homelite 205991001

Bail Switch

Note: (Outer Right, Inc. Key Nos. 4, 6 & 11)

$98.99

$

Usually ships in 3-7 days

0

22

Homelite 205989001

Right Actuator Assembly

Note: (Inner Right, Inc. Key Nos. 6, 11 & 15)

$182.99

$

Usually ships in 3-7 days

0

23

Homelite 205988001

Tine Blade Assembly

Note: (Inner Left, Inc. Key Nos. 6, 11 & 32)

$182.99

$

Usually ships in 3-7 days

0

24

Homelite 621628001

Battery Door Axle

$2.49

$

In Stock, only 3 left!

0

25

Homelite 545499001

Battery Bucket

$50.99

$

Usually ships in 3-7 days

0

26

Homelite 566599001

RYOBI Logo Badge

$8.49

$

Usually ships in 3-7 days

0

27

Homelite 205990001

Left Actuator Assembly

Note: (Outer Left, Inc. Key Nos. 6, 11 & 33)

$98.99

$

Usually ships in 3-7 days

0

28

Homelite 544302001

Cord Retainer

$2.49

$

In Stock, only 1 left!

0

29

Homelite 205986001

10 in. Wheel Assembly

$41.99

$

Usually ships in 3-7 days

0

30

Homelite 683115001

Tension Spring

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 870290001

Wire Connector

$2.49

$

Usually ships in 0 days

0

32

Homelite 682629001

Tine Blade (Inner Left)

$186.99

$

Usually ships in 3-7 days

0

33

Homelite 682631001

Tine Blade (Outer Left)

$97.99

$

Usually ships in 3-7 days

0

34

Homelite 281335068

Motor Controller and Circuit Board Assembly

$391.99

$

Usually ships in 3-7 days

0

35

Homelite 660024061

ST SCREW,STEEL CH M4.0X1.8 PH TORX

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 513211001

Wire Press Plate

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 545500001

Battery Base

$29.99

$

Usually ships in 3-7 days

0

38

Homelite 742912001

Motor

$526.99

$

Usually ships in 0 days

0

39

Homelite 644608001

Cushion Block

$48.99

$

Usually ships in 3-7 days

0

40

Homelite 656485001

Drag Stake

$52.99

$

Usually ships in 3-7 days

0

41

Homelite 683152001

Wheel Axle Adjust Bracket

$79.99

$

Usually ships in 3-7 days

0

42

Homelite 656437001

Tine Shield

$259.99

$

Usually ships in 3-7 days

0

43

Homelite 671395001

Washer (OD25.2 x ID8.6 x 2.5t)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 660058008

Screw w/Washer (M6 x 25 mm, Rd. Hd. )

$2.49

$

In Stock, only 1 left!

0

45

Homelite 682632001

Tine Blade Assembly (Outer Right)

$97.99

$

Usually ships in 3-7 days

0

46

Homelite 674460001

Spring Pin

$11.99

$

Usually ships in 3-7 days

0

47

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$2.49

$

In Stock, Qty 9

0

48

Homelite 220782002

Gear Box Assembly

$450.99

$

Usually ships in 3-7 days

0

49

Homelite 545365001

Battery Cover

$33.99

$

Usually ships in 3-7 days

0

50

Homelite 679073001

Compression Spring

$2.49

$

In Stock, only 1 left!

0

51

Homelite 679074006

Battery Door Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 660203002

Screw (M x 12 mm, Pan Hd.)

$

$

Not available

53

Homelite 661689002

Screw (M8 x 30 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$2.49

$

In Stock, Qty 6

0

55

Homelite 545577001

Pressing Plate

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

57

Homelite 683081001

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 674290002

Spring Pin

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 543885001

Bushing

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 660901001

Bolt (M5 x 14 mm)

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 678774007

Flange Lock Nut (M5 x 0.8 in.)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 790055001

NYLON CABLE TIE

$2.49

$

Usually ships in 3-7 days

0

Homelite 998000702

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
