RY 40801 - Ryobi Snow Blower Figure A Parts Diagram

Snow Blower

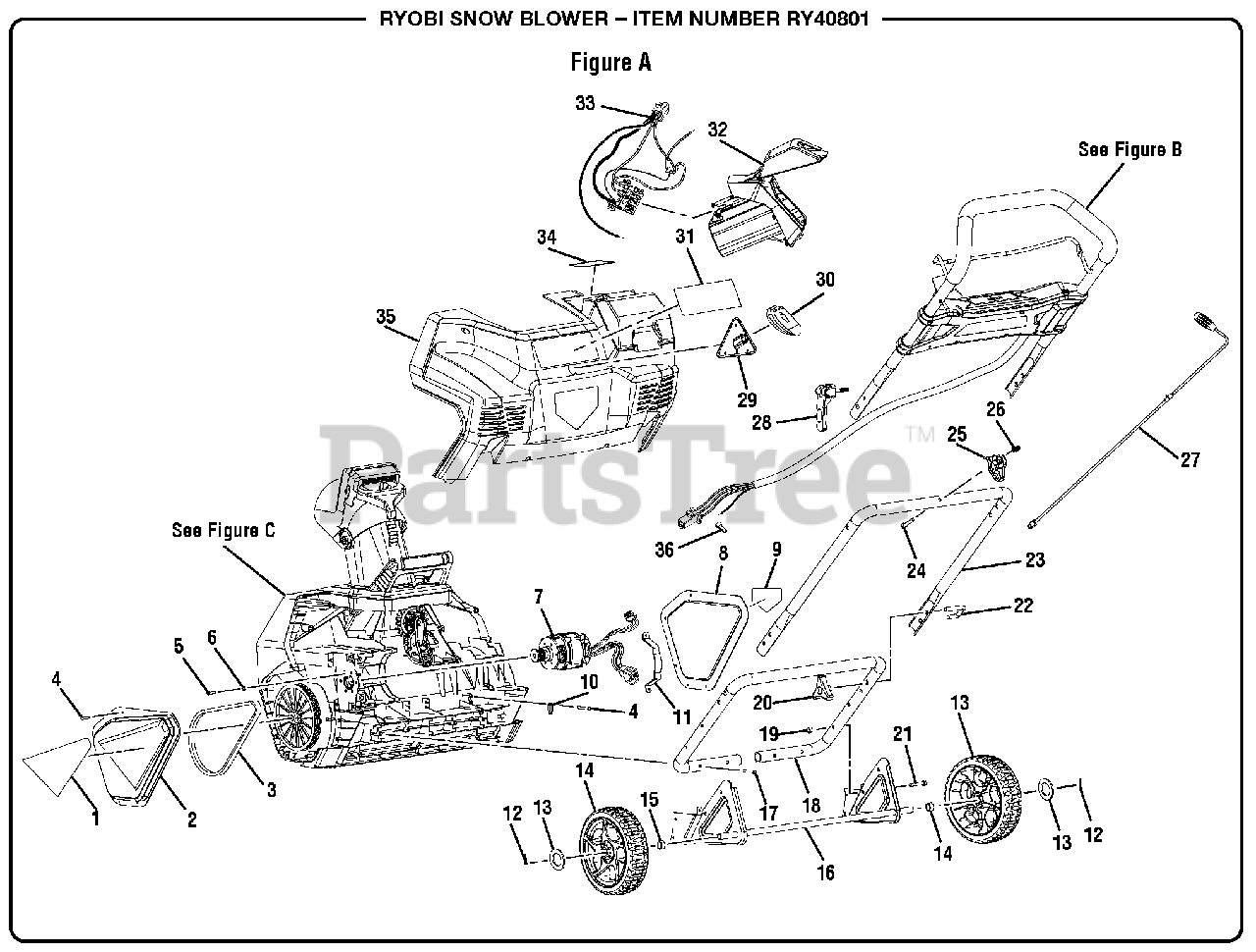

Figure A Parts Diagram

  • Title

1

Homelite 099723021005

Brushless Motor Label

$

$

Not available

2

Homelite 099723051001

Left Side Cover

Note: (Inc. Key No. 1)

$

$

Not available

3

Homelite 099723051003

Belt

$

$

Not available

4

Homelite 099723051002

Screw (M4.2 x 16 mm)

$

$

Not available

5

Homelite 099723051004

Screw (M5 x 8 mm)

$

$

Not available

6

Homelite 099723051005

Washer (M5)

$

$

Not available

7

Homelite 099723051007

Motor

$

$

Not available

8

Homelite 099723051019

Right Side Cover

Note: (Inc. Key No. 9)

$

$

Not available

9

Homelite 941641001

Hands and Feet Label

$

$

Not available

10

Homelite 099723051009

Cord Clamp

$

$

Not available

11

Homelite 099723051008

Motor Plate

$

$

Not available

12

Homelite 099723051010

Hitch Pin

$

$

Not available

13

Homelite 099723051011

Washer (ID13.5 x 1.5t)

$

$

Not available

14

Homelite 099723051012

Wheel Assembly

$

$

Not available

15

Homelite 099723051013

Ferrule

$

$

Not available

16

Homelite 099723051014

Axle Assembly

$

$

Not available

17

Homelite 099723051015

Screw (M5 x 35 mm)

$

$

Not available

18

Homelite 099723051016

Lower Handle

$

$

Not available

19

Homelite 099723051017

Nut (M6)

$

$

Not available

20

Homelite 099723051018

Knob

$

$

Not available

21

Homelite 099723051020

Bolt (M6 x 35 mm)

$

$

Not available

22

Homelite 099723051021

U-Clip

$

$

Not available

23

Homelite 099723051022

Middle Handle

$

$

Not available

24

Homelite 099723051023

Screw (M6 x 35 mm)

$

$

Not available

25

Homelite 099723051024

Bracket

$

$

Not available

26

Homelite 099723051025

Nut (M6)

$

$

Not available

27

Homelite 099723051028

Rod Assembly

$

$

Not available

28

Homelite 099723051026

Cam Lock Assembly

$

$

Not available

29

Homelite 099723051029

Connector

$

$

Not available

30

Homelite 099723051027

Sleeve

$

$

Not available

31

Homelite 099723021007

Warning Label

$

$

Not available

32

Homelite 099723051030

Battery Compartment

$

$

Not available

33

Homelite 099723051044

Battery Connector Harness

$

$

Not available

34

Homelite 099723021004

Lithioum-ion 40V Label

$

$

Not available

35

Homelite 099723051006

Rear Housing

Note: (Inc. Key Nos. 31 and 34)

$

$

Not available

36

Wire Connector

$

$

Not available

Homelite 991000092

Operator's Manual

Note: Not Shown

$

$

Not available
