RY 408010 VNM (108678001) - Ryobi 40V Snow Blower, Rev 01 (2022-02) Figure B Parts Diagram

40V Snow Blower, Rev 01

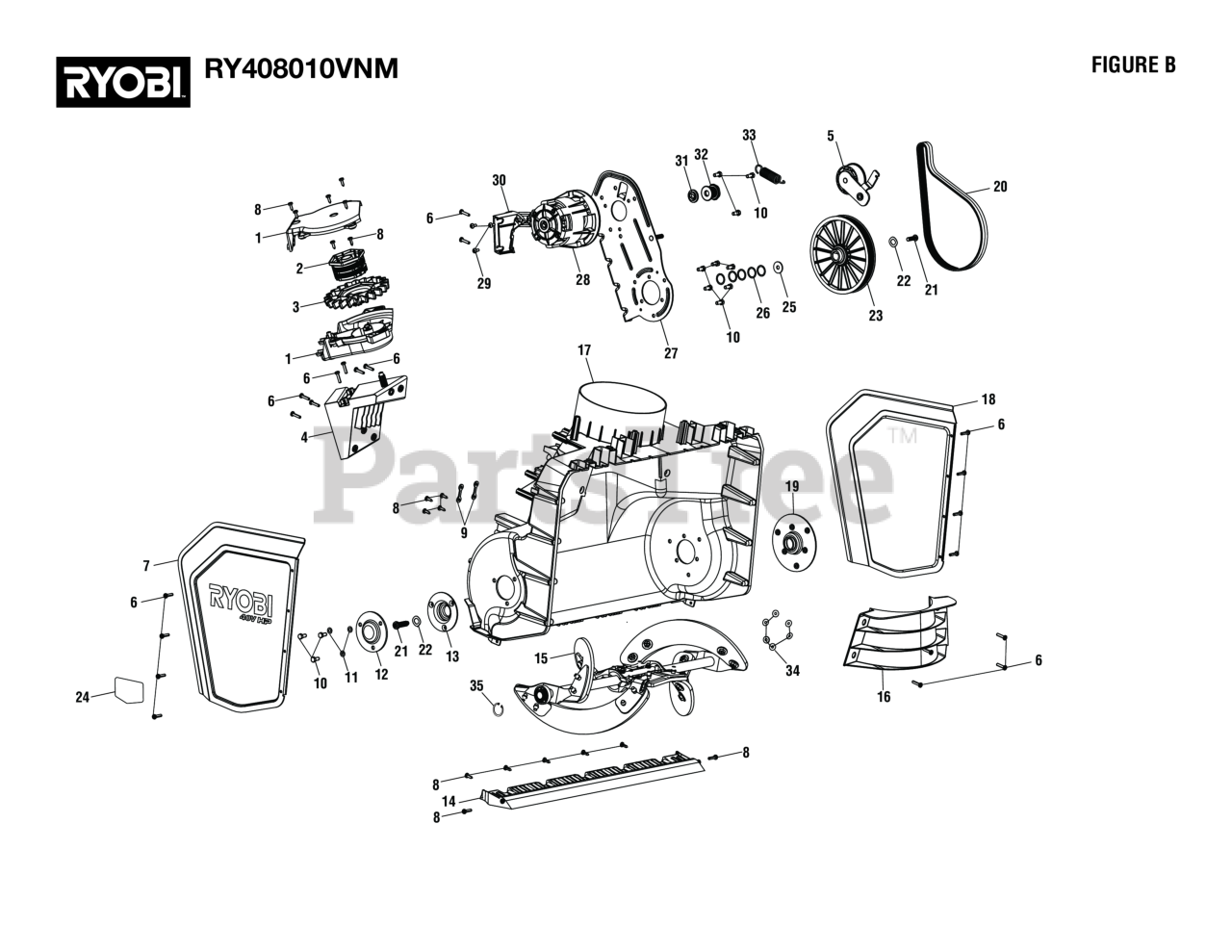

Figure B Parts Diagram

  • Title

1

Homelite 205847001

Chute Cover Assembly

$8.49

$

Usually ships in 3-7 days

0

2

Homelite 537734001

Pinion Drum

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 543833001

Pinion Gear

$3.49

$

Usually ships in 3-7 days

0

4

Homelite 543843001

Mounting Plate

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 315038001

Sheet Metal Bracket

$15.99

$

Usually ships in 3-7 days

0

6

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.49

$

In Stock, only 2 left!

0

7

Homelite 205852001

Right Side Cover

Note: (Inc. Key No. 24 )

$31.99

$

Usually ships in 3-7 days

0

8

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

9

Homelite 513211003

Hold-Down Tab

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 660927008

Screw (M5 x 12 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 678287001

Washer (OD9.8 x ID5.3 x 0.8t)

$

$

Not available

12

Homelite 539292001

Auger Bearing Cover Plate

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 658276001

Bearing Retainer

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 544007001

Scraper Blade

$13.99

$

In Stock, only 2 left!

0

15

Homelite 318084001

Snow Thrower-Auger Assembly

$127.99

$

Usually ships in 3-7 days

0

16

Homelite 543831001

Lower Chute Neck

$4.49

$

Usually ships in 3-7 days

0

17

Homelite 543829001

Lower Body

$84.99

$

Usually ships in 3-7 days

0

18

Homelite 656048001

Left Side Cover

$31.99

$

Usually ships in 3-7 days

0

19

Homelite 658396001

Bearing Retainer Plate

$5.99

$

Usually ships in 3-7 days

0

20

Homelite 563939002

V-Belt

$9.49

$

In Stock, only 4 left!

0

21

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.49

$

In Stock, only 1 left!

0

22

Homelite 638909005

Wave Washer

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 537737001

Auger Pulley

$14.99

$

In Stock, only 1 left!

0

24

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

25

Homelite 636191001

Flat Washer, ID6.6XOD20XT1.6, 65Mn,

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 635486001

Flat Washer (ID15.1 x OD19 x 0.5t)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 658275001

Motor Mounting Plate

$11.99

$

Usually ships in 3-7 days

0

28

Homelite 742515002

Motor

$232.99

$

Usually ships in 3-7 days

0

29

Homelite 661861004

Screw, M4X0.7, SCM435, Black Zinc Plated

$

$

Not available

30

Homelite 543392001

Motor Mounting

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 614164001

Spacer

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 311275002

Motor Pulley

$7.99

$

Usually ships in 3-7 days

0

33

Homelite 697873001

Belt Tensioner Spring

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 638892001

Flat Washer

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 673923001

C-Ring

$1.49

$

Usually ships in 3-7 days

0
