RY 40803 (107700006) - Ryobi 40V Snow Blower, Rev 01 (2016-11) Figure A Parts Diagram

40V Snow Blower, Rev 01

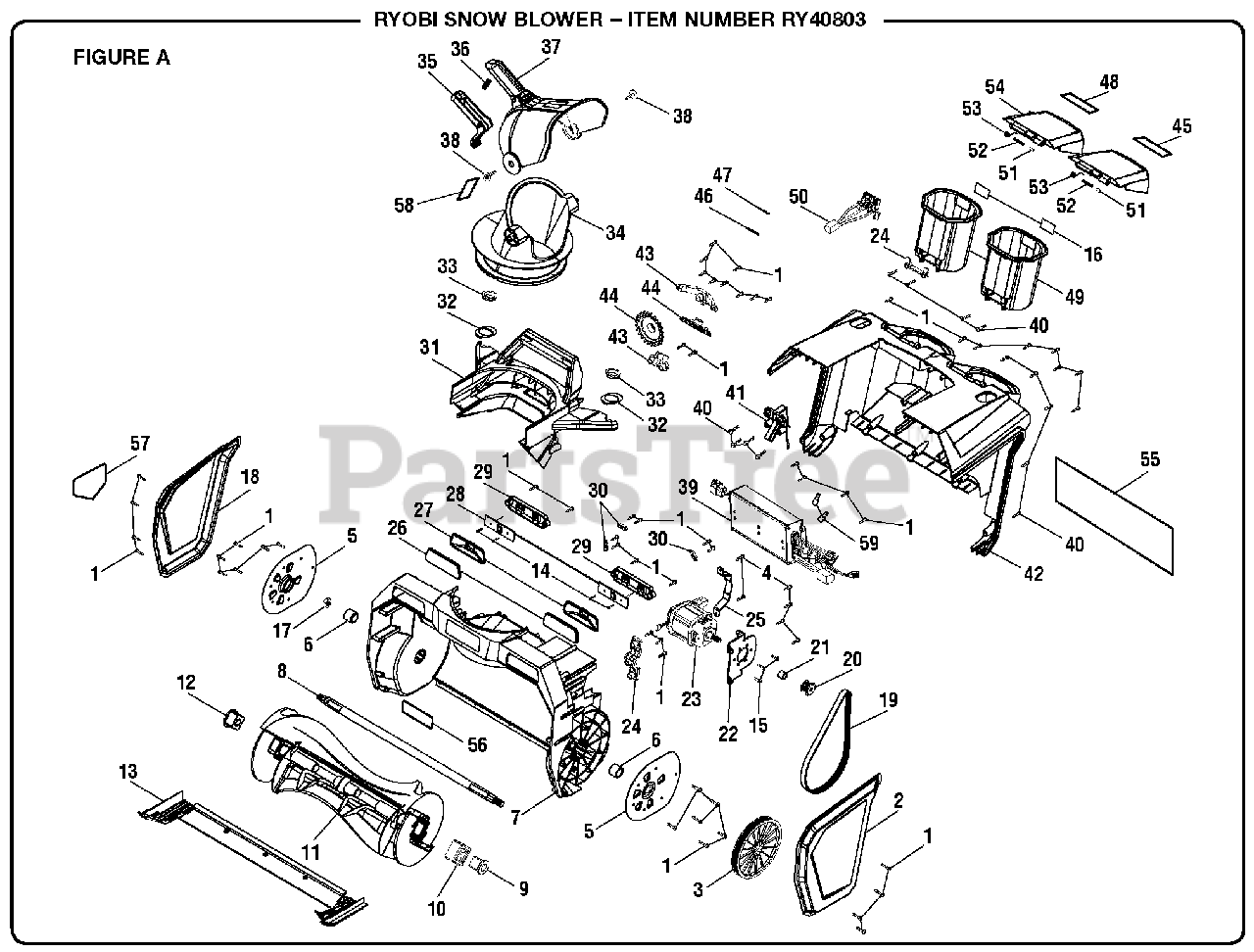

Figure A Parts Diagram

  • Title

1

Homelite 661189003

Screw (4 x 18 mm, T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 636785001

Left Side Cover

$44.99

$

Usually ships in 3-7 days

0

3

Homelite 529284001

Pulley

$20.99

$

Usually ships in 3-7 days

0

4

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$2.49

$

In Stock, only 2 left!

0

5

Homelite 311406001

Bearing Plate w/Bearing Assembly

$

$

Not available

6

Homelite 694993001

Sleeve

$

$

Not available

7

Homelite 203900001

Front Housing Assembly

Note: (Inc. Key No. 56)

$

$

Currently unavailable

8

Homelite 621893001

Auger Shaft

$

$

Not available

9

Homelite 612808001

Left Drive Block

$

$

Not available

10

Homelite 636782001

Connect Plate

$

$

Not available

11

Homelite 529275001

Impeller

$32.99

$

Usually ships in 3-7 days

0

12

Homelite 612809001

Right Drive Block

$

$

Not available

13

Homelite 203897001

Scraper Blade Assembly

$22.99

$

In Stock, only 2 left!

0

14

Homelite 660203001

Screw (M3-24 x 8 mm, Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

15

Homelite 660502004

Screw w/Washer (M5 x 8 mm, Pan Hd.)

$

$

Not available

16

Homelite 941851041

Battery Temperature Label

$

$

Not available

17

Homelite 662320001

Hex Nut (M12)

$

$

Currently unavailable

18

Homelite 203901001

Right Cover Assembly

Note: (Inc. Key No. 57)

$

$

Currently unavailable

19

Homelite 563939001

V-Belt (Type 5EPJ568)

$18.99

$

Usually ships in 3-7 days

0

20

Homelite 311275001

Drive Pulley

$

$

Not available

21

Homelite 694992001

Motor Bushing

$

$

Not available

22

Homelite 636786001

Motor Locating Plate

$

$

Not available

23

Homelite 742194003

Motor

$258.99

$

Usually ships in 3-7 days

0

24

Homelite 203892001

Motor Support & Terminal Holder Assembly

$

$

Not available

25

Homelite 636787001

Motor Plate

$

$

Not available

26

Homelite 529296001

Headlight Lens

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 529297001

Reflector

$

$

Not available

28

Homelite 280401003

LED Light Plate Assembly (Set of 2)

$32.99

$

Usually ships in 3-7 days

0

29

Homelite 529332001

Fixing Plate (LED Lens)

$

$

Not available

30

Homelite 513211001

Cord Clamp

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 529277001

Carry Handle

$34.99

$

Usually ships in 3-7 days

0

32

Homelite 529428001

Plug

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 563892001

Rubber Bushing

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 529276001

Chute

$12.99

$

Usually ships in 3-7 days

0

35

Homelite 529279001

Nozzle Adjustment Handle

$2.49

$

In Stock, only 4 left!

0

36

Homelite 695017001

Compression Spring

$2.49

$

In Stock, only 3 left!

0

37

Homelite 203902001

Chute Nozzle Assembly

Note: (Inc. Key No. 58)

$

$

Currently unavailable

38

Homelite 662199001

Screw w/Washer (M4-18 x 10 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 280400003

Brushless Motor Controller

$186.99

$

Usually ships in 3-7 days

0

40

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 13

0

41

Homelite 529289001

Fixing Plate (Chute Rod)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 203905001

Rear Housing Assembly

Note: (Inc. Key Nos. 16 & 55)

$

$

Currently unavailable

43

Homelite 203893001

Gear Support Assembly

$6.99

$

Usually ships in 3-7 days

0

44

Homelite 203894001

Gear Assembly

$9.99

$

Usually ships in 3-7 days

0

45

Homelite 940851062

On-Board Storage Label

$

$

Not available

46

Homelite 636793001

Washer (ID 17.5 x OD24 x 1t)

$

$

Not available

47

Homelite 636794001

C-Ring

$

$

Not available

48

Homelite 940851061

In-Use Label

$

$

Not available

49

Homelite 529281001

Battery Carriage

$

$

Not available

50

Homelite 311346001

Battery Holder Assembly

$12.99

$

Usually ships in 3-7 days

0

51

Homelite 621628001

Axle

$2.49

$

In Stock, only 3 left!

0

52

Homelite 679073001

Compression Spring

$2.49

$

In Stock, only 1 left!

0

53

Homelite 695144001

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 203903001

Battery Cover Assembly

Note: (Inc. Key No. 48)

$

$

Currently unavailable

Homelite 203904001

Battery Cover Assembly

Note: (Inc. Key No. 45)

$

$

Currently unavailable

55

Homelite 941588093

Danger/Data Label

$

$

Not available

56

Homelite 940705287

Front Logo Label

$

$

Not available

57

Homelite 941641001

CPSC Label

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940851065

Chute Icon Label

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 790009004

Wire Connector

$2.49

$

Usually ships in 3-7 days

0
