RY 40805 (107700021) - Ryobi 40V Snow Blower, Rev 01 (2018-07) Figure A Parts Diagram

40V Snow Blower, Rev 01

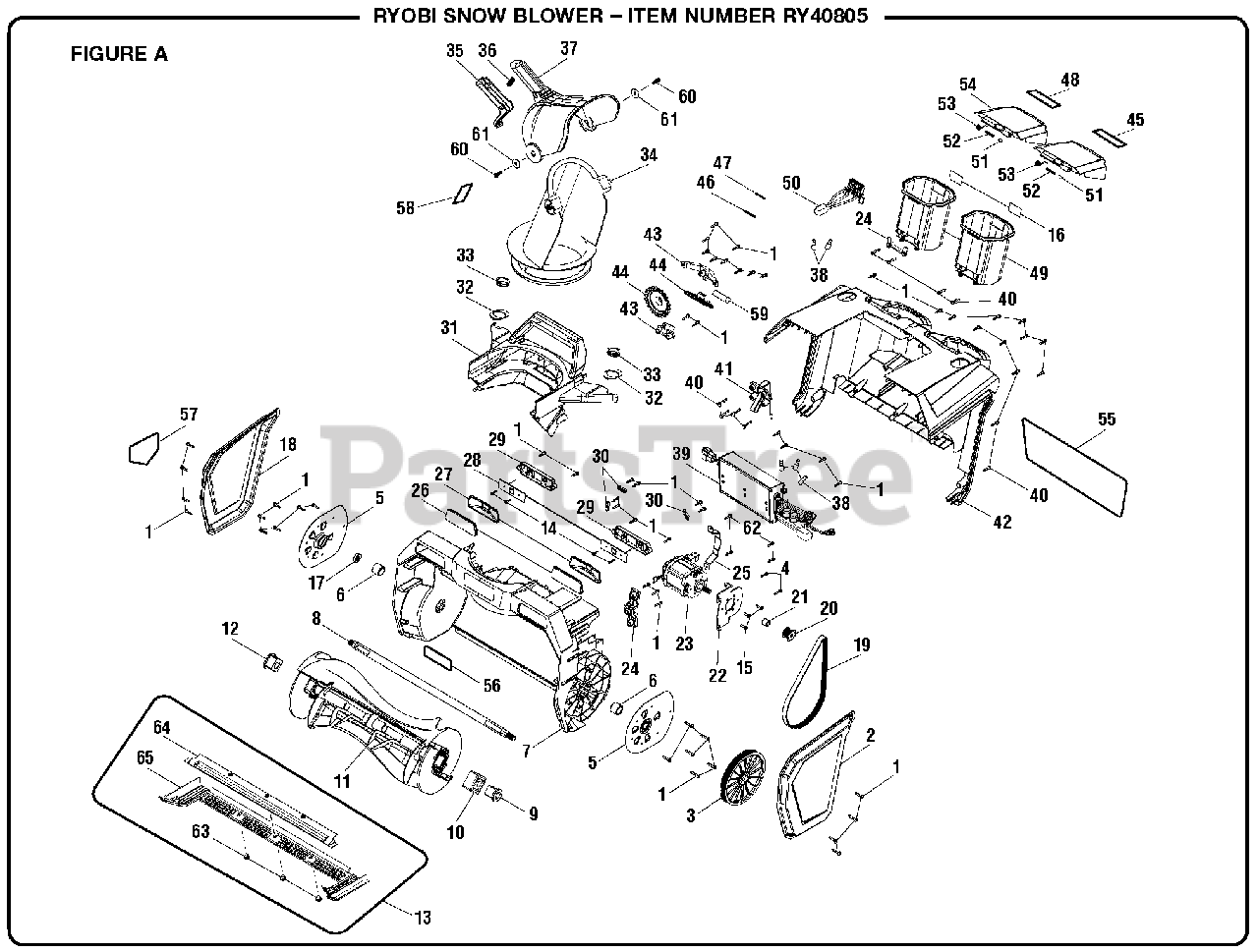

Figure A Parts Diagram

  • Title

1

Homelite 661189003

Screw (4 x 18 mm, T15 Torx Pan Hd.)

$2.49

$

In Stock, only 2 left!

0

2

Homelite 636785001

Left Side Cover

$44.99

$

Usually ships in 3-7 days

0

3

Homelite 529284001

Pulley

$20.99

$

Usually ships in 3-7 days

0

4

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$2.49

$

In Stock, only 2 left!

0

5

Homelite 311406001

Bearing Plate w/Bearing Assembly

$

$

Not available

6

Homelite 694993001

Sleeve

$

$

Not available

7

Homelite 529273001

Front Housing Assembly

$

$

Not available

8

Homelite 621893001

Auger Shaft

$

$

Not available

9

Homelite 612808001

Left Drive Block

$

$

Not available

10

Homelite 636782001

Connect Plate

$

$

Not available

11

Homelite 529275001

Impeller

$32.99

$

Usually ships in 3-7 days

0

12

Homelite 612809001

Right Drive Block

$

$

Not available

13

Homelite 203897001

Scraper Blade Assembly

Note: (Incl. Key Nos. 63-65)

$22.99

$

In Stock, only 2 left!

0

14

Homelite 660203001

Screw (M3-24 x 8 mm, Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

15

Homelite 660502004

Screw w/Washer (M5 x 8 mm, Pan Hd.)

$

$

Not available

16

Homelite 941851041

Battery Temperature Label

$

$

Not available

17

Homelite T662320001

Hex Nut (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 636784001

Right Cover

$

$

Not available

19

Homelite 563939001

V-Belt (Type 5EPJ568)

$18.99

$

Usually ships in 3-7 days

0

20

Homelite 311275001

Drive Pulley

$

$

Not available

21

Homelite 694992001

Motor Bushing

$

$

Not available

22

Homelite 636786001

Motor Locating Plate

$

$

Not available

23

Homelite 742194004

Motor

$

$

Not available

24

Homelite 203892001

Motor Support & Terminal Holder Assembly

$

$

Not available

25

Homelite 636787001

Motor Plate

$

$

Not available

26

Homelite 529296001

Headlight Lens

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 529297001

Reflector

$

$

Not available

28

Homelite 280401003

LED Light Plate Assembly (Set of 2)

$32.99

$

Usually ships in 3-7 days

0

29

Homelite 529332001

Fixing Plate (LED Lens)

$

$

Not available

30

Homelite 513211001

Cord Clamp

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 529277001

Carry Handle

$34.99

$

Usually ships in 3-7 days

0

32

Homelite 529428001

Plug

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 563892001

Rubber Bushing

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 529276002

Chute

$31.99

$

Usually ships in 3-7 days

0

35

Homelite 529279001

Nozzle Adjustment Handle

$2.49

$

In Stock, only 4 left!

0

36

Homelite 695017001

Compression Spring

$2.49

$

In Stock, only 3 left!

0

37

Homelite 534085001

Chute Nozzle

$12.99

$

In Stock, only 1 left!

0

38

Homelite 790021001

Wire Connector

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 280400006

Brushless Motor Controller

$395.99

$

Usually ships in 3-7 days

0

40

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd.)

$2.49

$

In Stock, Qty 13

0

41

Homelite 529289001

Fixing Plate (Chute Rod)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 529274001

Rear Housing

$60.99

$

Usually ships in 3-7 days

0

43

Homelite 203893001

Gear Support Assembly

$6.99

$

Usually ships in 3-7 days

0

44

Homelite 203894001

Gear Assembly

$9.99

$

Usually ships in 3-7 days

0

45

Homelite 940851062

On-Board Storage Label

$

$

Not available

46

Homelite 636793001

Washer (ID 17.5 x OD24 x 1t)

$

$

Not available

47

Homelite 636794001

C-Ring

$

$

Not available

48

Homelite 940851061

In-Use Label

$

$

Not available

49

Homelite 529281001

Battery Carriage

$

$

Not available

50

Homelite 311346003

Battery Holder Assembly

$21.99

$

Usually ships in 3-7 days

0

51

Homelite 621628001

Axle

$2.49

$

In Stock, only 3 left!

0

52

Homelite 679073001

Compression Spring

$2.49

$

In Stock, only 1 left!

0

53

Homelite 695144001

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 529280001

Battery Cover

$8.99

$

Usually ships in 3-7 days

0

55

Homelite 941588265

Data/Warning Label

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 940705287

Front Logo Label

$

$

Not available

57

Homelite 941641001

No Hands/Feet Danger Label

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940851065

Chute Icon Label

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 564617001

Rubber Plate

$

$

Not available

60

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$2.49

$

In Stock, Qty 6

0

61

Homelite 638988001

Washer (ID5.2 x OD16 x 1.5t)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 662053002

Screw (M5 x 25 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 664004002

Screw (1/4-20 x 3/8 in., T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 636788002

Scraper Blade (Metal)

$26.99

$

Usually ships in 3-7 days

0

65

Homelite 529300001

Scraper Blade Cover (Plastic)

$10.99

$

In Stock, only 1 left!

0
