RY 40LM01 (090390001) - Ryobi 40V Walk-Behind Mower, Rev 01 (2019-05) General Assembly Parts Diagram

40V Walk-Behind Mower, Rev 01

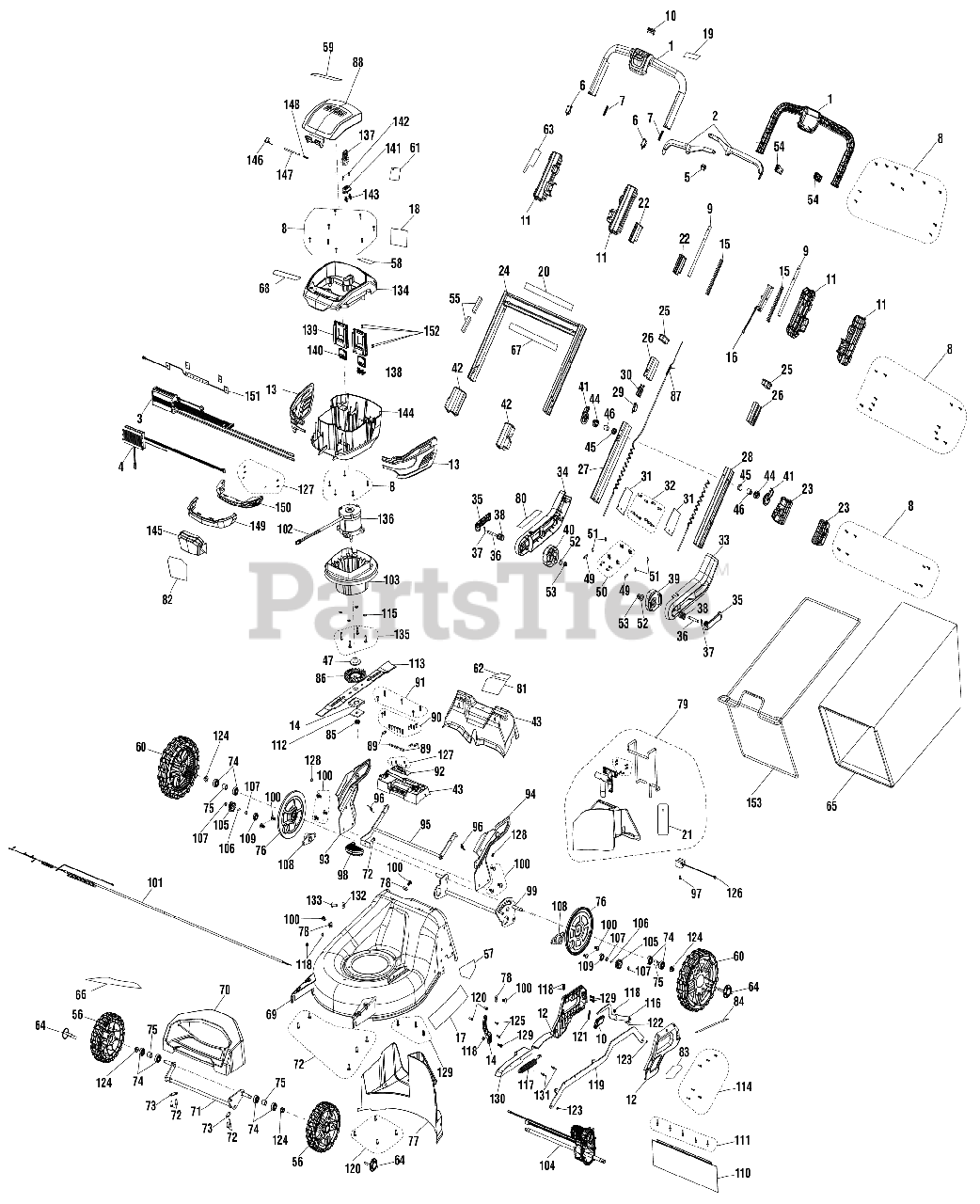

General Assembly Parts Diagram

  • Title

1

Homelite 205216001

Upper Handle Assembly

Note: (Inc. Key No. 19)

$13.99

$

Usually ships in 3-7 days

0

2

Homelite 205217001

Trigger Assembly

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 280749001

Drive Motor Controller

$126.99

$

Usually ships in 3-7 days

0

4

Homelite 280747001

Blade Circuit Board Controller

$174.99

$

Usually ships in 3-7 days

0

5

Homelite 760961002

Stop Switch (Momentary Contact)

$

$

Not available

6

Homelite 760551003

Switch (Red)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 696926001

Spring

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 4 left!

0

9

Homelite 696931001

Guide Tube

$3.49

$

Usually ships in 3-7 days

0

10

Homelite 205214001

Blade Button Trigger Assembly

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 205212001

Upper Handle Housing

Note: (Inc. Key No.63)

$8.49

$

In Stock, only 1 left!

0

12

Homelite 205218001

Deck Height Adjustment Housing

Note: (Inc. Key Nos. 83-84)

$8.99

$

Usually ships in 3-7 days

0

13

Homelite 205219001

Battery Housing Vent Assembly

$6.99

$

Usually ships in 3-7 days

0

14

Homelite T205220001

Transmission Mount & Spacer Assembly

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 697111001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 314359001

Speed Sensor Switch Assembly

$28.99

$

Usually ships in 3-7 days

0

17

Homelite 940851498

Deck Size Label

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 941851159

Main Danger Label (SP)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 941851177

Starting Instructions Label

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 941851178

Handles Fully Extended Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 918016031

Mulch Plug Hangtag

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 205221001

Slide Bushing Assembly

$2.99

$

In Stock, only 2 left!

0

23

Homelite 205222001

Rear Handle Latch Assembly

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 205190001

Structural Frame Assembly

Note: (Inc. Key Nos. 20 & 67)

$32.99

$

In Stock, only 1 left!

0

25

Homelite 534997001

Telescoping Latch

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 535214001

Telescopic Bushing

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 635484001

Tube (Right)

$12.99

$

Usually ships in 3-7 days

0

28

Homelite 635360001

Tube (Left)

$11.99

$

Usually ships in 3-7 days

0

29

Homelite 760551002

Switch

$2.49

$

In Stock, only 1 left!

0

30

Homelite 535054001

Fix Bushing Switch

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 635516001

Handle Cover

$2.99

$

Usually ships in 3-7 days

0

32

Homelite 660527001

Screw (M5 x 14 mm)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 635532001

Lower Handle (Left)

$29.99

$

Usually ships in 3-7 days

0

34

Homelite 205191001

Lower Handle

Note: (Right, Inc. Key No. 80)

$23.99

$

Usually ships in 3-7 days

0

35

Homelite 535017001

Handle Cam Lever

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 673824001

Cam Pin

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 673874001

Cam Lever Dowel (4 mm)

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 696920001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 613728001

Handle Height Adjustment Disc (Right)

$9.49

$

Usually ships in 3-7 days

0

40

Homelite 613727001

Handle Height Adjustment Disc (Left)

$9.49

$

In Stock, only 1 left!

0

41

Homelite 536916001

Side Handle Latch

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 205223001

Front Handle Latch Assembly

$2.99

$

Usually ships in 3-7 days

0

43

Homelite 205224001

Bag Hanger

Note: (Inc. Key Nos. 62 & 81)

$15.99

$

Usually ships in 3-7 days

0

44

Homelite 536919001

Side Compression Disc Holder

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 697483001

Handle Compression Spring

$1.49

$

In Stock, only 2 left!

0

46

Homelite 565024001

Rubber Compression Disc

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 639120001

Motor Shaft Bushing

$3.49

$

Usually ships in 3-7 days

0

48

Homelite 536915001

Handle Latch (Right Front)

$

$

Currently unavailable

49

Homelite 635985001

Wiring Strap (20 mm)

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 660925003

Screw (M4 x 12 mm, T20 Torx Hd.)

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 635790001

Wiring Hold Down Plate (10 mm)

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 678889003

Washer (OD24 x ID12.5 x 2.5t)

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

54

Homelite 537693001

Push Button

$1.49

$

Usually ships in 3-7 days

0

55

Homelite 565215001

Foam Pad

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 313618001

8 in. Wheel Assembly

Note: (Inc. Key No. 64)

$12.99

$

Usually ships in 3-7 days

0

57

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

58

Homelite 941851160

Onboard Battery Storage Label

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 941851158

Main Danger Label (EN/FR)

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 313619001

10 in. Wheel Assembly

Note: (Inc. Key No. 64)

$15.99

$

Usually ships in 3-7 days

0

61

Homelite 941851128

Start Key Hangtag

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 941851130

Attachment User Callout Label

$1.49

$

Usually ships in 3-7 days

0

63

Homelite 941851133

Handle Lockout Label

$1.49

$

Usually ships in 3-7 days

0

64

Homelite 535063001

Wheel Hub

$

$

Currently unavailable

65

Homelite 903718001

21 in. Grass Bag

$36.99

$

Usually ships in 3-7 days

0

66

Homelite 941851124

Front Logo Label

$1.49

$

Usually ships in 3-7 days

0

67

Homelite 941851125

Handle Logo Label

$1.49

$

Usually ships in 3-7 days

0

68

Homelite 941851127

Start Key Warning/Data Combo Label

$1.49

$

Usually ships in 3-7 days

0

69

Homelite 205193001

21 in. Deck Assembly

Note: (Inc. Key Nos. 17 & 57)

$176.99

$

Usually ships in 3-7 days

0

70

Homelite 205195001

Front Bumper Cover Assembly

Note: (Inc. Key No. 66)

$9.99

$

Usually ships in 3-7 days

0

71

Homelite 635490001

Front Axle.

$19.99

$

Usually ships in 3-7 days

0

72

Homelite 664004001

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)
(Superseded to 664004003)

$1.49

$

In Stock, Qty 20+

0

73

Homelite 635512001

Front Axle Mount

$1.49

$

Usually ships in 3-7 days

0

74

Homelite 681957001

Ball Bearing (ID12 x OD32 x 10 mm)

$2.99

$

Usually ships in 3-7 days

0

75

Homelite 613958001

Wheel Bushing

$1.49

$

Usually ships in 3-7 days

0

76

Homelite 535046001

Wheel Cover

$2.49

$

Usually ships in 3-7 days

0

77

Homelite 535047001

Baffle

$19.99

$

Usually ships in 3-7 days

0

78

Homelite T662406001

Square Nut (M8)

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 205199001

Mulching Plug Assembly

Note: (Inc. Key No. 21)

$16.99

$

Usually ships in 3-7 days

0

80

Homelite 941851117

Handle Instructions Label

$1.49

$

Usually ships in 3-7 days

0

81

Homelite 941851119

Guard Warnings Label

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 941851120

Logo Label (Front)

$1.49

$

Usually ships in 3-7 days

0

83

Homelite 941851122

Single Point Adjust Label

$1.49

$

Usually ships in 3-7 days

0

84

Homelite 941851123

Cut Height Label

$1.49

$

Usually ships in 3-7 days

0

85

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.49

$

In Stock, only 1 left!

0

86

Homelite 535080001

Motor Fan Blade Adapter

$2.49

$

Usually ships in 3-7 days

0

87

Homelite 291975001

Inner Wire w/Terminal

$11.99

$

In Stock, only 1 left!

0

88

Homelite 313626002

Battery Cover Assembly

$11.99

$

Usually ships in 3-7 days

0

89

Homelite 513211001

Wire Press Plate

$1.49

$

Usually ships in 3-7 days

0

90

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.49

$

Usually ships in 3-7 days

0

91

Homelite 660970001

Screw w/Washer (M4 x 16 mm, T25 Torx Truss Hd.)

$1.49

$

In Stock, only 1 left!

0

92

Homelite 280751001

Signal Conversion Interface Board

$10.99

$

Usually ships in 3-7 days

0

93

Homelite 635488001

Handle Bracket (Right)

$20.99

$

Usually ships in 3-7 days

0

94

Homelite 635487001

Handle Bracket (Left)

$20.99

$

Usually ships in 3-7 days

0

95

Homelite 635491002

Pedal Linkage

$22.99

$

Usually ships in 3-7 days

0

96

Homelite 696930001

Extension Spring

$1.49

$

Usually ships in 3-7 days

0

97

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd.)

$1.49

$

In Stock, only 4 left!

0

98

Homelite 535181001

Handle Latch Pedal

$2.49

$

Usually ships in 3-7 days

0

99

Homelite 635489001

Rear Axle w/Height Adjustment Plate

$36.99

$

Usually ships in 3-7 days

0

100

Homelite 662160001

Screw (M8 x 16 mm, T40 Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

101

Homelite 291976001

Main Wiring Harness (Right)

$24.99

$

Usually ships in 3-7 days

0

102

Homelite 291977001

Main Wiring Harness

$13.99

$

Usually ships in 3-7 days

0

103

Homelite 535014001

Motor Mount

$18.99

$

Usually ships in 3-7 days

0

104

Homelite 210449001

Transmission

$263.99

$

Usually ships in 3-7 days

0

105

Homelite 613239001

Drive Gear

$1.99

$

Usually ships in 3-7 days

0

106

Homelite 622068001

Gear Shaft

$1.49

$

Usually ships in 3-7 days

0

107

Homelite 690698001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

108

Homelite 613738001

Drive Axle Bearing Sleeve

$10.99

$

Usually ships in 3-7 days

0

109

Homelite 682164001

Ball Bearing (OD28.6 x ID12.7 x 8)

$2.49

$

Usually ships in 3-7 days

0

110

Homelite 535061001

Rear Guard

$12.99

$

Usually ships in 3-7 days

0

111

Homelite 673179002

STEEL RIVET DIA 3.9 X 8MM

$

$

Not available

112

Homelite 639118001

Metal Blade Retainer

$1.99

$

Usually ships in 3-7 days

0

113

Homelite 682282001

21 in. Blade

$22.99

$

In Stock, only 2 left!

0

114

Homelite 660024061

ST SCREW,STEEL CH M4.0X1.8 PH TORX

$1.49

$

Usually ships in 3-7 days

0

115

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.49

$

Usually ships in 3-7 days

0

116

Homelite 635495001

Height Adjustment Hook

$7.49

$

Usually ships in 3-7 days

0

117

Homelite 696924001

Extension Spring

$4.99

$

Usually ships in 3-7 days

0

118

Homelite 678460002

Lock Nut (M6 x 6 mm)

$1.49

$

Usually ships in 3-7 days

0

119

Homelite 635496001

Height Adjustment Linkage

$16.99

$

Usually ships in 3-7 days

0

120

Homelite 661431003

Screw (M6 x 14 mm, Hex Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

121

Homelite 697164001

Height Adjustment Trigger Spring

$1.49

$

Usually ships in 3-7 days

0

122

Homelite 660353001

Clutch Shoulder Bolt (M6 x 22.5 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

123

Homelite 637087001

E-Ring (ID 6 mm)

$1.49

$

Usually ships in 3-7 days

0

124

Homelite 662082001

Lock Nut (3/8-16, Flange)

$1.49

$

Usually ships in 3-7 days

0

125

Homelite 662065001

Screw (T20 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

126

Homelite 890043001

Grass Catcher Sensor Switch
(Superseded to 890050001)

$

$

Not available

127

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.49

$

Usually ships in 3-7 days

0

128

Homelite 635333001

C-Ring

$1.49

$

Usually ships in 3-7 days

0

129

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.49

$

In Stock, only 1 left!

0

130

Homelite 537792001

Spring Cover

$1.99

$

Usually ships in 3-7 days

0

131

Homelite 678002002

Al Rivet

$1.49

$

Usually ships in 3-7 days

0

132

Homelite 678125001

Washer (ID 4.3 x OD12 x 1.5t)

$1.49

$

Usually ships in 3-7 days

0

133

Homelite 696138001

Rivet

$1.49

$

Usually ships in 3-7 days

0

134

Homelite 205187001

Top Battery Housing Cover

Note: (Inc. Key Nos 18, 58, 61 & 68)

$13.99

$

Usually ships in 3-7 days

0

135

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

136

Homelite 742461001

40V-DC Motor

$357.99

$

Usually ships in 3-7 days

0

137

Homelite 205198001

Key Assembly

Note: (Inc. Key No. 61)

$2.99

$

Usually ships in 3-7 days

0

138

Homelite 639491001

Common Foot Contact Plate

$1.99

$

Usually ships in 3-7 days

0

139

Homelite 535272001

40V Foot

$1.99

$

Usually ships in 3-7 days

0

140

Homelite 532760002

Common Foot Cover

$1.49

$

Usually ships in 3-7 days

0

141

Homelite 526912001

Key Holder
(Superseded to 120722005)

$11.99

$

Usually ships in 3-7 days

0

142

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

143

Homelite 639178001

Female Terminal
(Superseded to 120722005)

$11.99

$

Usually ships in 3-7 days

0

144

Homelite 535005001

Battery Housing (Bottom)

$17.99

$

Usually ships in 3-7 days

0

145

Homelite 205194001

Plug Cover Battery Housing (Front)

$2.49

$

Usually ships in 3-7 days

0

146

Homelite 696934001

Battery Clear Cover Spring

$1.49

$

Usually ships in 3-7 days

0

147

Homelite 622330001

Pin

$1.49

$

Usually ships in 3-7 days

0

148

Homelite 679073001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

149

Homelite 535081001

LED Clear Window Lens

$1.49

$

Usually ships in 3-7 days

0

150

Homelite 535082001

LED Reflection Cup

$11.99

$

Usually ships in 3-7 days

0

151

Homelite 280738001

LED Circuit Board Assembly

$15.99

$

Usually ships in 3-7 days

0

152

Homelite 660230011

Screw (M3 x 10 mm, T10 Torx Hd.)

$

$

Currently unavailable

153

Homelite 635510001

Bag Frame

$26.99

$

Usually ships in 3-7 days

0

Homelite 995000685

Operator's Manual

Note: NOT SHOWN

$

$

Not available
