RY 41002 - Ryobi String Trimmer String Trimmer Parts Diagram

String Trimmer

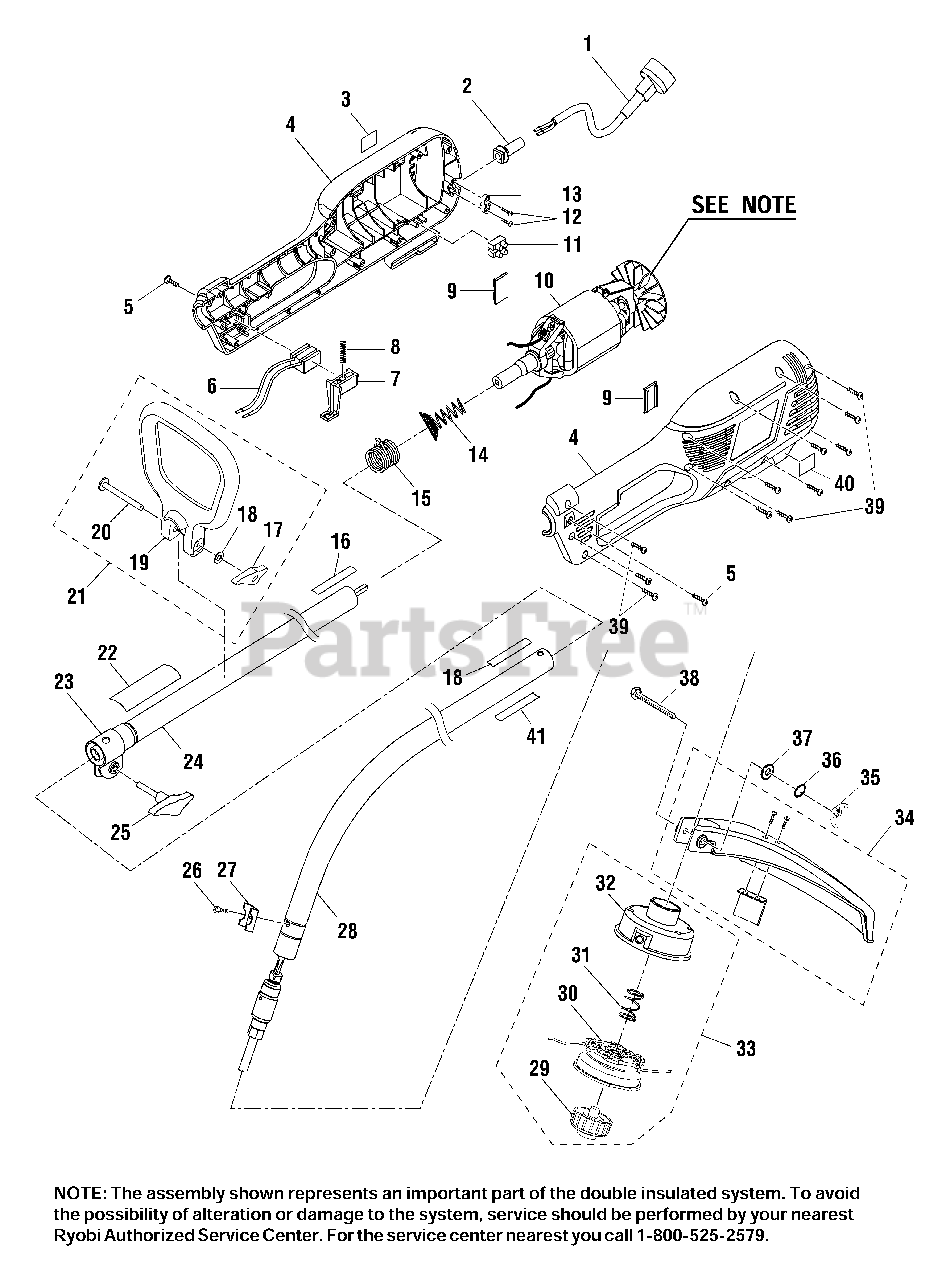

String Trimmer Parts Diagram

  • Title

1

Homelite UT41002A-31

POWER CORD

$

$

Not available

2

Homelite UT41002A-30

BEND RELIEF

$2.99

$

Usually ships in 3-7 days

0

3

Homelite RY41002-7

DATA PLATE

$2.49

$

Usually ships in 3-7 days

0

4

Homelite RY41002-4

HOUSING ASSEMBLY

$30.99

$

Usually ships in 3-7 days

0

5

Homelite UT41002A-28

SCREW (M4 X 10 mm)

Note: May be purchased locally.

$1.49

$

Usually ships in 3-7 days

0

6

Homelite UT41002A-36

SWITCH ASSEMBLY

$

$

Not available

7

Homelite UT41002A-38

SWITCH TRIGGER

$

$

Not available

8

Homelite UT41002A-37

SPRING

$3.49

$

Usually ships in 3-7 days

0

9

Homelite UT41002A-35

RUBBER CUSHION

$

$

Not available

10

Homelite UT41002A-53

MOTOR ASSEMBLY
(Superseded to 099015003006)

$158.99

$

Usually ships in 3-7 days

0

11

Homelite UT41002A-34

CONNECTOR ASSEMBLY

$

$

Not available

12

Homelite UT41002A-33

SCREW (M4 X 15 mm)

Note: May be purchased locally.

$

$

Not available

13

Homelite UT41002A-32

CORD CLAMP

$

$

Not available

14

Homelite UT41002A-39

SPRING

$2.49

$

Usually ships in 3-7 days

0

15

Homelite UT41002A-27

HOOK

$

$

Not available

16

Homelite UT41002A-45

ICON LABEL

$

$

Not available

17

Homelite UT41002A-25

LOCK KNOB

$

$

Not available

18

Homelite UT41002A-24

FLATWASHER

$

$

Not available

19

Homelite UT41002A-23

FRONT HANDLE
(Superseded to UT41002A-21)

$

$

Not available

20

Homelite UT41002A-22

CARRIAGE BOLT (M6 X 50 mm)

Note: May be purchased locally.

$

$

Not available

21

Homelite UT41002A-21

AUXILARY HANDLE ASSEMBLY

Note: (INCLUDES KEY NOS. 19 - 22)

$

$

Not available

22

Homelite UT41002A-46

WARNING LABEL

$

$

Not available

23

Homelite UT41002A-20

EXPAND-IT COUPLER

$

$

Not available

24

Homelite RY41002-3

ALUMINUM BOOM ASSEMBLY

Note: (INCLUDES KEY NO. 25)

$

$

Not available

25

Homelite UT41002A-19

KNOB
(Superseded to 099015002006)

$

$

Not available

26

Homelite UT41002A-14

SCREW (M5 X 8 mm)

Note: May be purchased locally.

$2.49

$

Usually ships in 3-7 days

0

27

Homelite UT41002A-15

GRASS DEFLECTOR CLAMP

$

$

Not available

28

Homelite RY41002-1

LOWER DRIVE SHAFT HOUSING ASSEMBLY

$

$

Not available

29

Homelite UT41002A-2

RETAINING CAP

$2.99

$

Usually ships in 3-7 days

0

30

Homelite UT41002A-3

SPOOL WITH LINE

$

$

Not available

31

Homelite UT41002A-4

COMPRESSION SPRING

$

$

Not available

32

Homelite UT41002A-5

TRIMMER HEAD WITH EYELETS

$18.99

$

Usually ships in 3-7 days

0

33

Homelite UT41002A-1

STRING HEAD ASSEMBLY
(Superseded to 099081003001)

Note: (INCLUDES KEY NOS. 31 - 34)

$

$

Not available

34

Homelite UT41002A-6

GRASS DEFLECTOR ASSEMBLY

$

$

Not available

35

Homelite UT41002A-11

WING NUT (1/4 in.)

Note: May be purchased locally.

$

$

Not available

36

Homelite UT41002A-12

SPRING WASHER

$

$

Not available

37

Homelite UT41002A-13

WASHER
(Superseded to 84006)

$

$

Not available

38

Homelite UT41002A-10

HEX BOLT (1/4 in.)

Note: May be purchased locally.

$

$

Not available

39

Homelite UT41002A-43

SCREW (M4 X 18 mm)

Note: May be purchased locally.

$1.49

$

Usually ships in 3-7 days

0

40

Homelite RY41002-8

LOGO PLATE, LEFT HOUSING

$

$

Not available

41

Homelite UT41002A-47

LOWER BOOM WARNING LABEL

$

$

Not available

Homelite 983000388

OPERATOR'S MANUAL

$

$

Not available
