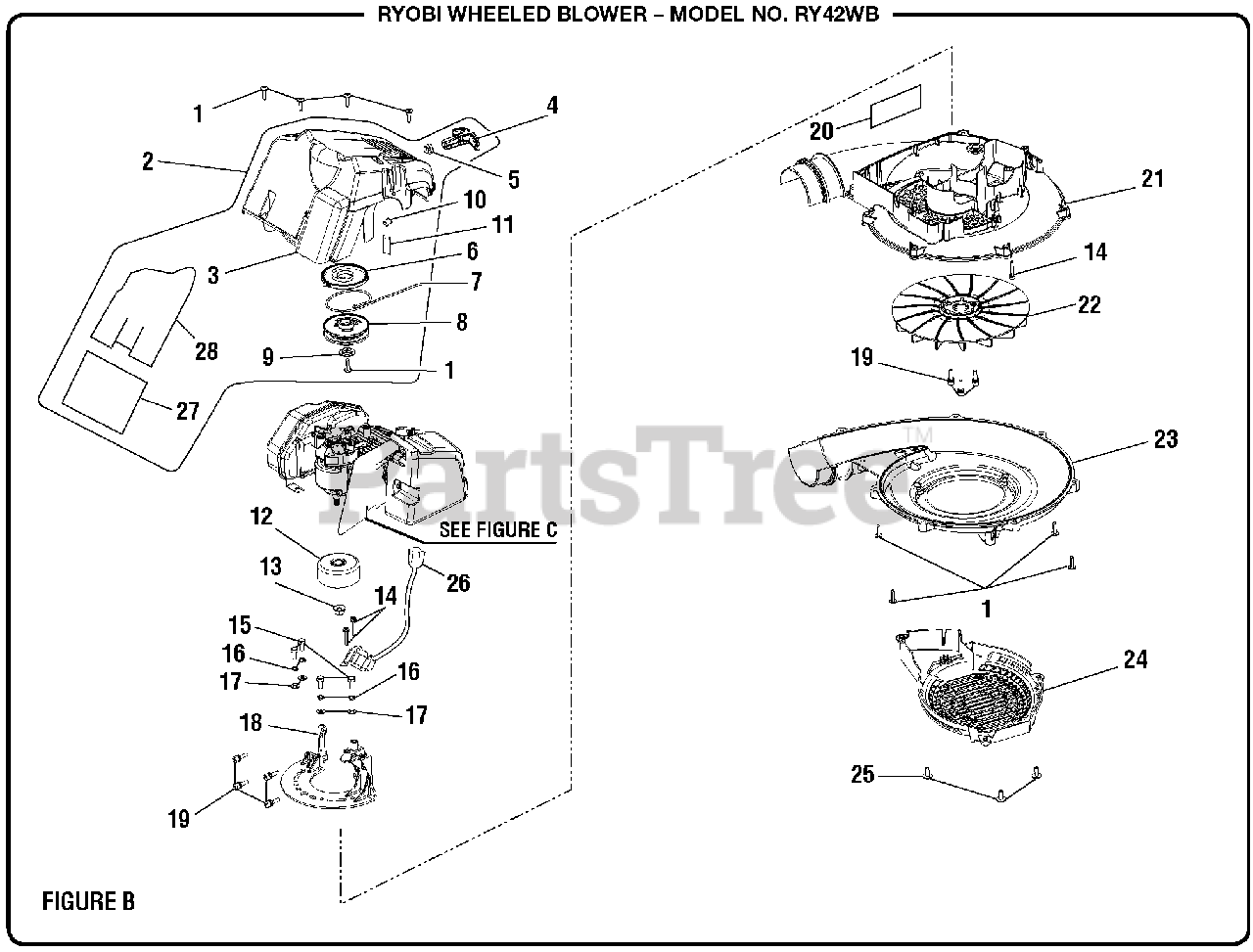

RY 42 WB (090248002) - Ryobi Wheeled Blower, Rev 01 (2017-09) Figure B Parts Diagram

Wheeled Blower, Rev 01

Figure B Parts Diagram

  • Title

1

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Hd.)

$2.49

$

In Stock, Qty 6

0

2

Homelite 308563027

Engine Cover w/Starter Assembly

Note: (Inc. Key Nos. 3-11 and 27-28)

$27.99

$

Usually ships in 3-7 days

0

3

Homelite 524587004

Motor Cover

$

$

Not available

4

Homelite 511731004

Starter Grip

$1.49

$

In Stock, Qty 6

0

5

Homelite 638088002

Eyelet

$2.49

$

In Stock, only 4 left!

0

6

Homelite 638033001

Container Spring Assembly

$6.49

$

In Stock, Qty 20+

0

7

Homelite 900849002

Starter Rope

$2.49

$

In Stock, only 4 left!

0

8

Homelite 521519001

Solid Pulley

$

$

Not available

9

Homelite 638980001

Starter Cap

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 638088004

Eyelet

$2.49

$

In Stock, only 3 left!

0

11

Homelite 522600003

Eyelet Support

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 679052003

Fan Disk

$25.99

$

Usually ships in 3-7 days

0

13

Homelite 678018001

Flange Lock Nut (M8, Left Hand Threads)
(Superseded to 04277)

$

$

Not available

14

Homelite 660613001

Screw w/Washer (M5 x 25 mm, T-25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 661431003

Screw (M6 x 14 mm, Hex Soc. Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 693001001

Spring Washer (ID6.4 x 1.6t)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 693002001

Washer (OD12.9 x ID6.6 x 1.2t)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 634062001

Engine Mount

$

$

Not available

19

Homelite 660344007

Screw w/Washers (M5 x 20 mm, Hex Soc. Hd.)

$2.49

$

In Stock, Qty 5

0

20

Homelite 700150003

Heat Shield Tape

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 523921003

Inner Volute

$

$

Not available

22

Homelite 518265004

Fan

$25.99

$

Usually ships in 3-7 days

0

23

Homelite 524586003

Outer Volute

$

$

Not available

24

Homelite 531133001

Intake Cover

$

$

Not available

25

Homelite 660629002

Screw (10-14 x 18 mm, T25 Torx Pan Hd.)

$2.49

$

In Stock, only 4 left!

0

26

Homelite 291424005

Ignition Module

$27.99

$

In Stock, only 2 left!

0

27

Homelite 650023006

Foil Tape

$

$

Not available

28

Homelite 902735001

Insulation

$

$

Not available
