RY 42 WB (090248002) - Ryobi Wheeled Blower, Rev 02 (2018-09) Figure A Parts Diagram

Wheeled Blower, Rev 02

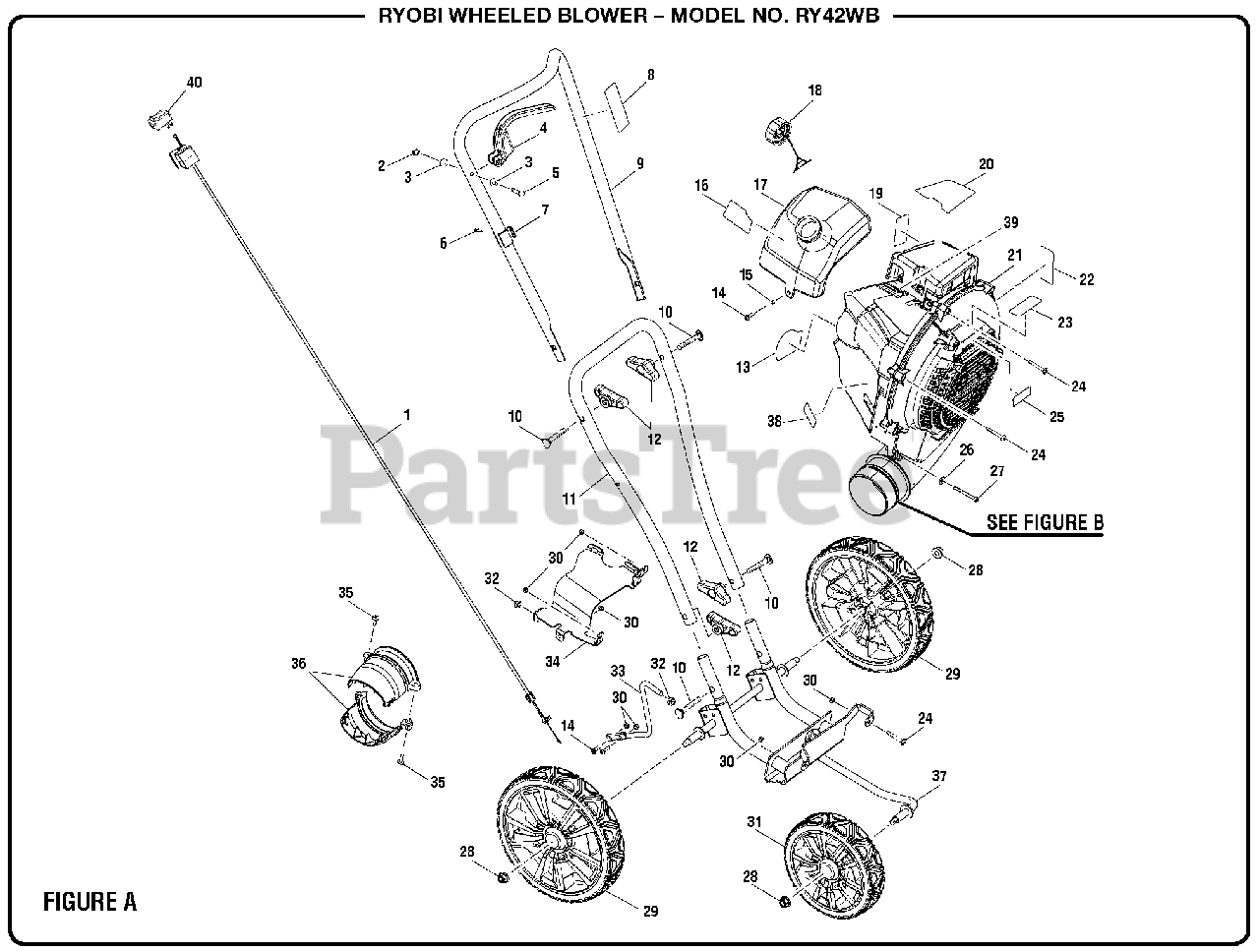

Figure A Parts Diagram

  • Title

1

Homelite 290298006

Lead Wire and Throttle Cable Assembly

$13.99

$

In Stock, Qty 8

0

2

Homelite 678135001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 590462002

Fiber Washer (OD12.5 x ID6.35 x 2t)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 518256003

Trigger

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 638132001

Pin

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660669001

Screw (8-16 x 1/2 in., Pan Hd.)

$1.49

$

In Stock, Qty 5

0

7

Homelite 519801001

Cable Clip

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 940657228

Warning Icon Label (Handle)

$

$

Not available

9

Homelite 309019003

Upper Handle Assembly

$

$

Not available

10

Homelite 661527001

Carriage Bolt (M8 x 60 mm)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 638740002

Center Handle

$14.99

$

Usually ships in 3-7 days

0

12

Homelite 310262004

Knob Assembly

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 940705357

Model/Performance Label

$

$

Not available

14

Homelite 660917003

Screw (M5 x 16 mm, T25 Torx Pan Hd.)

$

$

Not available

15

Homelite 679041001

Bushing

$

$

Not available

16

Homelite 940851183

E85 Label

$

$

Not available

17

Homelite 390027001

Fuel Tank Assembly

Note: (Inc. Key No. 18)

$

$

Not available

18

Homelite 310816015

Fuel Cap Assembly

$8.49

$

Usually ships in 3-7 days

0

19

Homelite 940851184

Choke Label

$

$

Not available

20

Homelite 940705356

Starting Instructions Label

$

$

Not available

21

Power Head Assembly

$

$

Not available

22

Homelite 940657230

Hot Surface Label

$

$

Not available

23

Homelite 940657229

Warning Icon Label (Inlet)

$

$

Not available

24

Homelite 662466001

Screw (M5 x 35 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 940705355

Logo Label (Ryobi)

$

$

Not available

26

Homelite 678341001

Washer (OD14 x ID5.1 x 1.4t)
(Superseded to 099069001006)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660347003

Cap Screw (M5 x 45 mm, T25 Torx Soc. Hd.)

$1.49

$

In Stock, only 4 left!

0

28

Homelite 662082001

Lock Nut (3/8-16 in.)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 330072001

Rear Wheel Assembly
(Superseded to 330072005)

$

$

Not available

30

Homelite 678509001

Lock Nut (M5)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 330073001

Front Wheel Assembly
(Superseded to 330073005)

$11.99

$

Usually ships in 3-7 days

0

32

Homelite 678067001

Lock Nut (M8)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 695579001

Support Rod

$

$

Not available

34

Homelite 637445001

Bracket

$

$

Not available

35

Homelite 660629005

Screw (10-14 x 3/4 in., Tri-Round T.F.)

$1.49

$

In Stock, Qty 5

0

36

Homelite 531134001

Nozzle

$

$

Not available

37

Homelite 312075001

Frame Assembly

$

$

Not available

38

Homelite 940654088

Combustion Label

$1.49

$

In Stock, only 3 left!

0

39

Homelite 903269002

Fuel Line Padding

$

$

Not available

40

Homelite 760961002

Stop Switch (Momentary Contact)

$

$

Not available

Homelite 991000907

Operator's Manual

Note: Not Shown

$

$

Not available
