RY 43006 - Ryobi 18" Chainsaw Bar / Chain / Tension Assembly Parts Diagram

18" Chainsaw

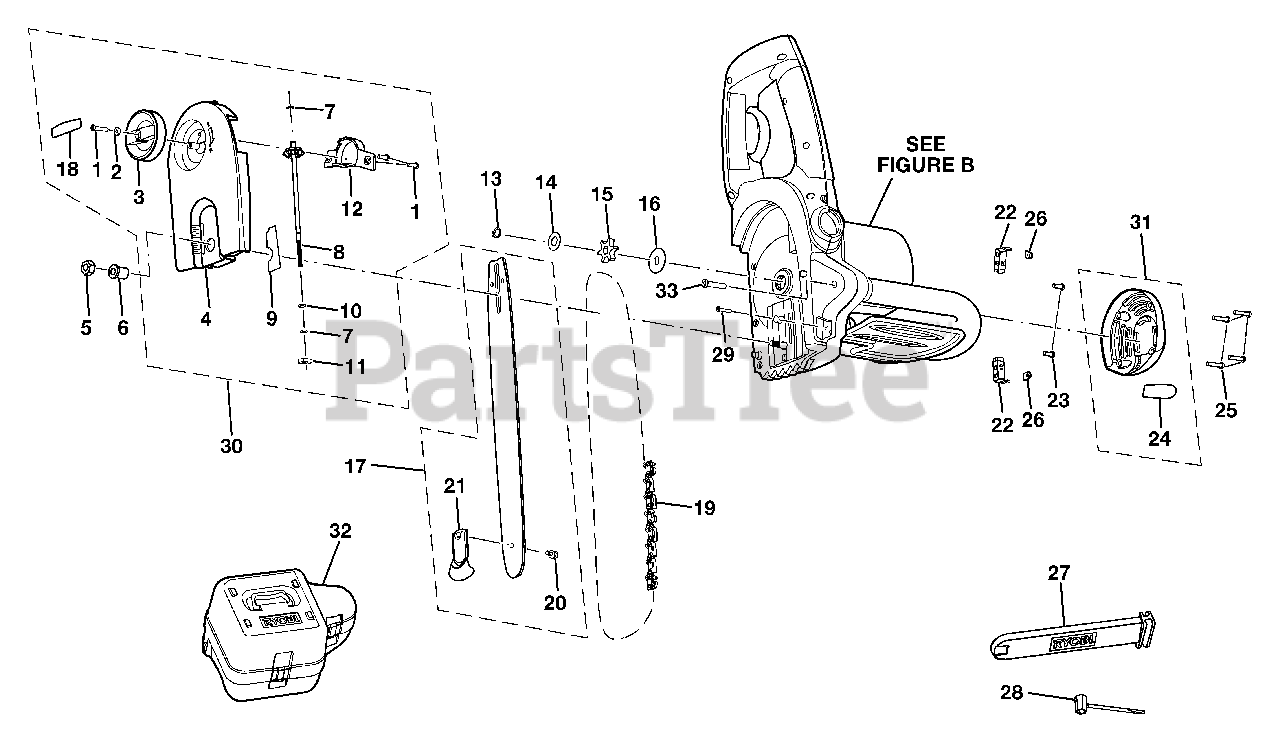

Bar / Chain / Tension Assembly Parts Diagram

  • Title

1

Homelite 6620801

SCREW (M4 X 12 mm PAN HD)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 6875901

FLAT WASHER (OD10 X ID4.2 X 1.0)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 512202001

BAR COVER KNOB WITH BEVEL GEAR

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 512107001

BAR COVER

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 671306001

GUIDE BAR NUT

$

$

Not available

6

Homelite 671307001

GUIDE BAR NUT BUSHING

$

$

Not available

7

Homelite 690467001

E-RING

$

$

Not available

8

Homelite 301078001

ADJUST SCREW ASSEMBLY

$

$

Not available

9

Homelite 512198001

RUBBER SEAL

$

$

Not available

10

Homelite 671696001

WASHER (OD9.5 X ID5.3 X 1)

Note: Purchase locally.

$

$

Not available

11

Homelite 631037001

GUIDE BAR ADJUST PLATE

$1.49

$

In Stock, Qty 5

0

12

Homelite 512204001

COVER PLATE

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 680469001

C-RING (1 mm)

$

$

Not available

14

Homelite 671694001

WASHER

$

$

Not available

15

Homelite 671225001

SPROCKET

$

$

Not available

16

Homelite 671695001

WASHER

$

$

Not available

17

Homelite 301139003

SAW BAR ASSEMBLY (18 in.)

Note: (INCLUDES KEY NOS.20-21)

$

$

Not available

18

Homelite 940299891

CHAIN TENSIONER LABEL

$

$

Not available

19

Homelite 301304001

SAW CHAIN ASSEMBLY

$

$

Not available

20

Homelite 660640001

SAFE-T-TIP (SCREW AND WASHER)

$1.49

$

In Stock, only 1 left!

0

21

Homelite 308006004

CHAIN TIP

$

$

Not available

22

Homelite 290069050

BRUSH ASSEMBLY

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 6614001

SCREW (M8 X 1/2 in. PAN HD.)

Note: Purchase locally

$

$

Not available

24

Homelite 940299889

LOGO LABEL

$

$

Not available

25

Homelite 6620805

SCREW (M4 X 16 mm PAN HD.)
(Superseded to 660208052)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 630801001

BRUSH CLAMP

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 512341001

BLADE GUARD (SCABBARD)

$

$

Not available

28

Homelite 631055002

SCRENCH

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 6620803

SCREW (M4 X 22 mm PAN HD.)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 200376001

BAR COVER W/ LABEL ASSEMBLY

Note: (INCLUDES KEY NOS. 1-4, 7-12, 18)

$

$

Not available

31

Homelite 200293039

MOTOR END CAP W/ LABEL ASSEMBLY

Note: (INCLUDES KEY NO. 24)

$

$

Not available

32

Homelite 300912201

CARRYING CASE

$

$

Not available

33

Homelite 660259005

SCREW (M4.5 X 22 mm PAN HD.)

Note: Purchase locally.

$1.49

$

Usually ships in 3-7 days

0

Homelite 983000640

OPERATOR'S MANUAL (960986002)

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:02)

$

$

Currently unavailable
