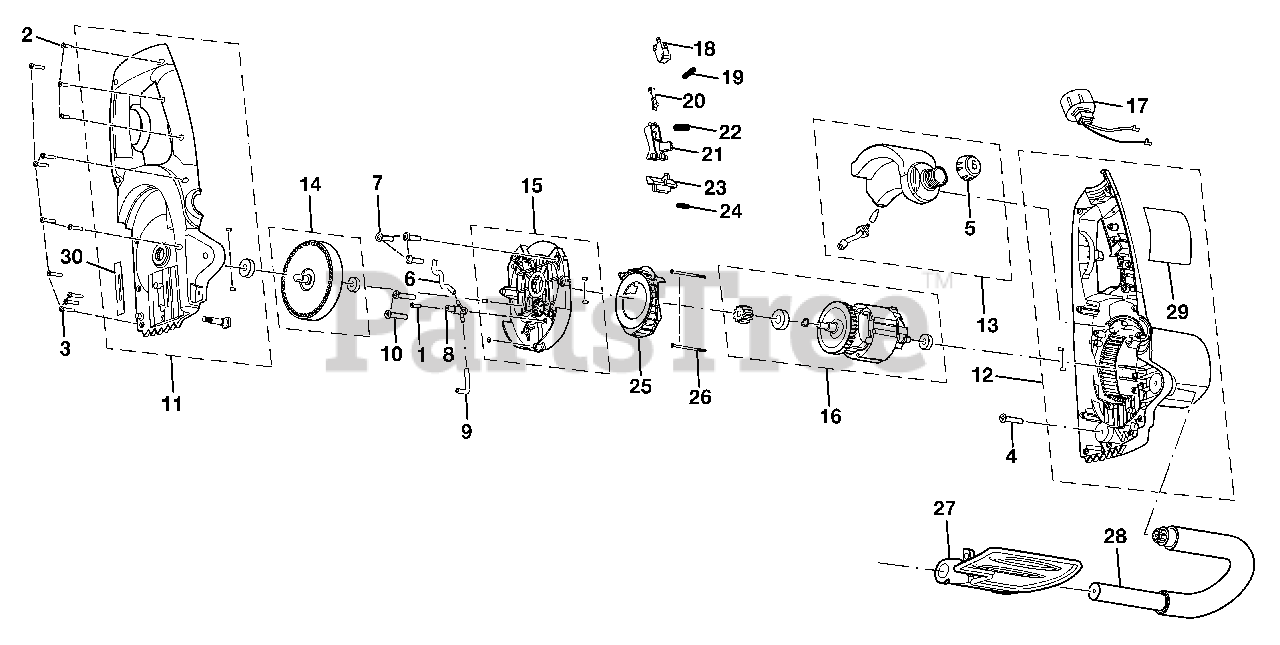

RY 43006 - Ryobi 18" Chainsaw Gear Box / Motor Assembly Parts Diagram

18" Chainsaw

Gear Box / Motor Assembly Parts Diagram

  • Title

1

Homelite 6620801

SCREW (M4 X 12 mm PAN HD.)

Note: Purchase Locally

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 6627201

SCREW (M4 X 14 mm PAN HD.)

Note: Purchase Locally

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 6620803

SCREW (M4 X 22 mm PAN HD.)

Note: Purchase Locally

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 660259005

SCREW (M4.5 X 22 mm PAN HD.)

Note: Purchase Locally.

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 512197001

OIL RESERVOIR CAP

$

$

Not available

6

Homelite 512110003

LONG OIL TUBE

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 660259006

SCREW (M4.5 X 14 mm PAN HD.)

Note: Purchase Locally.

$

$

Not available

8

Homelite 300946002

OIL PUMP ASSEMBLY

$5.49

$

Usually ships in 3-7 days

0

9

Homelite 512110001

SHORT OIL TUBE

$

$

Not available

10

Homelite 660259001

SCREW (M4.5 X 18 mm PAN HD.)

Note: Purchase Locally.

$

$

Not available

11

Homelite 200202374

HOUSING COVER ASSEMBLY

Note: (INCLUDES KEY NO 30)

$

$

Not available

12

Homelite 200202375

HOUSING SUPPORT W/ LABEL ASSEMBLY

Note: (INCLUDES KEY NO. 29)

$

$

Not available

13

Homelite 300790002

OIL TANK ASSEMBLY

Note: (INCLUDES KEY NO. 5)

$

$

Not available

14

Homelite 200377001

GEAR ASSEMBLY W/ BEARING

$28.99

$

Usually ships in 3-7 days

0

15

Homelite 200293040

GEAR CASE ASSEMBLY

$12.99

$

Usually ships in 3-7 days

0

16

Homelite 200146027

MOTOR ASSEMBLY W/ BEARING

$137.99

$

Usually ships in 3-7 days

0

17

Homelite 290220001

RECEPTACLE & RECESS PLUG ASSEMBLY

$

$

Not available

18

Homelite 760403001

SWITCH

$12.99

$

Usually ships in 3-7 days

0

19

Homelite 671740001

SPRING (°0.5 X ID4.5 X 23)

$

$

Not available

20

Homelite 512148002

SWITCH LEVER

$

$

Not available

21

Homelite 512201001

TRIGGER

$

$

Not available

22

Homelite 671414001

MAIN TRIGGER SPRING (°8 X OD7.9 X 34)

$

$

Not available

23

Homelite 512200001

LOCK OFF BUTTON

$

$

Not available

24

Homelite 670998004

SPRING

$

$

Not available

25

Homelite 512099001

FAN BAFFLE

$

$

Not available

26

Homelite 660101003

SCREW (#8 X 2-1/8 in. PAN HD.)

Note: Purchase Locally.

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 512097001

SAFETY GUARD

$

$

Not available

28

Homelite 512096001

FRONT HANDLE

$

$

Not available

29

Homelite 940186111

DATA LABEL

$

$

Not available

30

Homelite 512196001

RUBBER SEAL

$

$

Not available
