RY 43155 (099223001) - Ryobi 16" Chainsaw, Electric, Rev 02 (2020-12) General Assembly Parts Diagram

16" Chainsaw, Electric, Rev 02

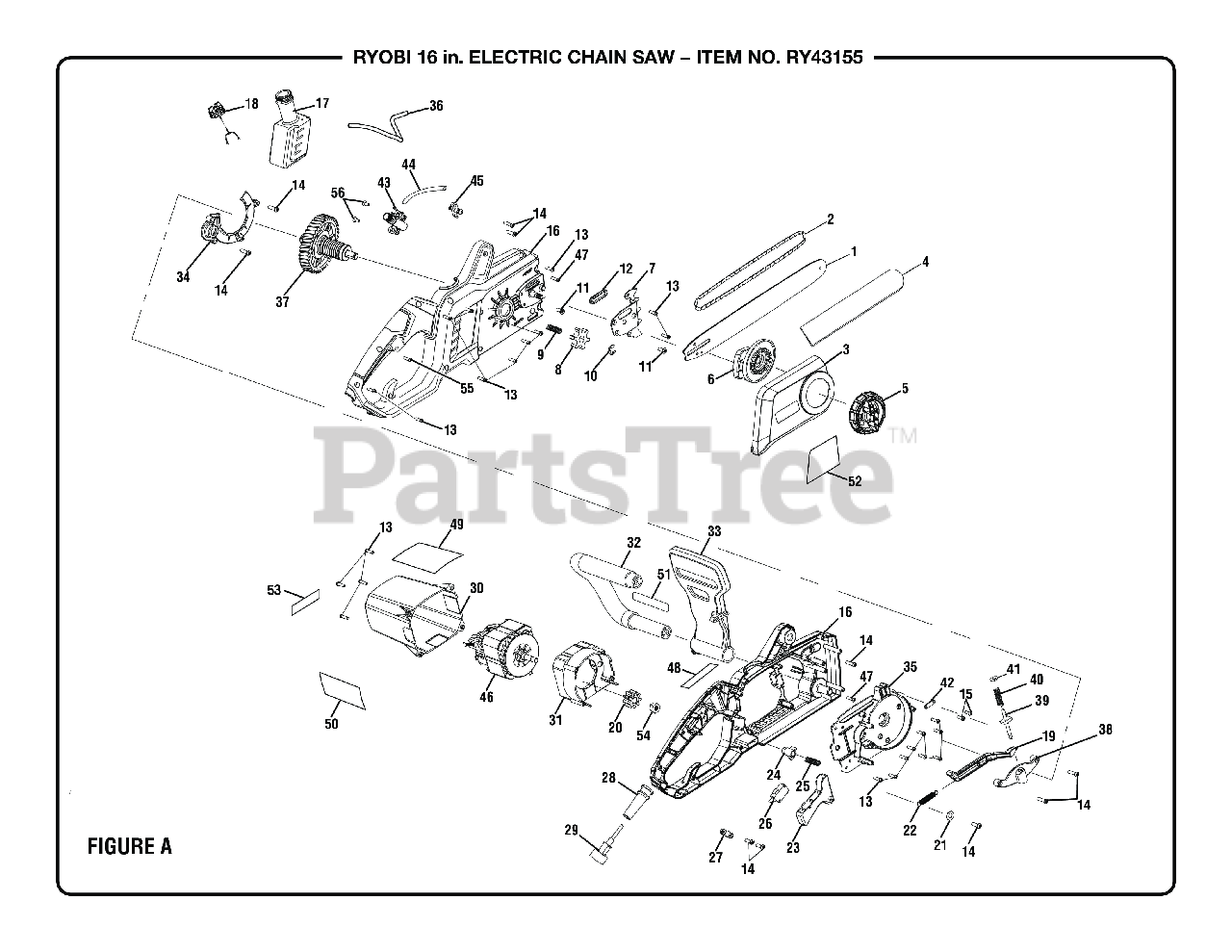

General Assembly Parts Diagram

  • Title

1

Homelite 099223001001

Guide Bar

$56.99

$

Usually ships in 3-7 days

0

2

Homelite 099223001002

Chain

$69.99

$

Usually ships in 3-7 days

0

3

Homelite 099223001003

Bar Cover Assembly (Inc. Key No. 52)

$5.49

$

Usually ships in 3-7 days

0

4

Homelite 099223001004

Scabbard

$16.99

$

Usually ships in 3-7 days

0

5

Homelite 099223001005

Chain Adjusting Knob Assembly

$13.99

$

Usually ships in 3-7 days

0

6

Homelite 099223001006

Chain Tensioner Assembly

$20.99

$

In Stock, only 1 left!

0

7

Homelite 099223001007

Guide Plate w/Spike Bar

$4.99

$

Usually ships in 3-7 days

0

8

Homelite 099223001008

Chain Sprocket

$4.49

$

Usually ships in 3-7 days

0

9

Homelite 099223001009

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 099223001010

E-Clip (Retaining Ring)

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 099223001011

Screw (M4 x 10 mm, Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 099223001012

Seal Ring

$4.49

$

Usually ships in 3-7 days

0

13

Homelite 099223001013

Screw (M4 x 16 mm, Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 099223001014

Screw (M4 x 12 mm, Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 099223001015

Screw (M3 x 8 mm, Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

16

Homelite 099223001016

Housing Assemblly (Inc. Key No. 48)

$65.99

$

Usually ships in 3-7 days

0

17

Homelite 099223001017

Oil Tank Assembly

$7.99

$

Usually ships in 3-7 days

0

18

Homelite 099223001018

Oil Tank Cap Assembly

$10.99

$

Usually ships in 3-7 days

0

19

Homelite 099223001019

Push Rod

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 099223001050

Sprocket

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 099223001021

Washer

$4.49

$

Usually ships in 3-7 days

0

22

Homelite 099223001022

Compression Spring

$3.99

$

Usually ships in 3-7 days

0

23

Homelite 099223001023

Trigger

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 099223001024

Lock-Off Button

$9.99

$

Usually ships in 3-7 days

0

25

Homelite 099223001025

Compression Spring

$3.99

$

Usually ships in 3-7 days

0

26

Homelite 099223001026

Switch

$6.99

$

Usually ships in 3-7 days

0

27

Homelite 099223001027

Cord Clamp

$3.99

$

Usually ships in 3-7 days

0

28

Homelite 099223001028

Bend Relief

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 099223001029

Power Cord

$12.99

$

Usually ships in 3-7 days

0

30

Homelite 099223001030

Motor Cover (Inc. Key Nos. 49-50 & 53)

$12.99

$

Usually ships in 3-7 days

0

31

Homelite 099223001031

Front Motor Bracket

$5.99

$

Usually ships in 3-7 days

0

32

Homelite 099223001032

Front Handle

$17.99

$

Usually ships in 3-7 days

0

33

Homelite 099223001033

Front Handle Guard (Inc. Key No. 51)

$14.99

$

Usually ships in 3-7 days

0

34

Homelite 099223001034

Dust Shield

$9.49

$

Usually ships in 3-7 days

0

35

Homelite 099223001035

Motor Bracket

$7.99

$

Usually ships in 3-7 days

0

36

Homelite 099223001036

Oil Tube

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 099223001037

Output Shaft Gear Assembly

$74.99

$

Usually ships in 3-7 days

0

38

Homelite 099223001038

Brake Bar Plate

$10.99

$

Usually ships in 3-7 days

0

39

Homelite 099223001039

Brake Bar

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 099223001040

Compression Spring

$3.99

$

Usually ships in 3-7 days

0

41

Homelite 099223001041

Washer

$4.49

$

Usually ships in 3-7 days

0

42

Homelite 099223001042

Clamp (Brake Bar)

$4.49

$

Usually ships in 3-7 days

0

43

Homelite 099223001043

Oil Pump

$16.99

$

Usually ships in 3-7 days

0

44

Homelite 099223001044

Oil Tube

$4.49

$

Usually ships in 3-7 days

0

45

Homelite 099223001045

Oil Outlet

$6.49

$

Usually ships in 3-7 days

0

46

Homelite 099223001046

Motor Assembly

$177.99

$

Usually ships in 3-7 days

0

47

Homelite 099223001047

Screw (M5 x 20 mm, Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

48

Homelite 941851243

Data Label

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 941851244

Danger/Warning Top Label

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 941851245

Warning Side Label

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 941851246

Warning Icons Label (FR/SP)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940705432

Logo Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 941545002

Logo Label

$

$

Not available

54

Homelite 099223001051

Flange Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 099223001048

Screw (M3 x 12 mm, Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

56

Homelite 099223001049

Screw (M3 x 8 mm, Pan Hd.)

$4.49

$

Usually ships in 3-7 days

0

Homelite 995000890

Operator's Manual

$

$

Not available
