RY 43160 - Ryobi Pole Saw, Electric, Rev 05 (2019-01) Section "A" Parts Diagram

Pole Saw, Electric, Rev 05

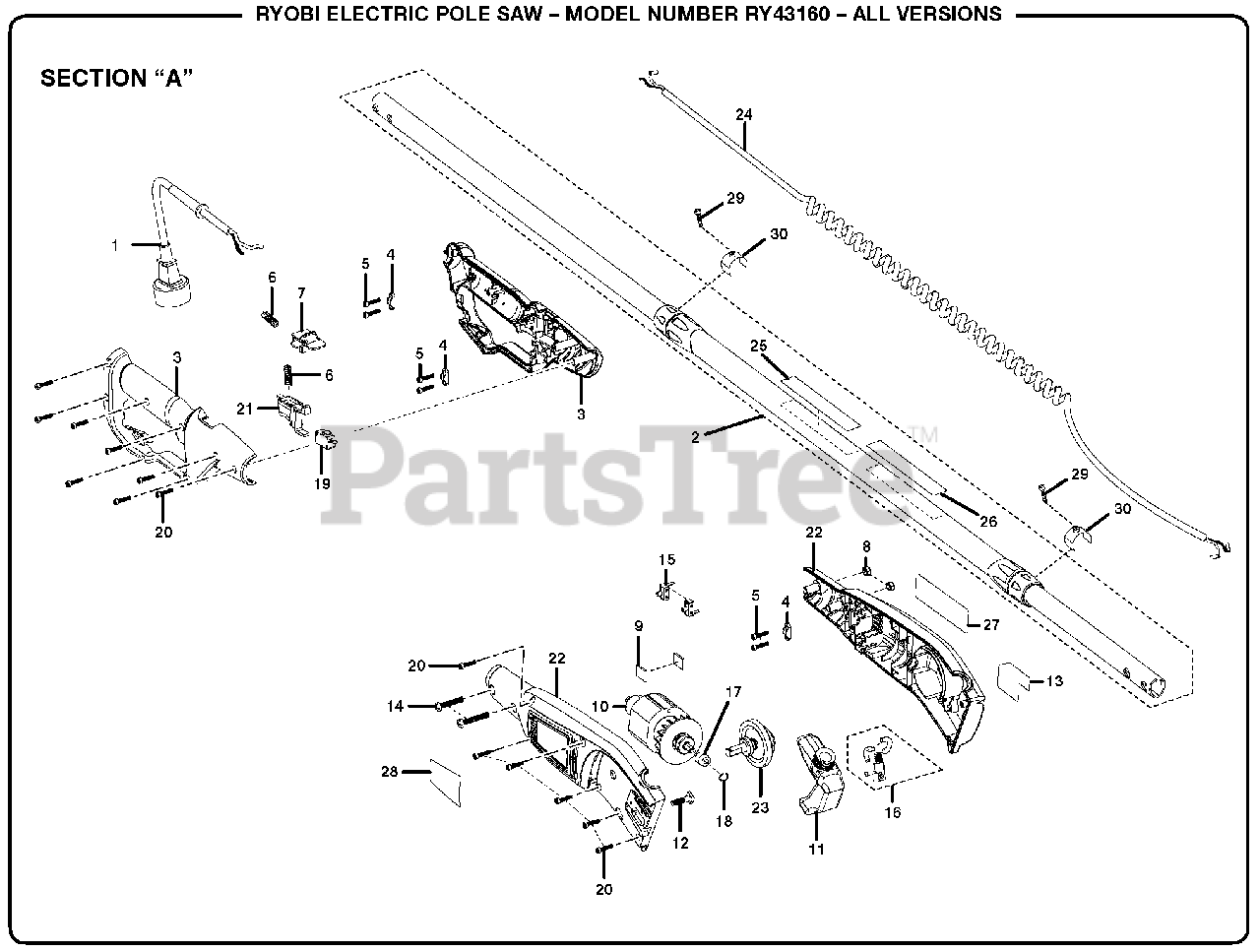

Section "A" Parts Diagram

  • Title

1

Homelite 31305163G

Power Cord

$

$

Not available

2

Homelite 31309152-3G

Pole Assembly
(Superseded to 31101589G)

Note: (Incl. Key Nos. 25-26)

$

$

Not available

3

Homelite 31302152B-3G

Handle Assembly

$

$

Not available

4

Homelite 3410801G

Cord Clamp

$

$

Not available

5

Homelite 3220905G

Screw (M4 x 12 mm)

$

$

Not available

6

Homelite 33402161G

Compression Spring

$

$

Not available

7

Homelite 34110152-3G

Lock-off Button

$

$

Not available

8

Homelite 32907152G

Lock Nut (M6)

$

$

Not available

9

Homelite 34204152G

Rubber Pad

$

$

Not available

10

Homelite 31311152G

Motor Assembly

$

$

Not available

11

Homelite 31314152G

Oil Tank Assembly

$

$

Not available

12

Homelite 33203152G

Bar Stud (1/4-28)

$

$

Not available

13

Homelite 941588003

Data Label (English)

$

$

Not available

14

Homelite 32906152G

Screw (M6 x 32 mm)

$

$

Not available

15

Homelite 36901152G

Brush Assembly

$

$

Not available

16

Homelite 31313152G

Oil Pump Assembly

$

$

Not available

17

Homelite 33205152G

Pinion

$

$

Not available

18

Homelite 32918152G

Retaining Ring

$

$

Not available

19

Homelite 36303152G

Switch

$

$

Not available

20

Homelite 3220106G

Screw (M4 x 18 mm)

$

$

Not available

21

Homelite 34118152-3G

Trigger

$

$

Not available

22

Homelite 31301152-3G

Housing Assembly

$

$

Not available

23

Homelite 31303152-1G

Output Shaft Assembly

$

$

Currently unavailable

24

Homelite 31310152G

Spring Cord Assembly

$

$

Not available

25

Homelite 940657051

Warning Label

$

$

Not available

26

Homelite 941107002

Data Label (French/Spanish)

$

$

Not available

27

Homelite 940051065

Logo Label (Left)

$

$

Not available

28

Homelite 940114416

Logo Label (Right)

$

$

Not available

29

Homelite 32207152G

Screw (M3 x 4 mm)

$

$

Not available

30

Homelite 33302163AG

Lock Spring

$

$

Not available
