RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 05 (2021-05) FIGURE F - DECK ASSEMBLY Parts Diagram

38" 48V Riding Mower, Rev 05

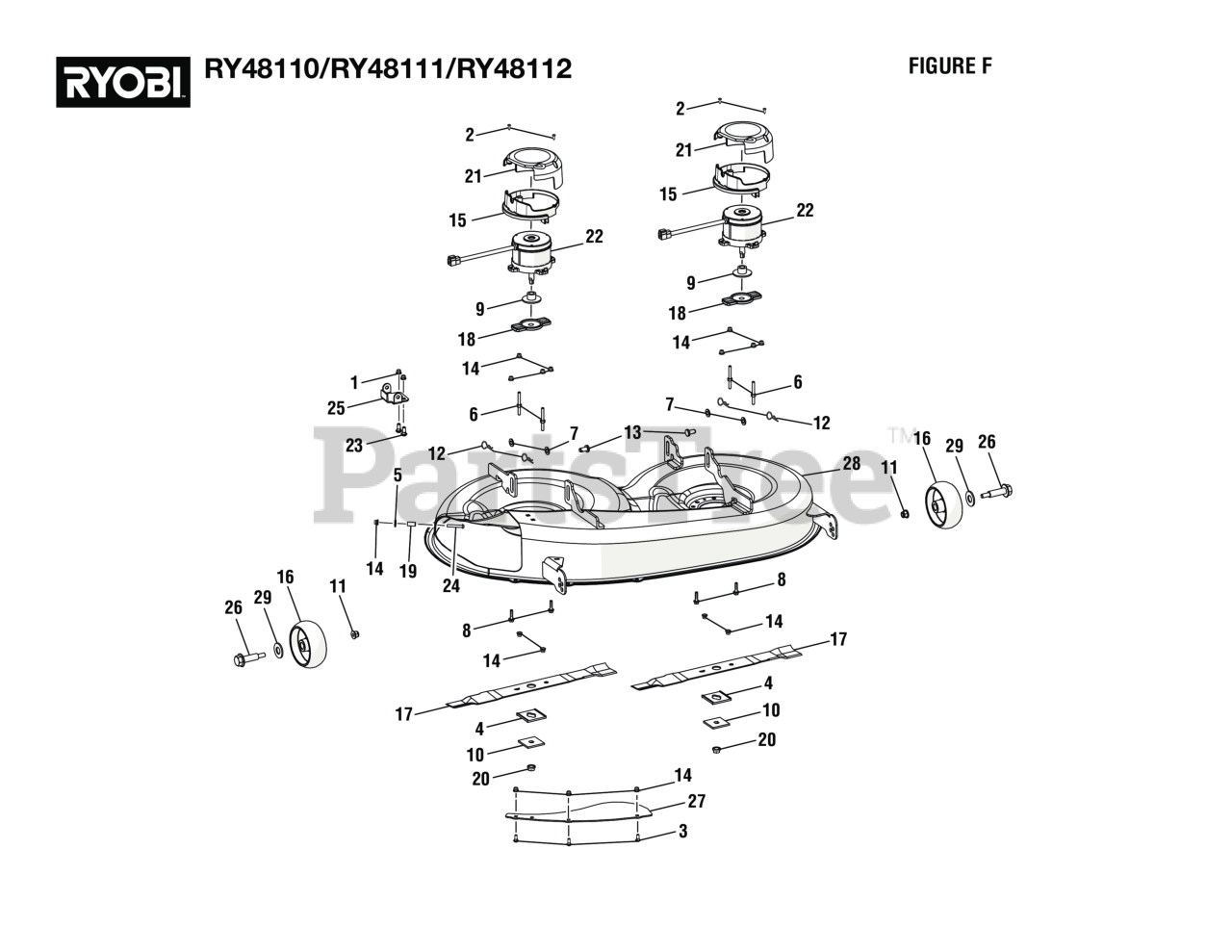

FIGURE F - DECK ASSEMBLY Parts Diagram

  • Title

1

Homelite 994867001

Flange Nut (M8) (For Drive Motor Controller V)

$1.49

$

In Stock, Qty 5

0

2

Homelite 996291001

Screw (ST4.2 x 13 mm)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 994791001

Carriage Bolt (M6 x 16 mm)

$1.99

$

In Stock, only 4 left!

0

4

Homelite 996259001

Blade Spacer

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 996034001

Washer (OD18 x ID6.4 x 1.6t)

$2.49

$

In Stock, Qty 14

0

6

Homelite 996201001

Threaded Stud (M6 x 35 mm)

$10.99

$

Usually ships in 3-7 days

0

7

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$2.49

$

In Stock, Qty 5

0

8

Homelite 996057001

Flange Bolt (M6 x 25 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 996258001

Motor Axle Bushing

$14.99

$

Usually ships in 3-7 days

0

10

Homelite 996257001

Metal Blade Retainer

$2.99

$

In Stock, only 2 left!

0

11

Homelite 996192001

Lock Nut (M10 x 1.5 mm)

$1.49

$

In Stock, only 2 left!

0

12

Homelite 996356001

Cotter Pin (10 mm)

$2.49

$

In Stock, Qty 8

0

13

Homelite 996262001

Lifting Plate Pin

$2.49

$

In Stock, Qty 6

0

14

Homelite 996251001

Flange Lock Nut (M6 x 1.00)

$1.49

$

In Stock, Qty 7

0

15

Homelite 994903001

Motor Cover

$

$

Not available

16

Homelite 996265001

Front Deck Roller Wheel (124.5 Dia.)

$18.99

$

Usually ships in 3-7 days

0

17

Homelite 994869001

Mulching Blade

$

$

Not available

18

Homelite 996256001

Blade Holder
(Superseded to 526921001)

$1.49

$

In Stock, only 3 left!

0

19

Homelite 996039001

Deck Bagger Chute Mounting Shaft

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 996261001

Flange Lock Nut (M10 x 1.25)

$1.49

$

In Stock, Qty 9

0

21

Homelite 994908001

Motor Cover Cap

$3.99

$

Usually ships in 3-7 days

0

22

Homelite 996260001

Deck Motor

$291.99

$

In Stock, only 1 left!

0

23

Homelite 996050001

Carriage Bolt (M8 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 996250001

Screw (M6 x 40, Soc Hd.)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 994904001

Mounting Mulch Door Bracket

$7.49

$

Usually ships in 3-7 days

0

26

Homelite 996205001

Shoulder Bolt (M10 x 70 mm)

$11.99

$

In Stock, only 1 left!

0

27

Homelite 994868001

Butterfly Bracket

$29.99

$

In Stock, only 1 left!

0

28

Homelite 996235001

Mower Deck w/Brackets

$502.99

$

Usually ships in 3-7 days

0

29

Homelite 996355001

Spring Washer (OD20.5 x ID17 x 0.3t)

$2.49

$

In Stock, only 2 left!

0
