RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 05 (2021-05) FIGURE I - DECK LIFTING ASSEMBLY Parts Diagram

38" 48V Riding Mower, Rev 05

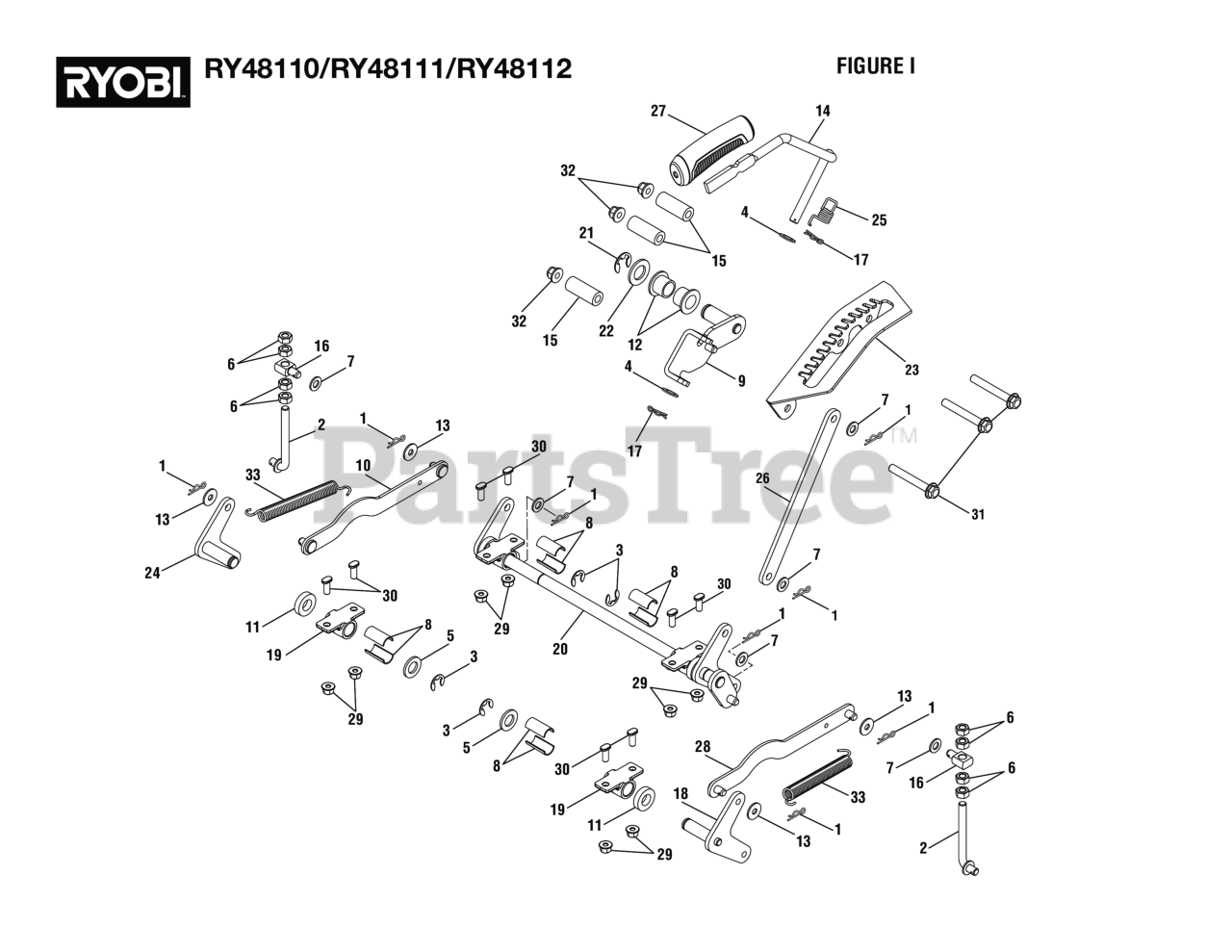

FIGURE I - DECK LIFTING ASSEMBLY Parts Diagram

  • Title

1

Homelite 996264001

Cotter Pin (10 mm)

$1.49

$

In Stock, Qty 20+

0

2

Homelite 994829001

Hanger Stud

$6.49

$

Usually ships in 3-7 days

0

3

Homelite 994833001

E-Ring Clip (12 mm)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 994891001

Washer (OD24 x ID13 x 2.5t)

$

$

Not available

5

Homelite 994763001

Washer (OD30 x ID17 x 3t)

$1.49

$

In Stock, only 3 left!

0

6

Homelite 996263001

Nut (M10)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$2.49

$

In Stock, only 2 left!

0

8

Homelite 994846001

Half Bushing Sleeve

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 996200001

Deck Lift Pivot Assembly

$

$

Not available

10

Homelite 996198001

Right Linkage Assembly

$9.49

$

Usually ships in 3-7 days

0

11

Homelite 994852001

Deck Lift Spacer

$

$

Not available

12

Homelite 996004001

Pivot Plastic Sleeve

$

$

Not available

13

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$2.49

$

In Stock, only 2 left!

0

14

Homelite 994885001

Lever Rod

$11.99

$

Usually ships in 3-7 days

0

15

Homelite 996226001

Spacer (10.5 x 20 x 51)

$

$

Not available

16

Homelite 994828001

Hanger Stud Mount

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 994892001

Cotter Pin (12 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 996196001

Front Lifting Axle, Left

$

$

Not available

19

Homelite 994845001

Frame Mount Hanger Bracket

$21.99

$

In Stock, only 2 left!

0

20

Homelite 996199001

Rear Lifting Axle

$109.99

$

Usually ships in 3-7 days

0

21

Homelite 996267001

E-Ring Clip (15 mm)

$

$

Not available

22

Homelite 994766001

Washer (OD37 x ID21 x 0.3t)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 994921001

Detent Plate (4 mm)

$21.99

$

Usually ships in 3-7 days

0

24

Homelite 996195001

Front Lifting Axle, Right

$11.99

$

Usually ships in 3-7 days

0

25

Homelite 994888001

Torsion Spring

$

$

Not available

26

Homelite 994887001

Deck Lift Lever Double Link

$5.99

$

Usually ships in 3-7 days

0

27

Homelite 994972001

Decklift Handle

$7.99

$

Usually ships in 3-7 days

0

28

Homelite 996197001

Linkage Assembly, Left

$

$

Not available

29

Homelite 994867001

Flange Nut (M8) (For Drive Motor Controller V)

$1.49

$

In Stock, Qty 5

0

30

Homelite 996219001

Bolt (M8 x 25 mm, Flush Mount)

$1.49

$

In Stock, only 1 left!

0

31

Homelite 996253001

Flange Bolt (M10 x 75 mm, Hex Hd.)

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 996192001

Lock Nut (M10 x 1.5 mm)

$1.49

$

In Stock, only 2 left!

0

33

Homelite 994911001

Tension Spring (Deck)

$

$

Not available
