RY 48112 (099749003) - Ryobi 38" 48V Riding Mower, Rev 05 (2021-05) FIGURE L - BRAKE PEDAL ASSEMBLY Parts Diagram

38" 48V Riding Mower, Rev 05

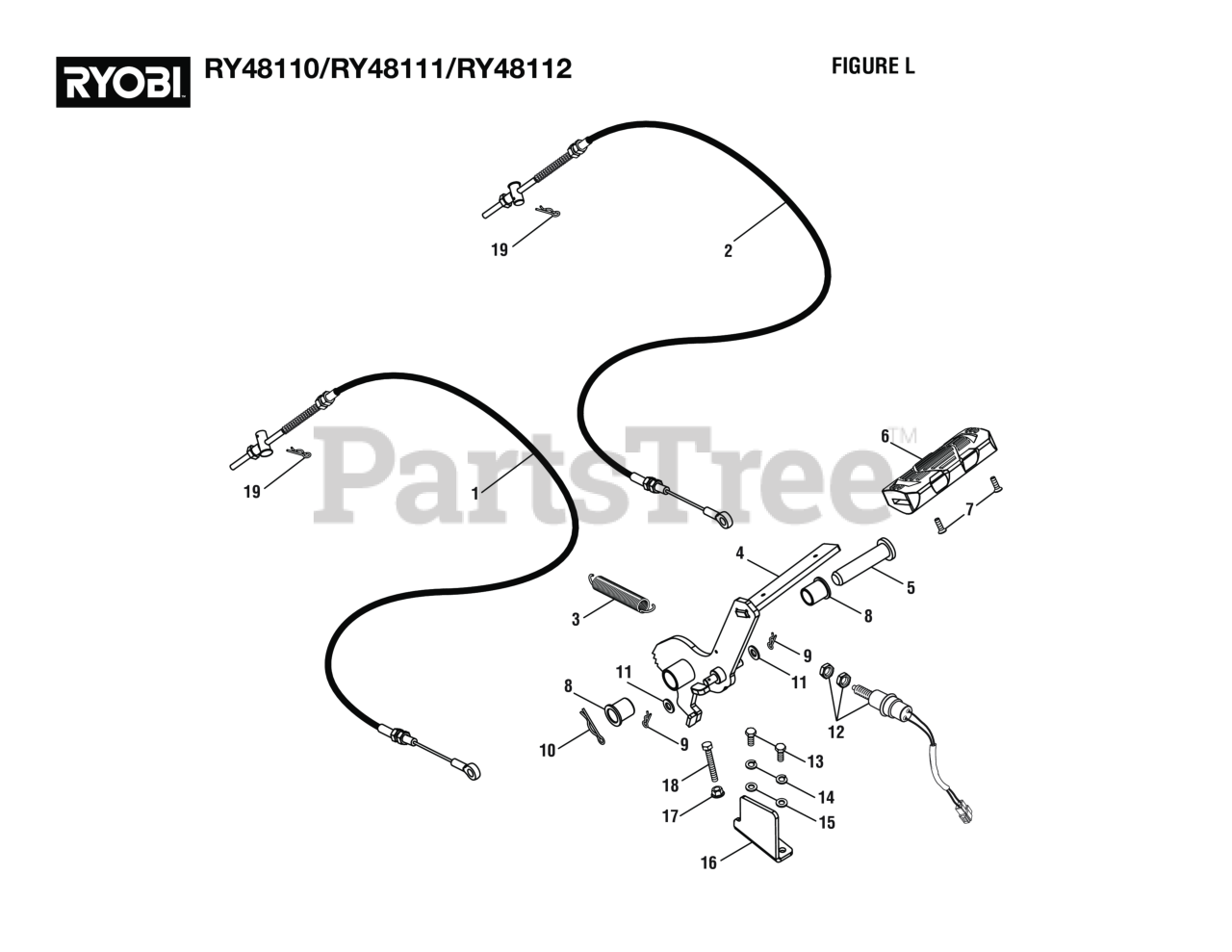

FIGURE L - BRAKE PEDAL ASSEMBLY Parts Diagram

  • Title

1

Homelite 996000001

Right Brake Cable

$

$

Not available

2

Homelite 994999001

Left Brake Cable

$

$

Not available

3

Homelite 994838001

Pedal Spring

$

$

Not available

4

Homelite 994927001

Lever

$

$

Not available

5

Homelite 994929001

Clevis Pin

$

$

Not available

6

Homelite 994931001

Brake Pedal

$

$

Not available

7

Homelite 994937001

Screw (M5 x 16 mm, Flat Hd.)

$

$

Not available

8

Homelite 994928001

Bushing

$

$

Not available

9

Homelite 996013001

Cotter Pin (8 mm)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 994930001

Lock Pin (16 mm)

$

$

Not available

11

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 994837001

Brake Switch Assembly

$31.99

$

In Stock, only 1 left!

0

13

Homelite 996282001

Bolt (M6 x 16 mm, Hex Hd.)

$

$

Not available

14

Homelite 996058001

Spring Washer (M6) (For Deck Motor Controllers T & U)

$

$

Not available

15

Homelite 996281001

Washer (OD12 x ID6.4 x 1.6t) (For Deck Motor Controllers T & U)

$

$

Not available

16

Homelite 996206001

Brake Switch Guard

$

$

Not available

17

Homelite 994792001

Flange Nut (M6)

$

$

Not available

18

Homelite 996061001

Bolt (M6 x 45 mm, Hex Hd.)

$

$

Not available

19

Homelite 994892001

Cotter Pin (12 mm)

$1.99

$

Usually ships in 3-7 days

0
