RY 48130 (099749020) - Ryobi 30" 48V Riding Mower, Rev 01 (2020-03) FIGURE G Parts Diagram

30" 48V Riding Mower, Rev 01

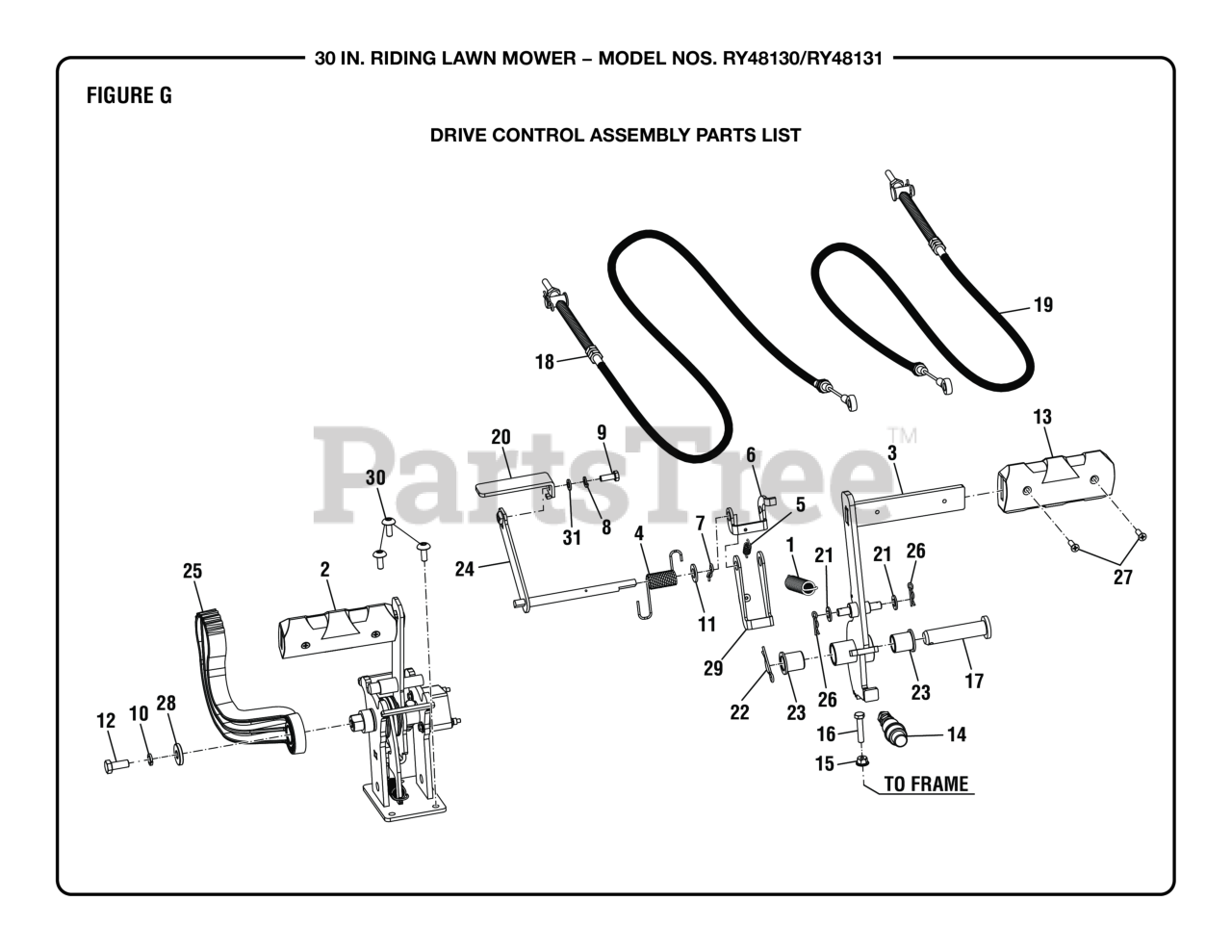

FIGURE G Parts Diagram

  • Title

1

Homelite 994838001

Pedal Spring

$6.49

$

Usually ships in 3-7 days

0

2

Homelite 997331001

Drive Assembly

$404.99

$

Usually ships in 3-7 days

0

3

Homelite 997281001

Brake Pedal Lever

$88.99

$

Usually ships in 3-7 days

0

4

Homelite 997328001

Return Spring

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 997358001

Spring (Parking Brake)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 997282001

Limiter

$8.49

$

Usually ships in 3-7 days

0

7

Homelite 996264001

Cotter Pin (10 mm)

$2.99

$

In Stock, Qty 20+

0

8

Homelite 996058001

Spring Washer (M6) (For Deck Motor Controllers T & U)

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 996282001

Bolt (M6 x 16 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

10

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$4.49

$

In Stock, Qty 5

0

12

Homelite 997374001

Hexagon Bolt (M8 x 20 mm)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 994931001

Brake Pedal

$

$

Not available

14

Homelite 994837001

Brake Switch Assembly

$63.99

$

Usually ships in 3-7 days

0

15

Homelite 994792001

Flange Nut (M6)

$

$

Not available

16

Homelite 997376001

Bolt (M6 x 30 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 994929001

Clevis Pin

$13.99

$

Usually ships in 3-7 days

0

18

Homelite 997280001

Brake Cable (Right)

$24.99

$

Usually ships in 3-7 days

0

19

Homelite 997279001

Brake Cable (Left)

$22.99

$

Usually ships in 3-7 days

0

20

Homelite 997330001

Parking Brake Pedal

$9.99

$

Usually ships in 3-7 days

0

21

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$3.49

$

Usually ships in 3-7 days

0

22

Homelite 994930001

Lock Pin (16 mm)

$2.99

$

Usually ships in 3-7 days

0

23

Homelite 994928001

Bushing

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 997329001

Parking Brake Lever

$43.99

$

Usually ships in 3-7 days

0

25

Homelite 997343001

Reverse Pedal

$26.99

$

Usually ships in 3-7 days

0

26

Homelite 996013001

Cotter Pin (8 mm)

$3.49

$

In Stock, only 1 left!

0

27

Homelite 994937001

Screw (M5 x 16 mm, Flat Hd.)

$

$

Not available

28

Homelite 994954001

Washer (OD12.5 x ID8.4 x 4t)

$3.49

$

Usually ships in 3-7 days

0

29

Homelite 997404001

Parking Brake Latch

$11.99

$

Usually ships in 3-7 days

0

30

Homelite 994989001

Screw (M6 x 10 mm, Soc. Button Hd.)

$3.49

$

In Stock, Qty 5

0

31

Homelite 996281001

Washer (OD12 x ID6.4 x 1.6t) (For Deck Motor Controllers T & U)

$3.49

$

Usually ships in 3-7 days

0
