RY 48140 (099749046) - Ryobi 54" Zero-Turn Mower, Electric, Rev 02 (2022-01) FIGURE F Parts Diagram

54" Zero-Turn Mower, Electric, Rev 02

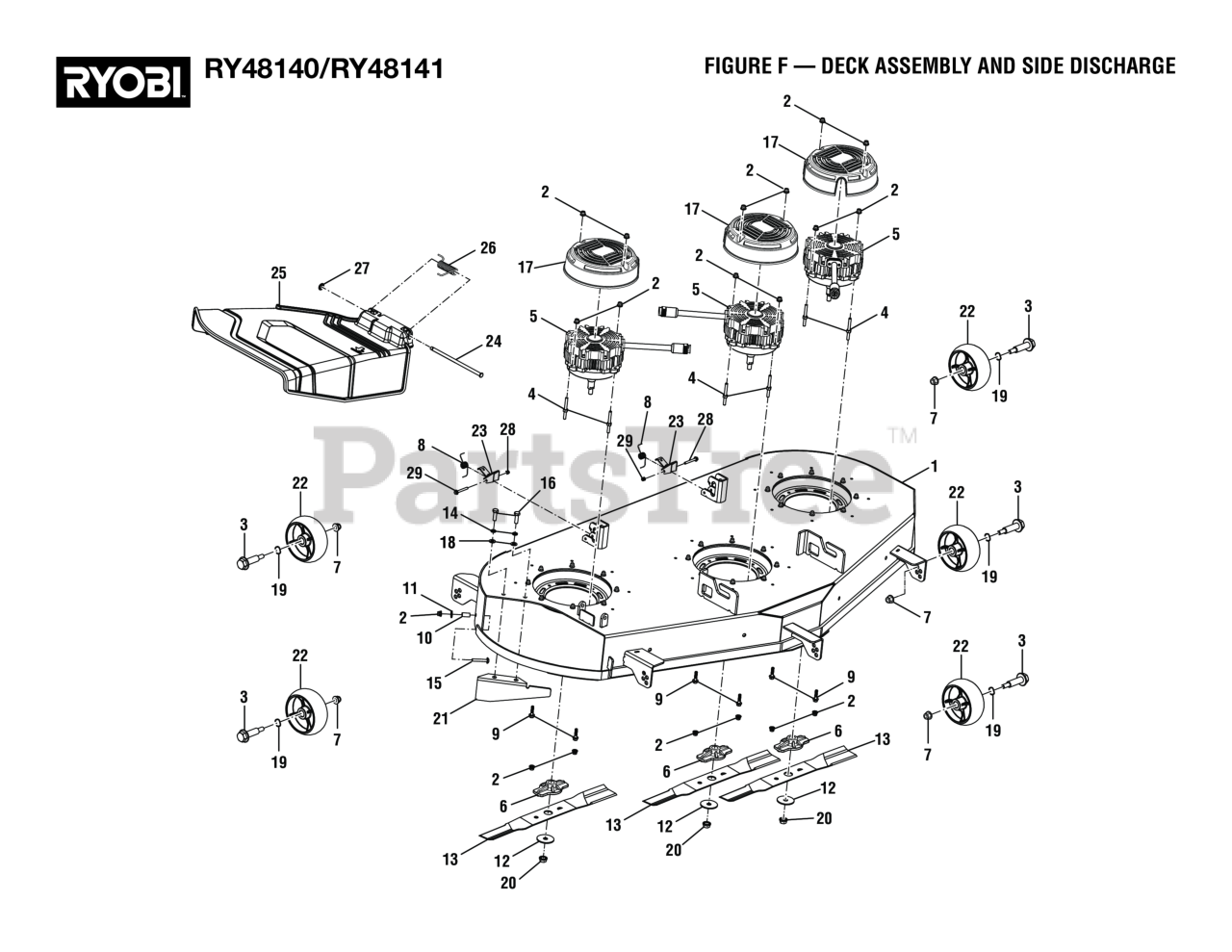

FIGURE F Parts Diagram

  • Title

1

Homelite 997462001

Deck, 54 in.

Note: (Inc. Key Nos. 8, 23, and 28-29)

$3077.99

$

Usually ships in 3-7 days

0

2

Homelite 996251001

Flange Lock Nut (M6 x 1.00)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 996205001

Shoulder Bolt (M10 x 70 mm)

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 996201001

Threaded Stud (M6 x 35 mm)

$21.99

$

In Stock, only 1 left!

0

5

Homelite 997684001

Deck Motor

$975.99

$

Usually ships in 3-7 days

0

6

Homelite 997027001

Blade Adapter

$9.99

$

In Stock, Qty 6

0

7

Homelite 996192001

Lock Nut (M10 x 1.5 mm)

$2.49

$

In Stock, only 2 left!

0

8

Homelite 997683001

Deck Clip Spring

$5.99

$

Usually ships in 3-7 days

0

9

Homelite 996057001

Flange Bolt (M6 x 25 mm, Hex Hd.)

$3.49

$

In Stock, only 1 left!

0

10

Homelite 996039001

Deck Bagger Chute Mounting Shaft

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 996034001

Washer (OD18 x ID6.4 x 1.6t)

$4.49

$

In Stock, Qty 14

0

12

Homelite 997028001

Blade Retainer Washer

$6.99

$

In Stock, only 2 left!

0

13

Homelite 997464001

Blade (18.5 in.)

$40.99

$

In Stock, only 3 left!

0

14

Homelite 994867001

Flange Nut (M8) (For Drive Motor Controller V)

$2.49

$

In Stock, only 4 left!

0

15

Homelite 996250001

Screw (M6 x 40, Soc Hd.)

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 996046001

Bolt (M8 x 25 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 997463001

Deck Motor Cover, Top

$17.99

$

In Stock, only 2 left!

0

18

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 996355001

Spring Washer (OD20.5 x ID17 x 0.3t)

$4.49

$

Usually ships in 3-7 days

0

20

Homelite 996261001

Flange Lock Nut (M10 x 1.25)

$2.99

$

In Stock, Qty 9

0

21

Homelite 997474001

Deck Baffle (42 in.)

$11.99

$

In Stock, only 1 left!

0

22

Homelite 996265001

Front Deck Roller Wheel (124.5 Dia.)

$37.99

$

Usually ships in 3-7 days

0

23

Homelite 997479001

Deck Clip Latch

$11.99

$

Usually ships in 3-7 days

0

24

Homelite 997466001

Hinge Pin

$8.49

$

In Stock, only 3 left!

0

25

Homelite 997465001

Side Discharge Chute

$76.99

$

In Stock, only 3 left!

0

26

Homelite 994980001

Torsion Spring (19 x 62 x 3.02t)

$9.99

$

In Stock, only 2 left!

0

27

Homelite 996292001

Retainer Clip

$3.49

$

Usually ships in 3-7 days

0

28

Homelite 997477001

Flange Nut (M5)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 997476001

Bolt (M5 x 45 mm)

$2.49

$

Usually ships in 3-7 days

0
