RY 5020 (090840001) - Ryobi Chainsaw, 50cc, Rev 03 (2020-02) FIGURE C Parts Diagram

Chainsaw, 50cc, Rev 03

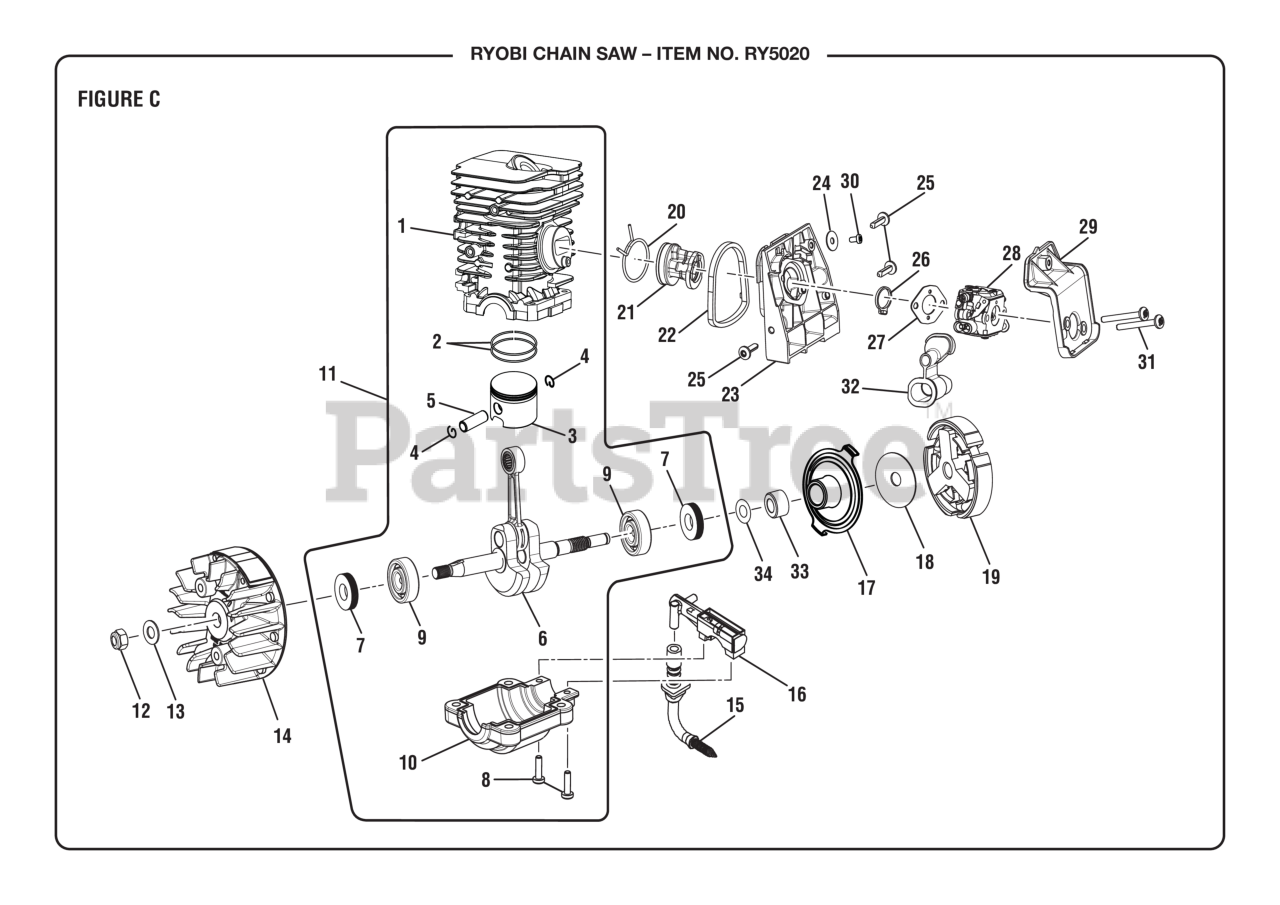

FIGURE C Parts Diagram

  • Title

1

Homelite 640200022

Cylinder

$35.99

$

Usually ships in 3-7 days

0

2

Homelite 678747006

Piston Ring

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 640350019

Piston

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 678053001

Spring Retainer

$2.49

$

In Stock, only 3 left!

0

5

Homelite 620392001

Piston Pin

$2.99

$

In Stock, only 1 left!

0

6

Homelite 309160011

Crankshaft Assembly

$66.99

$

Usually ships in 3-7 days

0

7

Homelite 570220004

Shaft Seal

$4.49

$

In Stock, only 2 left!

0

8

Homelite 660627001

SCREW, (8/32 X 5/8 in. PAN HD TORX)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 671089002

Ball Bearing

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 640843004

Crankcase

$16.99

$

Usually ships in 3-7 days

0

11

Homelite 309890010

Short Block Assembly

$

$

Not available

12

Homelite 678067001

Lock Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 631049001

Washer (ID9 x OD17.7 x 1.1t)
(Superseded to PS84065)

$

$

Not available

14

Homelite 309010014

Flywheel Assembly

$30.99

$

Usually ships in 3-7 days

0

15

Homelite 300950001

OIL INTAKE TUBE W/FILTER
(Superseded to PA01037)

$

$

Not available

16

Homelite 300945001

Oil Pump Assembly
(Superseded to PA01396)

$

$

Not available

17

Homelite 313006001

Oil Pump Driver

$9.49

$

Usually ships in 3-7 days

0

18

Homelite 639743001

Thrust Washer

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 308536002

Clutch Assembly

$

$

Not available

20

Homelite 671267001

Wire Clamp
(Superseded to PS04309)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 570243001

INTAKE BOOT
(Superseded to PS02794)

$15.99

$

Usually ships in 3-7 days

0

22

Homelite 518047001

Carburetor Adaptor Seal
(Superseded to PS04374)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 308081002

Carburetor Adapter

$8.49

$

Usually ships in 3-7 days

0

24

Homelite 671072001

Flat Washer
(Superseded to 12789)

$

$

Not available

25

Homelite 660629001

Screws (10-14 x 3/4 in., T25 Torx Pan Hd. T.F.)
(Superseded to 82563)

$2.49

$

In Stock, Qty 6

0

26

Homelite 518045001

PLATE, CARBURETOR
(Superseded to PS04375)

$

$

Not available

27

Homelite 900886002

Carburetor Gasket

$2.49

$

In Stock, Qty 5

0

28

Homelite 308054205

Carburetor Assembly

$

$

Not available

29

Homelite 518048001

AIR FILTER BASE
(Superseded to PA01284)

$

$

Not available

30

Homelite 660634001

Screw (#8-16 x 5/16 in., T25 Torx Pan Hd. T.F.)

$2.49

$

In Stock, Qty 20+

0

31

Homelite 660655001

Screw (10-32 x 1 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 570242002

Grommet

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 696418002

Bearing (Oil Pump Driver)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 638289001

Washer (Oil Pump Drive Gear)

$2.49

$

In Stock, only 2 left!

0
