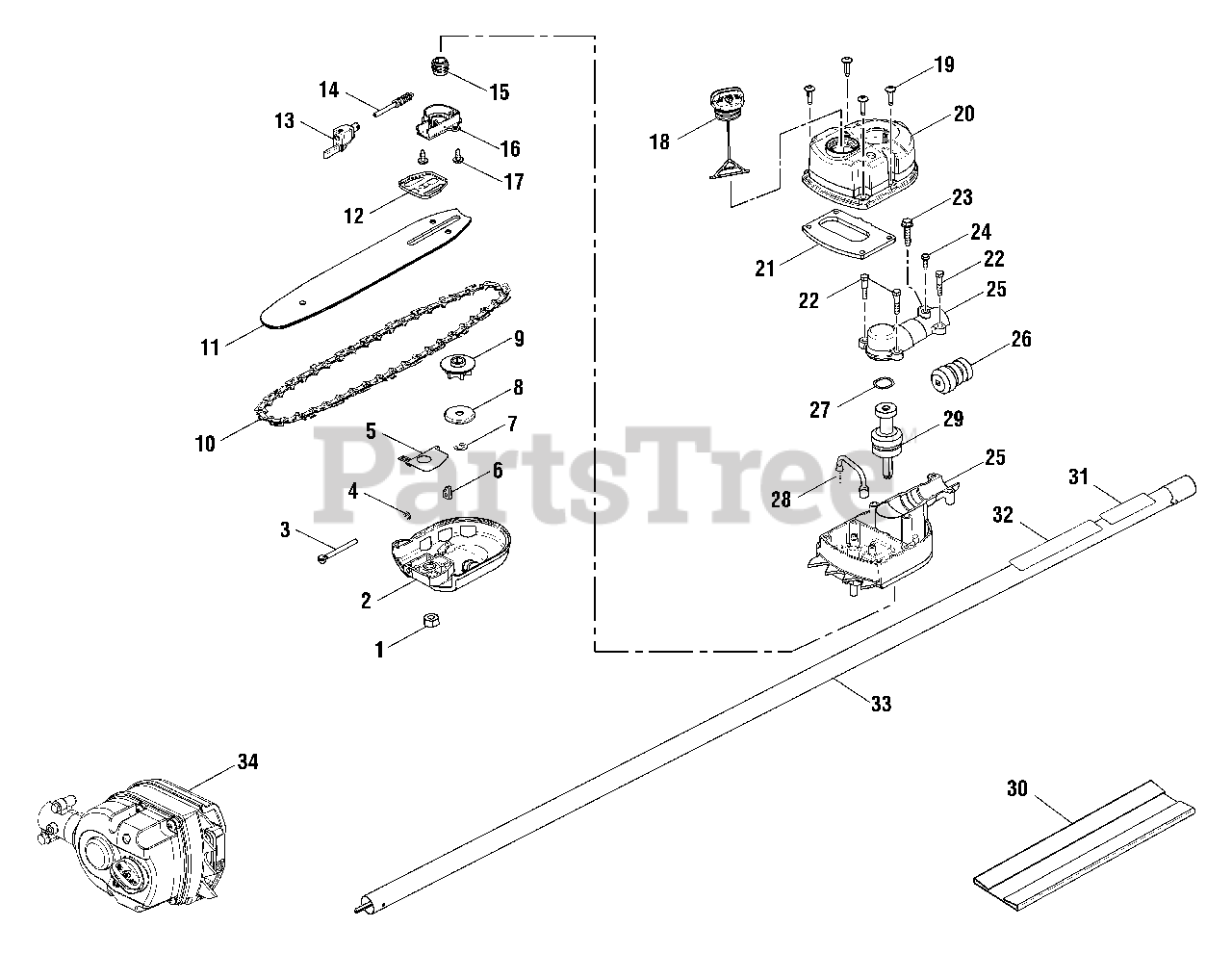

RY 52002 (PC 30) - Ryobi Pole Saw Bar & Chain / Pruner Assembly Parts Diagram

Pole Saw

Bar & Chain / Pruner Assembly Parts Diagram

  • Title

1

Homelite 86163001

HEX NUT (M8)

Note: Purchase Locally

$

$

Currently unavailable

2

Homelite PA01333

BAR CLAMP ASSEMBLY
(Superseded to 308521001)

$

$

Not available

3

Homelite 986164001

GUIDE BAR ADJUSTMENT SCREW (M5 X 50 mm)

$

$

Not available

4

Homelite 86165001

RETAINING RING (4 mm)

Note: Purchase Locally

$

$

Currently unavailable

5

Homelite PS04974

GUIDE BAR PLATE
(Superseded to 638281001)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 986185001

GUIDE BAR ADJUSTING PIN

$3.49

$

In Stock, Qty 7

0

7

Homelite 86162001

E-RING (6 mm)

Note: Purchase Locally

$

$

Currently unavailable

8

Homelite 04939A

CUPPED WASHER
(Superseded to 631060001)

$

$

Not available

9

Homelite 985224001

SPROCKET
(Superseded to 610618001)

$

$

Not available

10

Homelite PS03873

CHAIN (3/8, .043, 10)
(Superseded to 690583002)

$

$

Not available

11

Homelite 983872002

GUIDE BAR
(Superseded to 983872001)

$54.99

$

In Stock, only 1 left!

0

12

Homelite PS04554

BAR PAD PLATE
(Superseded to 090038001028)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 986166001

OIL PUMP SEAL ASSEMBLY

$22.99

$

Usually ships in 3-7 days

0

14

Homelite 985221001

OIL PINION GEAR & PLUNGER
(Superseded to 308524001)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 985223001

WORM GEAR

$30.99

$

Usually ships in 3-7 days

0

16

Homelite 986160001

OIL PUMP HOUSING W/CAM PIN ASSEMBLY
(Superseded to 308520001)

$5.99

$

In Stock, only 1 left!

0

17

Homelite 986161001

SCREW (M5 X 3 mm)

Note: Purchase Locally.

$2.49

$

Usually ships in 3-7 days

0

18

Homelite A07591

OIL CAP WITH RETAINER (PKG.)
(Superseded to 090038001001)

$2.49

$

In Stock, only 4 left!

0

19

Homelite 985895001

SCREW (M5 X 18 mm)

Note: Purchase Locally.

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 985896001

OIL TANK COVER ASSEMBLY
(Superseded to 090038001003)

$

$

Not available

21

Homelite 985265001

OIL COVER GASKET

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 986155001

SCREW (M5 X 25 mm, SHOULDER SCREW)

Note: Purchase Locally.

$

$

Not available

23

Homelite 986158001

SCREW (M5 X 25 mm)

Note: Purchase Locally.

$

$

Not available

24

Homelite PS05449

SCREW (10-24 X 1/2 in. HEX WASHER HD. TRI-LOBULAR)
(Superseded to 660911001)

Note: Purchase Locally.

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 090038001042

GEAR CASE & COVER ASSEMBLY
(Superseded to 308627001)

$

$

Not available

26

Homelite 985252001

PINION GEAR ASSEMBLY

$56.99

$

In Stock, only 1 left!

0

27

Homelite 985262001

WAVY WASHER

$2.49

$

Usually ships in 3-7 days

0

28

Homelite PA01487

PICK-UP TUBE ASSEMBLY

$

$

Not available

29

Homelite 985253001

OUTPUT SHAFT ASSEMBLY

$96.99

$

In Stock, only 1 left!

0

30

Homelite 983606001

BLADE COVER
(Superseded to 518405001)

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 985165001

EXPAND-IT LABEL

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 986173001

WARNING LABEL

$

$

Not available

33

Homelite 986186001

PRUNER BOOM ASSEMBLY (55 in.)

Note: (INC. KEY. NOS. 31 AND 32)

$

$

Not available

34

Homelite 986172001

PRUNER GEAR HEAD
(Superseded to 308400001)

Note: (INC. KEY. NOS. 1-9 AND 12-30)

$

$

Not available
