RY 52002 (PC 30) - Ryobi Pole Saw Engine Assembly Parts Diagram

Pole Saw

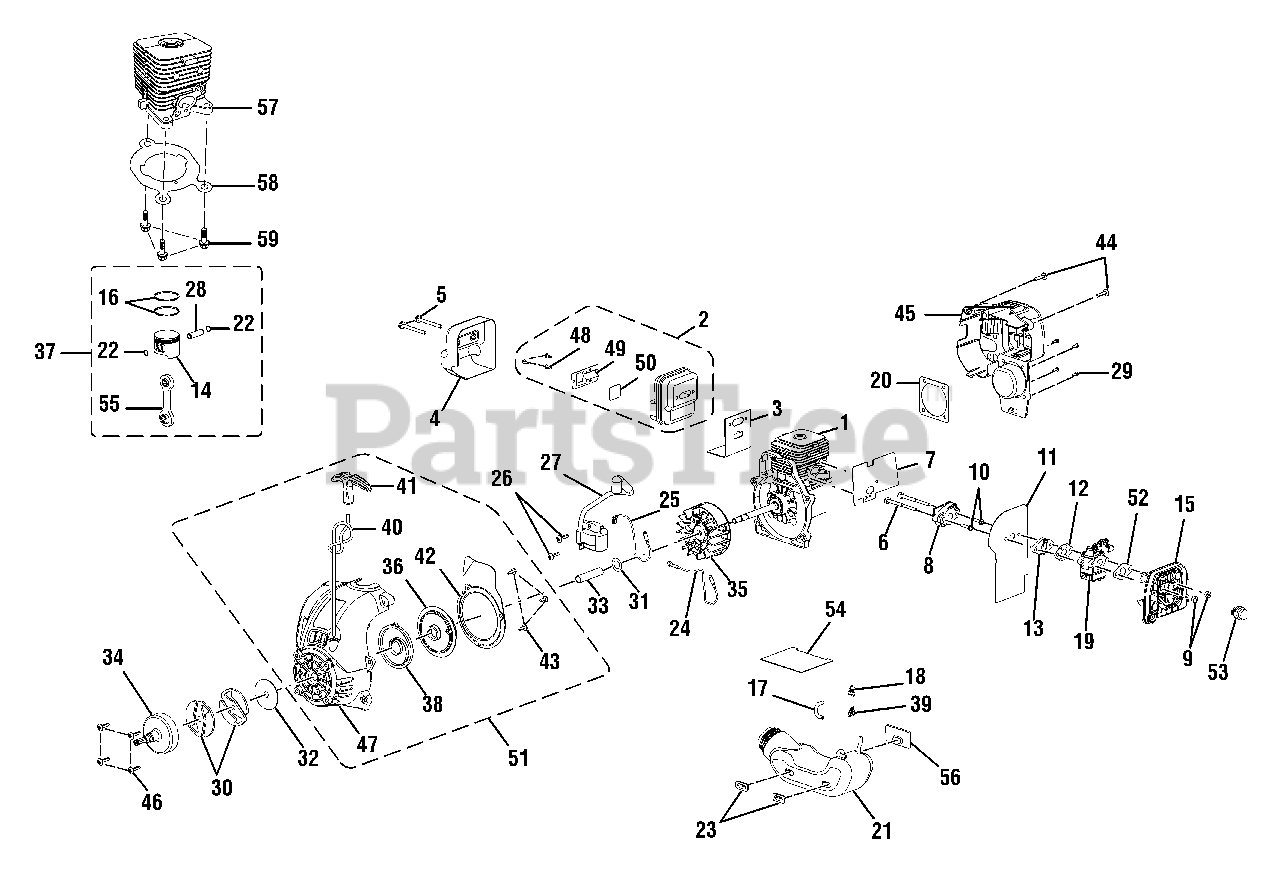

Engine Assembly Parts Diagram

  • Title

1

Homelite 985873001

SHORT BLOCK ASSEMBLY
(Superseded to 984867001)

$

$

Not available

2

Homelite 308092008

MUFFLER ASSEMBLY
(Superseded to 985869001)

$

$

Not available

3

Homelite 984760001

MUFFLER GASKET
(Superseded to 900994006)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 984743001

HEAT SHIELD

$

$

Not available

5

Homelite 88083

SCREW (10-24 X 2-1/8 in. TORX TRUSS HD. SEMS)
(Superseded to PS03999)

Note: Purchase Locally.

$

$

Not available

6

Homelite 660346002

BOLT (10-27 X 2-3/8 in. HEX HD.)

$

$

Not available

7

Homelite 985248001

HEAT DAM GASKET

$

$

Not available

8

Homelite 985430001

HEAT DAM

$

$

Not available

9

Homelite 81208

LOCK NUT (10-24)

Note: Purchase Locally.

$

$

Not available

10

Homelite 093221

SCREW (10-24 X 1 in. TORX PAN HD. SEMS)
(Superseded to 660662001)

Note: Purchase Locally.

$

$

Not available

11

Homelite 984834001

CARBURETOR GASKET

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 9071103

CARBURETOR GASKET

$

$

Not available

13

Homelite 984738001

SPACER

$

$

Not available

14

Homelite 985872001

PISTON W/PIN

$

$

Not available

15

Homelite 985530002

AIR FILTER BOX

$

$

Not available

16

Homelite 03179

PISTON RING 30cc
(Superseded to 690161005)

$

$

Not available

17

Homelite 0143908

RUBBER TUBING (2 in.)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 6970001

CLIP

$1.49

$

In Stock, Qty 5

0

19

Homelite 985893001

CARBURETOR

$

$

Not available

20

Homelite 06443A

GASKET, C/C COVER
(Superseded to 900954001)

$

$

Not available

21

Homelite 308181003

FUEL TANK W/CAP ASSEMBLY

$

$

Not available

22

Homelite 65261

RETAINING RING

$

$

Not available

23

Homelite 98792

BUMPER

$1.49

$

In Stock, only 3 left!

0

24

Homelite A06964

LEAD W/TERMINALS

$

$

Not available

25

Homelite A06963

LEAD

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 82540

SCREW (8-32 X 1 in. THREAD FORMING)

Note: Purchase Locally.

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 850080001

IGNITION MODULE (W/ 3 SEC. KILL)

$18.99

$

Usually ships in 3-7 days

0

28

Homelite 00238A

PISTON PIN

$

$

Not available

29

Homelite 984812001

SCREW (10-24 X 3/4 in. PAN HD. TORX)

Note: Purchase Locally

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 00242

CLUTCH

$

$

Not available

31

Homelite PS05268

WASHER

$1.49

$

In Stock, only 1 left!

0

32

Homelite 98929A

WASHER
(Superseded to 638090001)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite PS05267

SPACER

$

$

Not available

34

Homelite PA01613

DRUM & CONNECTOR
(Superseded to 308177001)

$

$

Not available

35

Homelite 986153001

ROTOR AND PAWL ASSEMBLY
(Superseded to 300952002)

$13.99

$

In Stock, only 1 left!

0

36

Homelite 308374001

STARTER PULLEY
(Superseded to 308386001)

$

$

Not available

37

Homelite 985871001

PISTON ASSEMBLY
(Superseded to 985902001)

Note: (INC. KEY NO.14, 16, 22, 28 and 55)

$

$

Not available

38

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$3.49

$

In Stock, only 3 left!

0

39

Homelite 6969901

CLIP

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 9789902

STARTER ROPE
(Superseded to 900849002)

$1.49

$

In Stock, Qty 6

0

41

Homelite PS06114

STARTER GRIP

$

$

Not available

42

Homelite 984837001

BAFFLE

$

$

Not available

43

Homelite 82543

SCREW (8-16 X 1/2 in. THD. FORM. )

Note: Purchase Locally.

$

$

Not available

44

Homelite 82537

SCREW (10-14 X 7/8 in. THD. FORM. )

Note: Purchase Locally.

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 984829001

REAR HOUSING

$

$

Not available

46

Homelite 82538

SCREW (10-24 X 3/4 in. TRUSS HD.)

$1.49

$

Usually ships in 3-7 days

0

47

Homelite PA01641

STARTER HOUSING W/EYELET

$

$

Not available

48

Homelite 984759001

SCREW (6-20 X 1/4 in. TRI-LOBULAR)

Note: Purchase Locally.

$

$

Not available

49

Homelite 985596001

OUTLET TUBE

$

$

Not available

50

Homelite 984753001

SCREEN

$1.99

$

In Stock, only 1 left!

0

51

Homelite 985544001

COMPLETE STARTER ASSEMBLY

Note: (INC. KEY NOS. 36, 38, 40-43 AND 47 )

$

$

Not available

52

Homelite 984747001

GASKET

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 3078001

PRIMER ASSEMBLY
(Superseded to 01183)

$

$

Not available

54

Homelite 900999002

TANK INSULATION GASKET

$1.49

$

In Stock, only 2 left!

0

55

Homelite PA00190

CONNECTING ROD ASSEMBLY

$

$

Not available

56

Homelite 985767001

RUBBER BUMPER
(Superseded to 570549001)

$1.49

$

In Stock, only 1 left!

0

57

Homelite 985524002

CYLINDER
(Superseded to 640841008)

$

$

Not available

58

Homelite 985259001

CYLINDER GASKET
(Superseded to 900953001)

$

$

Not available

59

Homelite PS02807

SCREW (12-24 X 5/8 in.)

Note: Purchase Locally.

$1.49

$

Usually ships in 3-7 days

0
