RY 52002 (PC 30) - Ryobi Pole Saw Trimmer Head Assembly Parts Diagram

Pole Saw

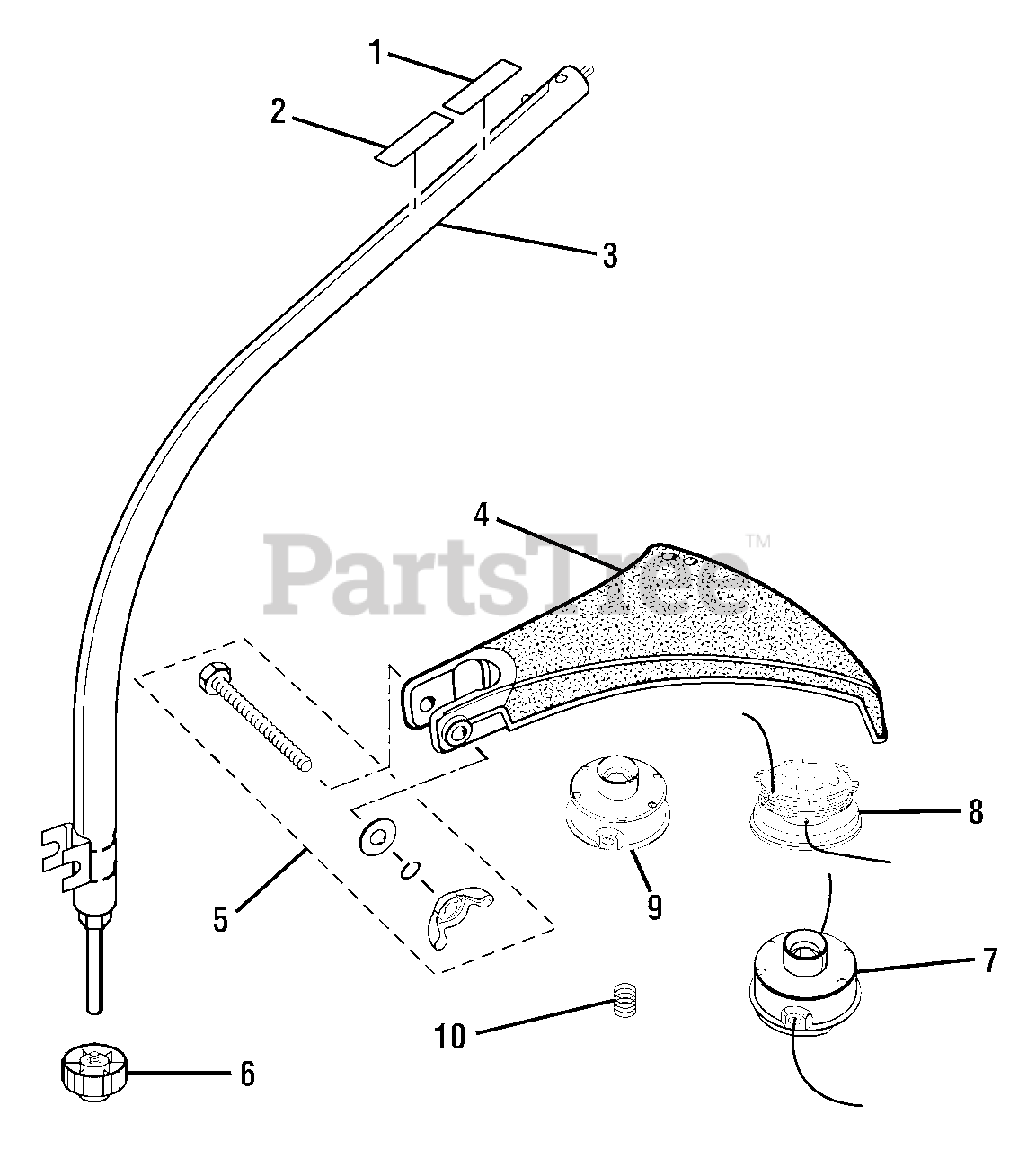

Trimmer Head Assembly Parts Diagram

  • Title

1

Homelite 985165001

EXPAND-IT LABEL

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 984032002

WARNING LABEL

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 985569003

CURVED SHAFT ASSEMBLY
(Superseded to 000998239)

$

$

Not available

4

Homelite 985623002

GRASS DEFLECTOR
(Superseded to T308744001)

$

$

Not available

5

Homelite PA00249

FASTENER PARTS KIT

$

$

Not available

6

Homelite A98866A

SPOOL RETAINER (RHT) (ITEM NO. AP04106)
(Superseded to 308042002)

$

$

Not available

7

Homelite AH04102

COMPLETE STRING HEAD (.080 in.) (ITEM NO. AP04114)
(Superseded to UP04408A)

$

$

Not available

8

Homelite PA0387A

SPOOL AND STRING (.080 in.) (ITEM NO. AH04112)
(Superseded to 308044002)

$

$

Not available

9

Homelite A98231A

HOUSING AND EYELET
(Superseded to 099068001005)

$

$

Not available

10

Homelite 06713

SPRING

$1.49

$

In Stock, only 4 left!

0
