RY 52014 (TP 30) - Ryobi Pole Saw Figure A Parts Diagram

Pole Saw

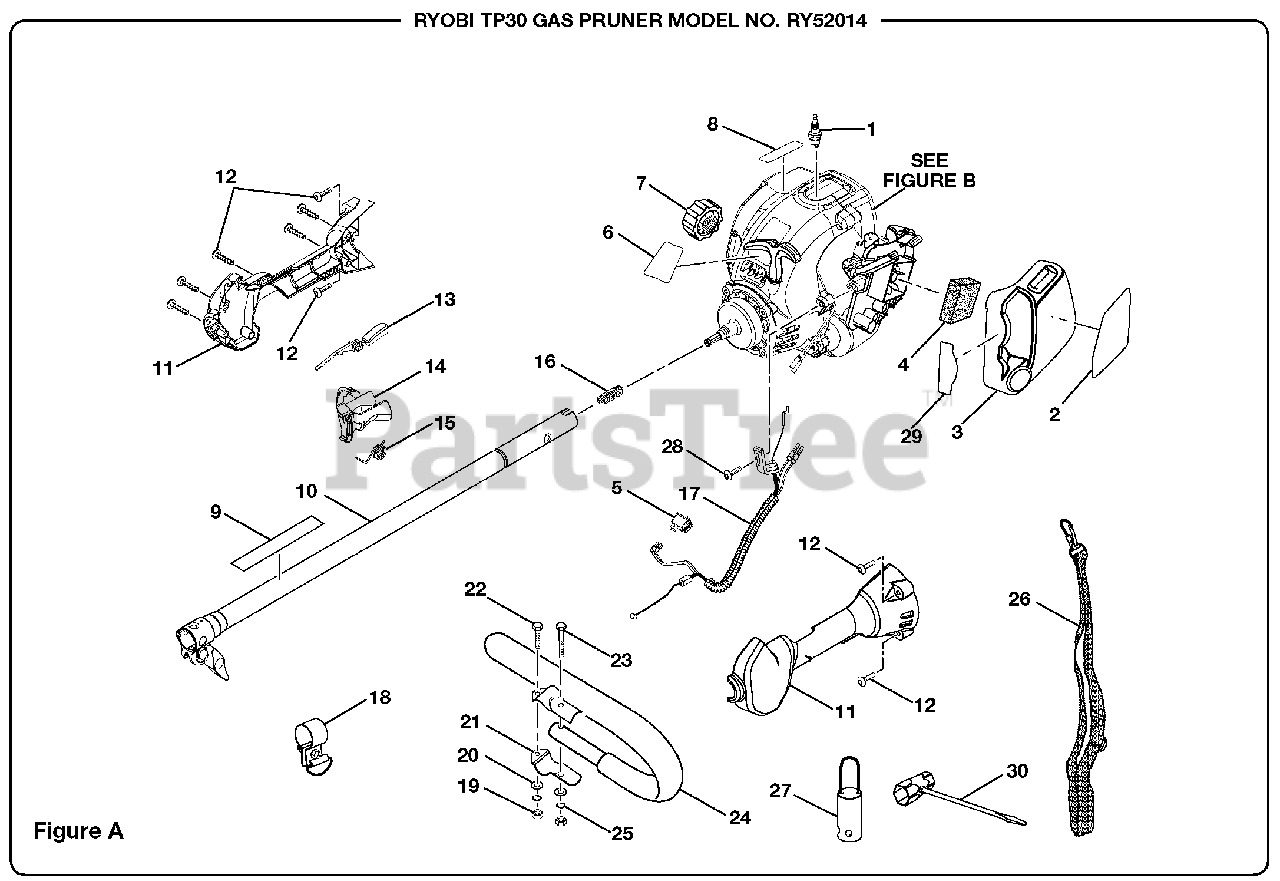

Figure A Parts Diagram

  • Title

1

Homelite 870170001

Spark Plug (Champion RCJ4)

Note: Purchase locally

$10.99

$

Usually ships in 3-7 days

0

2

Homelite 940967004

Starting Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 518096001

Air Box Cover

$

$

Not available

4

Homelite 900952001

Air Filter Element
(Superseded to 98760)

$1.49

$

In Stock, Qty 8

0

5

Homelite 760363002

Switch (Momentary Contact)
(Superseded to PS02764)

$

$

Not available

6

Homelite 940643011

Model Label (TP30)
(Superseded to 986176001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

8

Homelite 940299600

Logo Plate
(Superseded to 985157001)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 940654012

Warning Decal (TP30)
(Superseded to 986174001)

$

$

Not available

10

Homelite 000998248

Upper Boom Assembly (TP30)
(Superseded to 000998353)

$

$

Not available

11

Homelite 000998236

Control Handle Assembly

$

$

Not available

12

Homelite 660618002

Screw (10-14 X 1 In.)
(Superseded to 82589)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 518011002

Trigger Lock
(Superseded to PS06258)

$

$

Not available

14

Homelite 518012002

Trigger
(Superseded to PS06259)

$1.49

$

In Stock, only 1 left!

0

15

Homelite 678021001

Torsion Spring
(Superseded to PS01718)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 678252001

Compression Spring

$

$

Not available

17

Homelite 308439001

Throttle And Lead Assembly

$8.99

$

In Stock, only 1 left!

0

18

Homelite 308224001

Strap Hanger (TP30)
(Superseded to 07255)

$

$

Not available

19

Homelite 678016001

Hex Nut (1/4-20)
(Superseded to 81242)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 678013001

Washer

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 638014001

Handle Bar Clamp
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 660643002

Bolt (1/4-20 X 1 In. Hex Hd.)
(Superseded to 82496)

$

$

Not available

23

Homelite 660643001

Bolt (1/4-20 X 1-1/2 In. Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308046001

"J" Handle And Grip
(Superseded to A08130)

$15.99

$

Usually ships in 3-7 days

0

25

Homelite 678012001

Lock Washer
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

26

Homelite 308487001

Shoulder Strap

$6.99

$

Usually ships in 3-7 days

0

27

Homelite 518019001

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

28

Homelite 660616001

Screw (10-24 X 7/8 In.)

$

$

Not available

29

Homelite 940330006

Choke Label

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 631055006

Combination Wrench

$

$

Not available

Homelite 983000882

Operator's Manual (961031001)

Note: Not Shown

$

$

Not available
