RY 52014 (TP 30) - Ryobi Pole Saw Figure B Parts Diagram

Pole Saw

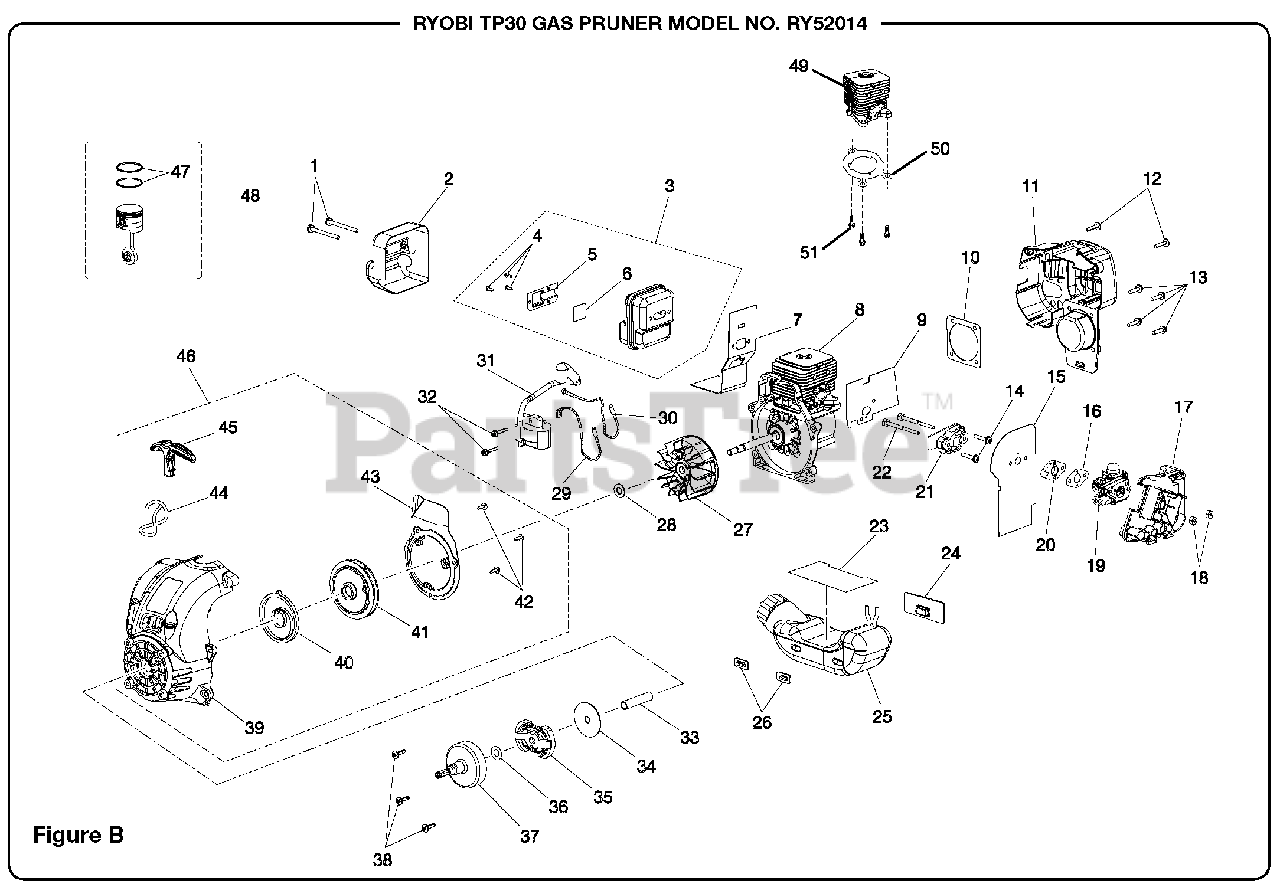

Figure B Parts Diagram

  • Title

1

Homelite 660638003

Screw (10-24 X 2-1/8 In. Torx Tr. Hd. )
(Superseded to PS03999)

$

$

Not available

2

Homelite 638094001

Heat Shield
(Superseded to 984743001)

$

$

Not available

3

Homelite 308092008

Muffler Assembly
(Superseded to 985869001)

$

$

Not available

4

Homelite 660870001

Screw (Recessed Pan Hd.)
(Superseded to 984759001)

$

$

Not available

5

Homelite 638044001

Outlet Tube
(Superseded to 985596001)

$

$

Not available

6

Homelite 638268001

Screen
(Superseded to 984753001)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 900994006

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308192004

Short Block Assembly (30 Cc) (External Gaskets Not Included)

$69.99

$

Usually ships in 3-7 days

0

9

Homelite 900994010

Intake Gasket
(Superseded to 985248001)

$

$

Not available

10

Homelite 900954001

Cover Gasket

$

$

Not available

11

Homelite 518107003

Rear Housing
(Superseded to 984829001)

$

$

Not available

12

Homelite 660674001

Screw (10-14 X 7/8 In. Truss Hd. T.F.)
(Superseded to 82537)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660638004

Screw w/Lock Washer(10-24 X 3/4 In. Pan Hd. Torx)
(Superseded to 984812001)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660662001

Screw (10-24 Pan Hd.)
(Superseded to 093221)

$

$

Not available

15

Homelite 900740002

Carburetor Gasket
(Superseded to 9074002)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 900994004

Carburetor Gasket (Non-Strato)

$

$

Not available

17

Homelite 518094001

Air Filter Base

$

$

Not available

18

Homelite 678027001

Lock Nut (10-24)
(Superseded to 81208)

$

$

Not available

19

Homelite 308054004

Carburetor Assembly
(Superseded to 308054013)

$36.99

$

In Stock, only 2 left!

0

20

Homelite 590456003

Spacer
(Superseded to 5945603)

$

$

Not available

21

Homelite 518070001

Heat Dam

$

$

Not available

22

Homelite 660346002

Carburetor Mounting Bolt (10 X 2-1/2 In.)

$

$

Not available

23

Homelite 900999002

Tank Insulation Gasket

$1.49

$

In Stock, only 2 left!

0

24

Homelite 570549001

Rubber Bumper

$1.49

$

In Stock, only 1 left!

0

25

Homelite 308181005

Fuel Tank Assembly w/Cap

$

$

Not available

26

Homelite 570256001

Bumper
(Superseded to 98792)

$1.49

$

In Stock, only 3 left!

0

27

Homelite 308433001

Rotor w/Pawls Assembly

$14.99

$

Usually ships in 3-7 days

0

28

Homelite 650017001

Washer
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

29

Homelite 290222001

Lead w/Terminals
(Superseded to A06963)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 290223001

Lead w/Terminals
(Superseded to A06964)

$

$

Not available

31

Homelite 308389002

Ignition Module w/3 Sec. Kill Switch

$17.99

$

In Stock, only 1 left!

0

32

Homelite 660660001

Screw (8-32 Thd Forming)
(Superseded to 82540)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 638091002

Spacer Tube
(Superseded to PS05267)

$

$

Not available

34

Homelite 638090001

Washer (Pkg)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 300960002

Clutch Assembly

$6.49

$

Usually ships in 3-7 days

0

36

Homelite 678257001

Clutch Washer

$

$

Not available

37

Homelite 308177001

Drum And Connector

$

$

Not available

38

Homelite 660630002

Screw (10-24 X 3/4 In.)
(Superseded to 82538)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 308436001

Starter Housing And Eyelet Assembly

$

$

Not available

40

Homelite 638033001

Spring And Container

$3.49

$

In Stock, only 3 left!

0

41

Homelite 308374001

Starter Pulley Assembly
(Superseded to 308386001)

$

$

Not available

42

Homelite 660694001

Screw (Thread Forming)
(Superseded to 82543)

$

$

Not available

43

Homelite 638229001

Baffle/Isolator

$2.99

$

Usually ships in 3-7 days

0

44

Homelite 900849002

Starter Rope 42 (Pkg)

$1.49

$

In Stock, Qty 6

0

45

Homelite 511731001

Starter Grip
(Superseded to PS06114)

$

$

Not available

46

Homelite 308194004

Starter Housing Assembly

$

$

Not available

47

Homelite 690161005

Piston Ring

$

$

Not available

48

Homelite 308023003

Piston w/Rod Assembly
(Superseded to 985872001)

$

$

Not available

49

Homelite 640069002

Cylinder, 30Cc
(Superseded to 640069003)

$27.99

$

Usually ships in 3-7 days

0

50

Homelite 900953001

Cylinder Gasket

$

$

Not available

51

Homelite 660342002

Screw (M5 X 20 Mm)

$1.49

$

Usually ships in 3-7 days

0
