RY 52014 (TP 30) - Ryobi Pole Saw Figure C Parts Diagram

Pole Saw

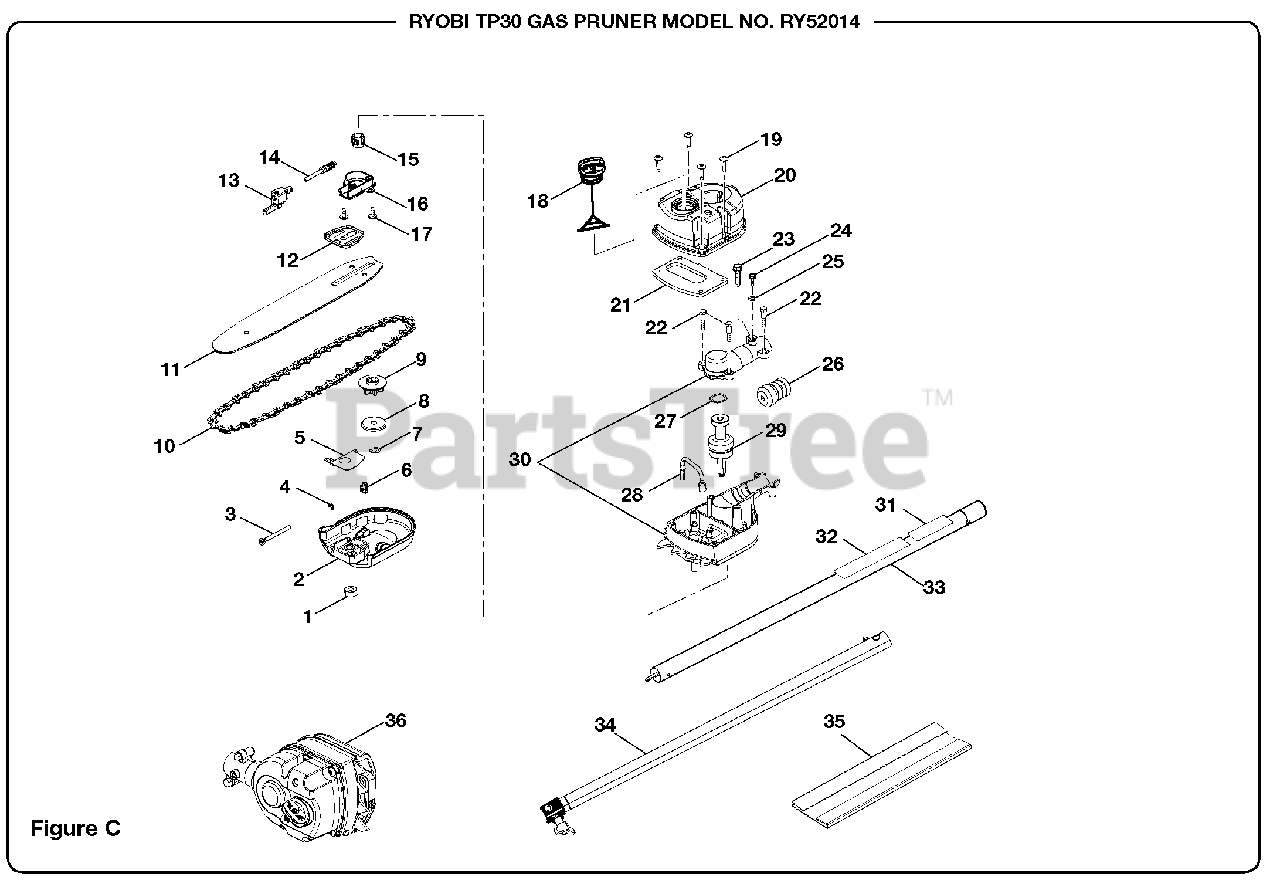

Figure C Parts Diagram

  • Title

1

Homelite 090038001023

Hex Nut (M8)

$

$

Not available

2

Homelite 090038001022

Bar Clamp Assembly
(Superseded to 308521001)

$

$

Not available

3

Homelite 090038001024

Guide Bar Adjustment Screw (M5 X 50 Mm)
(Superseded to 986164001)

$

$

Not available

4

Homelite 090038001025

Retaining Ring (4 Mm)
(Superseded to 986165001)

$1.49

$

In Stock, only 3 left!

0

5

Homelite 090038001026

Guide Bar Plate
(Superseded to 638281001)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 090038001021

Guide Bar Adjusting Pin (M5)
(Superseded to 986185001)

$1.99

$

In Stock, Qty 7

0

7

Homelite 090038001020

E-Ring (6 Mm)
(Superseded to 986162001)

$1.99

$

In Stock, only 2 left!

0

8

Homelite 090038001019

Cupped Washer
(Superseded to 631060001)

$

$

Not available

9

Homelite 090038001018

Sprocket
(Superseded to 985224001)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 690583002

Chain (3/8, .043, 10)

$

$

Not available

11

Homelite 671834006

Guide Bar
(Superseded to 671834023)

$27.99

$

In Stock, only 1 left!

0

12

Homelite 090038001028

Bar Pad Plate

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 090038001029

Oil Pump Seal Assembly
(Superseded to 986166001)

$11.99

$

In Stock, only 1 left!

0

14

Homelite 090038001030

Oil Pinion Gear & Plunger
(Superseded to 308524001)

$1.99

$

In Stock, only 1 left!

0

15

Homelite 090038001015

Worm Gear
(Superseded to 985223001)

$15.99

$

Usually ships in 3-7 days

0

16

Homelite 090038001016

Oil Pump Housing W/Cam Pin Assembly
(Superseded to 308520001)

$2.99

$

In Stock, only 1 left!

0

17

Homelite 090038001017

Screw (M5 X 13 Mm)

$

$

Not available

18

Homelite 090038001001

Oil Cap With Retainer (Pkg.)

$1.49

$

In Stock, only 4 left!

0

19

Homelite 090038001002

Screw (M5 X 18 Mm)
(Superseded to 985895001)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 090038001003

Oil Tank Cover Assembly

$

$

Not available

21

Homelite 090038001004

Oil Cover Gasket
(Superseded to 985265001)

$1.49

$

In Stock, Qty 18

0

22

Homelite 090038001005

Screw (M5 X 25 Mm, Shoulder Screw)
(Superseded to 986155001)

$

$

Not available

23

Homelite 090038001006

Screw (M5 X 25 Mm)
(Superseded to 986158001)

$

$

Not available

24

Homelite 099078001030

Screw (M5 X 15 Mm)

$

$

Not available

25

Homelite 099078001031

Spring Washer (M5)

$

$

Not available

26

Homelite 090038001011

Pinion Gear Assembly
(Superseded to 985252001)

$28.99

$

In Stock, only 1 left!

0

27

Homelite 090038001008

Wavy Washer
(Superseded to 985262001)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 090038001009

Pick-Up Tube Assembly
(Superseded to PA01487)

$

$

Not available

29

Homelite 090038001014

Output Shaft Assembly
(Superseded to 985253001)

$48.99

$

In Stock, only 1 left!

0

30

Homelite 090038001042

Gear Case And Cover Assembly
(Superseded to 308627001)

$

$

Not available

31

Homelite 940627024

Expand-It Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 940654011

Warning Label
(Superseded to 986173001)

$

$

Not available

33

Homelite 308425001

Pruner Boom Assembly (Includes Key. Nos. 31 And 32)

$

$

Not available

34

Homelite 308010006

Intermediate Boom Assembly
(Superseded to 308010016)

$

$

Not available

35

Homelite 090038001032

Blade Cover
(Superseded to 983606001)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 308400002

Pruner Gear Head (Includes Key. Nos. 1-9 And 12-30)
(Superseded to 986172001)

$

$

Not available
