RY 52903 (TP 30) - Ryobi Pole Saw Figure A Parts Diagram

Pole Saw

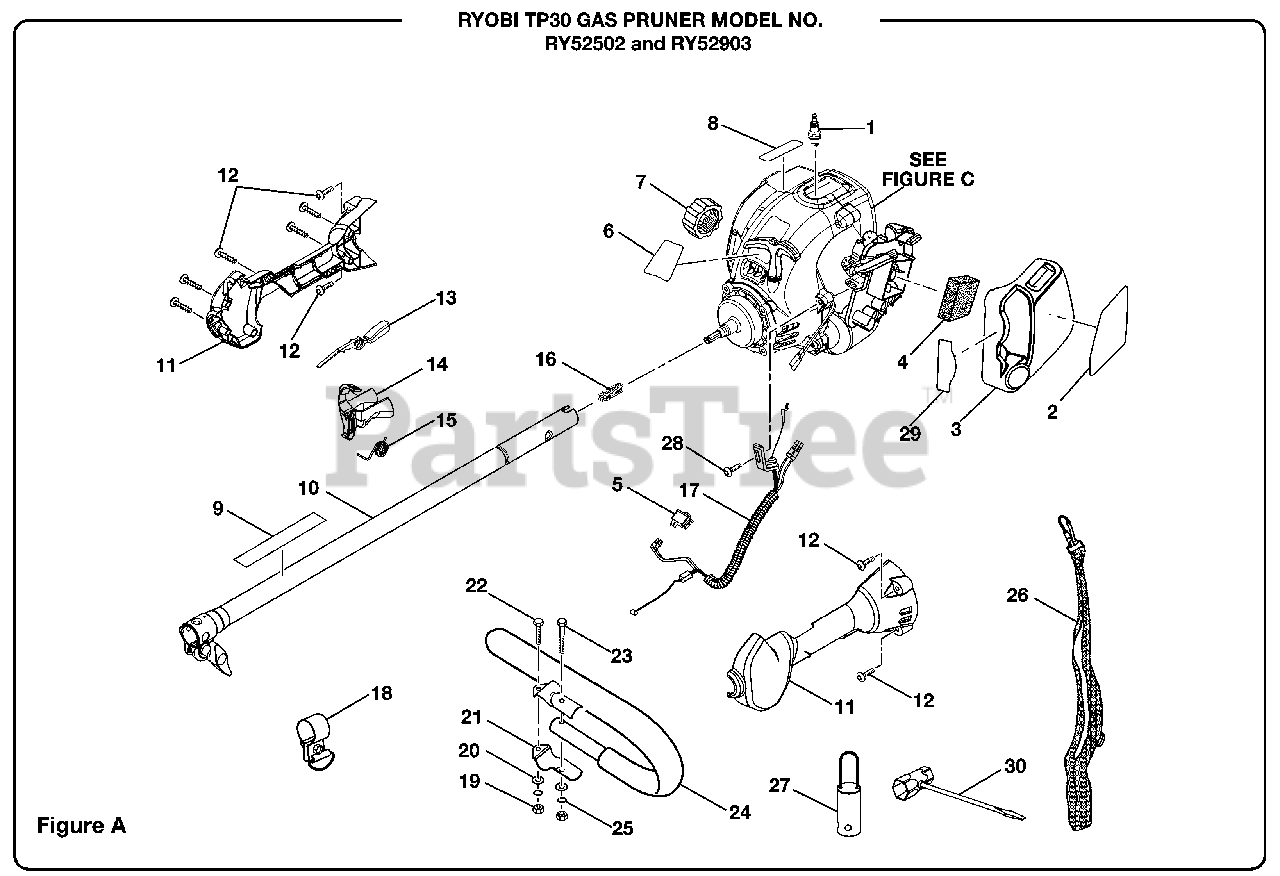

Figure A Parts Diagram

  • Title

1

Homelite 870174001

SPARK PLUG

Note: (CHAMPION RCJ6Y); Purchase locally

$4.99

$

In Stock, Qty 20+

0

2

Homelite 940967004

STARTING LABEL

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 518096001

AIR BOX COVER

$

$

Not available

4

Homelite 900952001

AIR FILTER ELEMENT
(Superseded to 98760)

$1.49

$

In Stock, Qty 8

0

5

Homelite 760363002

SWITCH (MOMENTARY CONTACT)
(Superseded to PS02764)

$

$

Not available

6

Homelite 940643011

MODEL LABEL (TP30)
(Superseded to 986176001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

8

Homelite 940299600

LOGO LABEL
(Superseded to 985157001)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 940654012

WARNING DECAL (TP30)
(Superseded to 986174001)

$

$

Not available

10

Homelite 000998355

UPPER BOOM ASSEMBLY (TP30)

$

$

Not available

11

Homelite 000998236

CONTROL HANDLE ASSEMBLY

$

$

Not available

12

Homelite 660618002

SCREW (10-14 X 1 in.)
(Superseded to 82589)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 518011002

TRIGGER LOCK
(Superseded to PS06258)

$

$

Not available

14

Homelite 518012002

TRIGGER
(Superseded to PS06259)

$1.49

$

In Stock, only 1 left!

0

15

Homelite 678021001

TORSION SPRING
(Superseded to PS01718)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 678252001

COMPRESSION SPRING

$

$

Not available

17

Homelite 308439001

THROTTLE AND LEAD ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

18

Homelite 308224001

STRAP HANGER (TP30)
(Superseded to 07255)

$

$

Not available

19

Homelite 678016001

HEX NUT (1/4-20)
(Superseded to 81242)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 678013001

WASHER

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 638014001

HANDLE BAR CLAMP
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 660643002

BOLT (1/4-20 X 1 in HEX HD.)
(Superseded to 82496)

Note: Purchase locally

$

$

Not available

23

Homelite 660643001

BOLT (1/4-20 X 1-1/2 in HEX HD.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308046001

"J" HANDLE AND GRIP
(Superseded to A08130)

$15.99

$

Usually ships in 3-7 days

0

25

Homelite 678012001

LOCK WASHER
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

26

Homelite 308487001

SHOULDER STRAP

$6.99

$

Usually ships in 3-7 days

0

27

Homelite 518019001

HANGER CAP
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

28

Homelite 660616001

SCREW (10-24 X 7/8 in.)

Note: Purchase locally

$

$

Not available

29

Homelite 940330006

CHOKE LABEL

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 660881001

COMBINATION WRENCH

$

$

Not available

Homelite 987000061

OPERATOR'S MANUAL

$

$

Not available
