RY 60511 A - Ryobi Cultivator General Assembly (Part 1) Parts Diagram

Cultivator

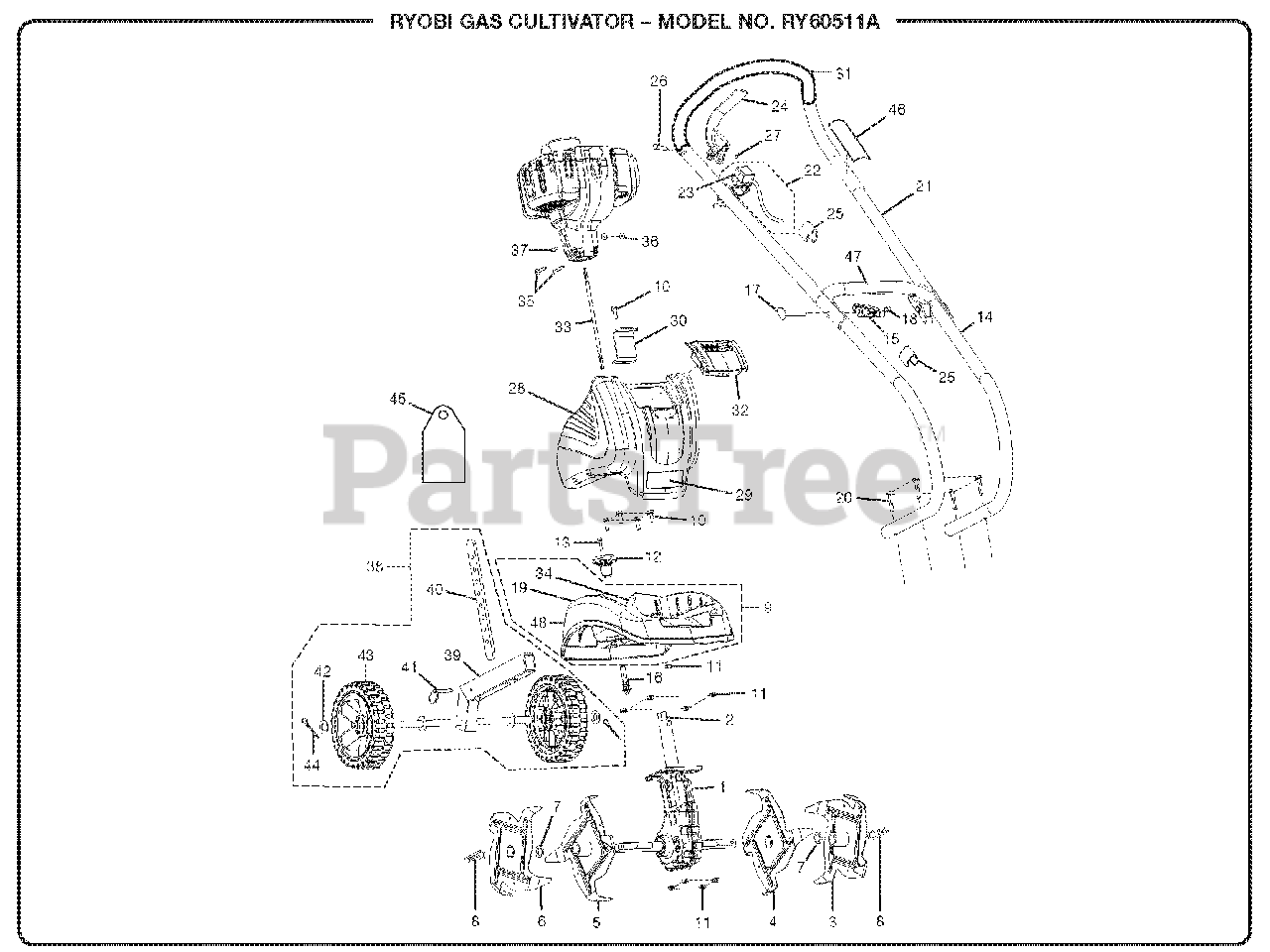

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 220029001

GEAR BOX ASSEMBLY WITH TUBE
(Superseded to 220029004)

$

$

Not available

2

Homelite 518132001

LINER - DRIVE TUBE

$

$

Not available

3

Homelite 308216002

TINE A, OUTER RIGHT
(Superseded to UT15550A-25)

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 308216003

TINE B, INNER RIGHT
(Superseded to UT15550A-26)

$

$

Not available

5

Homelite 308216004

TINE C, INNER LEFT
(Superseded to UT15550A-27)

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 308216005

TINE D, OUTER LEFT
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

7

Homelite 900755001

FELT WASHER
(Superseded to UT15550A-36)

$1.49

$

In Stock, Qty 14

0

8

Homelite 638001004

CLEVIS CLIP
(Superseded to UT15550A-35)

$1.49

$

In Stock, Qty 5

0

9

Homelite 308216001

TINE SHIELD ASSEMBLY ( INC. KEY NOS. 19, 34 AND 48)

$

$

Not available

10

Homelite 660643002

BOLT (1/4-20 x 3/4 in.)
(Superseded to 82496)

$

$

Not available

11

Homelite 678132001

LOCK NUT (1/4-20)

$

$

Not available

12

Homelite 518206001

RECEIVER RETAINER KNOB

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660713001

SCREW (M5 x 15 mm PAN HD.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 308338001

LOWER HANDLE ASSEMBLY (INC. KEY NO. 47)

$

$

Not available

15

Homelite 518190001

KNOB (1/4-20)

$

$

Not available

16

Homelite 308228001

RECEIVER RETAINER ASSEMBLY

$

$

Not available

17

Homelite 660711002

CARRIAGE BOLT (1/4-20 x 2-1/4 in.)

$

$

Not available

18

Homelite 678142001

ACORN NUT

$

$

Not available

19

Homelite 950119010

WARNING LABEL, FOOT

$

$

Not available

20

Homelite 660643001

HANDLE BOLT (1/4-20 x 1.53 in.)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 308047003

UPPER HANDLE ASSEMBLY (INC. KEY NO. 31 AND 46)

$55.99

$

Usually ships in 3-7 days

0

22

Homelite 308026002

THROTTLE CABLE ASSEMBLY (INC. KEY NO. 23)
(Superseded to 308641001)

$

$

Not available

23

Homelite 07385

SWITCH
(Superseded to 760661001)

$

$

Not available

24

Homelite 518256001

TRIGGER

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 518205001

CLIP

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 638132001

CLEVIS PIN

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 678135001

RETAINING RING

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 308217001

TANK - BALLAST ASSEMBLY (INCLUDES KEY NO. 29)

$

$

Not available

29

Homelite 950119004

LOGO LABEL

$

$

Not available

30

Homelite 638099001

MOUNTING BRACKET

$

$

Not available

31

Homelite 518053002

GRIP

$10.99

$

Usually ships in 3-7 days

0

32

Homelite 360991001

BALLAST TANK LID

$

$

Not available

33

Homelite 620368001

FLEXIBLE DRIVE SHAFT

$2.49

$

In Stock, only 1 left!

0

34

Homelite 950119001

WHEEL ACCESSORY LABEL

$

$

Not available

35

Homelite 82556

BOLT (10-24 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 07589

LOCK NUT (10-24)

$1.49

$

In Stock, only 1 left!

0

37

Homelite 660371002

SCREW (8-16 x 1/2 in.)

$

$

Currently unavailable

38

Homelite 308213001

WHEEL/DRAG STAKE ASSEMBLY (INCLUDES KEY NO. 39-44)

$

$

Not available

39

Homelite 308222001

FRAME ASSEMBLY

$

$

Not available

40

Homelite 638017004

DRAG STAKE

$11.99

$

Usually ships in 3-7 days

0

41

Homelite 638017003

QUICK RELEASE PIN

$8.99

$

Usually ships in 3-7 days

0

42

Homelite 638017002

FLAT WASHER

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 308236001

WHEEL ASSEMBLY (7 in. DIA.)

$

$

Not available

44

Homelite 638635001

COTTER PIN

$

$

Not available

45

Homelite 950119014

WARNING HANG TAG

$

$

Not available

46

Homelite 950119006

BOOM WARNING LABEL

$

$

Not available

47

Homelite 950119003

STARTING LABEL

$

$

Not available

48

Homelite 950119002

WARNING LABEL

$

$

Not available

49

Homelite 3075801

FUEL CAP

Note: (NOT SHOWN)

$6.49

$

In Stock, only 1 left!

0

50

Homelite 950119005

HANG TAG, STARTING

Note: (NOT SHOWN)

$1.99

$

Usually ships in 3-7 days

0

Homelite 983000689

REPLACEMENT PARTS LIST

$

$

Currently unavailable

Homelite 983000580

OPERATOR'S MANUAL (960976001)

$

$

Not available
