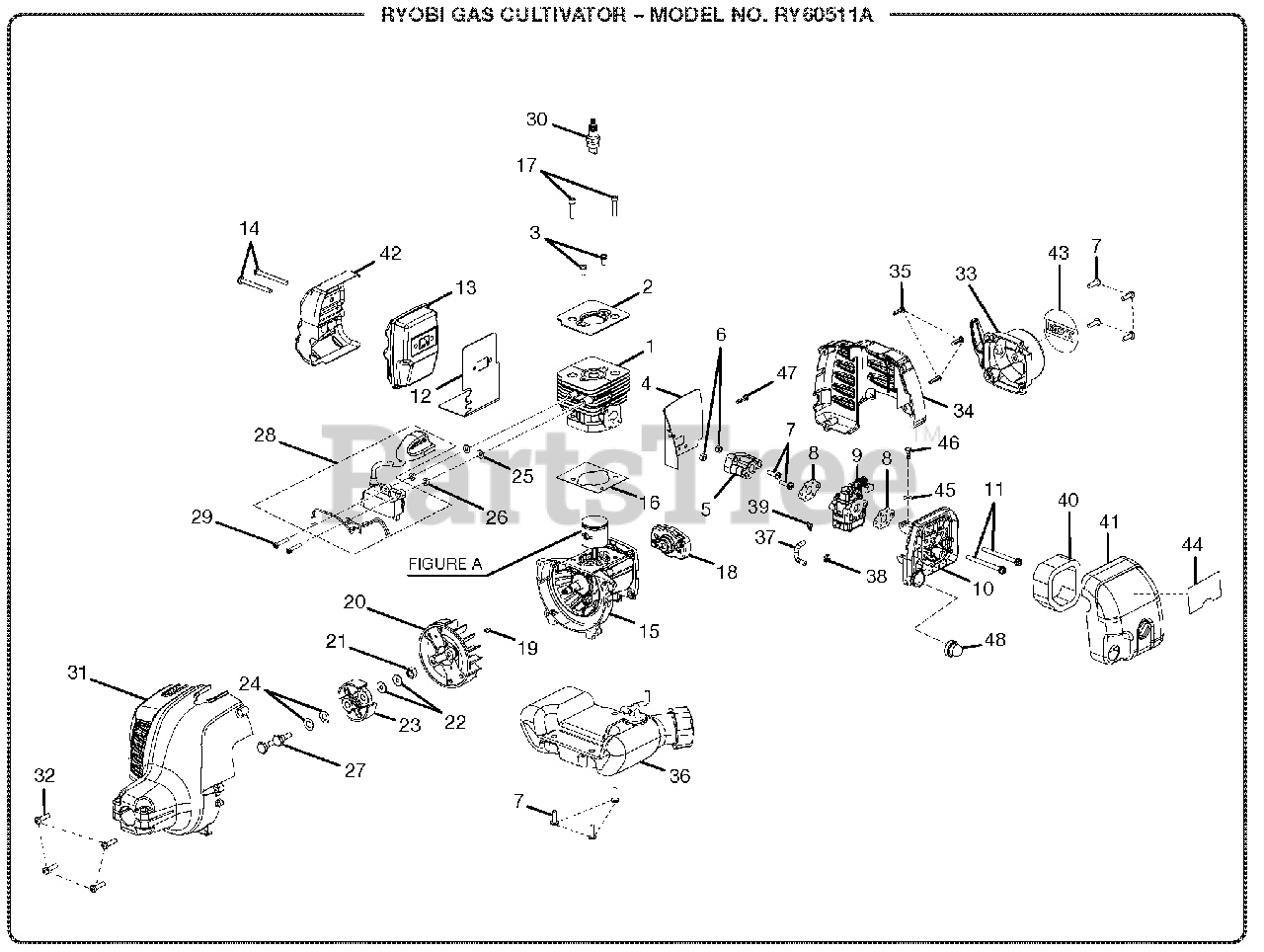

RY 60511 A - Ryobi Cultivator General Assembly (Part 2) Parts Diagram

Cultivator

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 640570016

25.4 CYLINDER
(Superseded to 640570026)

$70.99

$

In Stock, only 2 left!

0

2

Homelite 6300221

PLATE
(Superseded to 630002021)

$1.49

$

In Stock, only 3 left!

0

3

Homelite 983660005

SCREW (M5 x .8 mm PAN HD.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 9071102

GASKET

$

$

Not available

5

Homelite 5994701

INSULATOR

$

$

Not available

6

Homelite 983619014

NUT (M5 x .8 mm)

$

$

Not available

7

Homelite 6635101

SCREW (M.8 x 16 mm PAN HD.)

$2.49

$

In Stock, Qty 10

0

8

Homelite 9071103

GASKET

$

$

Not available

9

Homelite 985892001

CARBURETOR ASSEMBLY
(Superseded to 308028001)

$202.99

$

In Stock, only 1 left!

0

10

Homelite 985530002

FILTER HOUSING ASSEMBLY

$

$

Not available

11

Homelite 6634601

SCREW (M5 x .8 x 60 mm PAN HD.)
(Superseded to 660346001)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 6300206

GASKET

$9.49

$

Usually ships in 3-7 days

0

13

Homelite 308138003

MUFFLER ASSEMBLY

$

$

Not available

14

Homelite 983660057

SCREW (M5 x .8 x 50 mm PAN HD.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 300749003

CRANKCASE ASSEMBLY

$64.99

$

Usually ships in 3-7 days

0

16

Homelite 9070901

GASKET

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 6634201

SCREW (M5 x .8 x 22 mm)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 4300401

PULLEY ASSEMBLY
(Superseded to 308004001)

$20.99

$

Usually ships in 3-7 days

0

19

Homelite 983784006

WOODRUFF KEY

$

$

Not available

20

Homelite 6457401

ROTOR

$

$

Not available

21

Homelite 6968901

NUT

$

$

Not available

22

Homelite 983788071

WASHER

$

$

Not available

23

Homelite 3075601

CLUTCH ASSEMBLY
(Superseded to 300756007)

$

$

Not available

24

Homelite 6969601

WASHER, CURVED

$2.49

$

In Stock, only 3 left!

0

25

Homelite 982719005

WASHER

$1.49

$

In Stock, only 1 left!

0

26

Homelite 5946201

SPACER

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 6635301

SCREW (M6 x 1 x 14 mm PAN HD.)

$2.49

$

In Stock, only 3 left!

0

28

Homelite 2917802

COIL ASSEMBLY
(Superseded to 290178003)

$

$

Not available

29

Homelite 6634901

SCREW (M4 x .7 x 22 mm PAN HD.)

$

$

Not available

30

Homelite 8714402

SPARK PLUG
(Superseded to 870174002)

$21.99

$

Usually ships in 3-7 days

0

31

Homelite 985894001

FRONT HOUSING ASSEMBLY
(Superseded to 300754008)

$

$

Not available

32

Homelite 6634401

SCREW (M5 x .8 x 20 mm PAN HD.)

$

$

Not available

33

Homelite 308176003

STARTER HOUSING ASSEMBLY
(Superseded to 308430002)

$

$

Not available

34

Homelite 518201001

REAR ENGINE HOUSING

$17.99

$

Usually ships in 3-7 days

0

35

Homelite 6656301

SCREW (M4 x 1.75 x 16 mm PAN HD.)
(Superseded to 983638009)

$2.49

$

In Stock, only 3 left!

0

36

Homelite 985863001

FUEL TANK
(Superseded to 308644001)

$

$

Not available

37

Homelite 5688002

FUEL LINE

$

$

Not available

38

Homelite 6970001

CLIP

$2.49

$

In Stock, only 4 left!

0

39

Homelite 6969901

CLIP

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 5687301

AIR FILTER

$

$

Not available

41

Homelite 985417001

OUTER COVER ASSEMBLY
(Superseded to 308207002)

$

$

Not available

42

Homelite 638027001

HEAT SHIELD

$4.49

$

Usually ships in 3-7 days

0

43

Homelite 950119007

LOGO LABEL

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 950119008

PRIMER LABEL

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 638171001

WASHER

$

$

Not available

46

Homelite 983638009

SCREW (M4 x 16 mm TORX PAN HD.)
(Superseded to 660734001)

$2.49

$

In Stock, only 3 left!

0

47

Homelite 6634502

SCREW (M4 x 16 mm PAN HD.)

$

$

Not available

48

Homelite 3078001

PRIMER
(Superseded to 01183)

$

$

Not available

Homelite 986179001

SPARK ARRESTOR KIT

Note: (NOT SHOWN)

$

$

Not available
