RY 60511 B - Ryobi Cultivator Replacement Part Drawing Parts Diagram

Cultivator

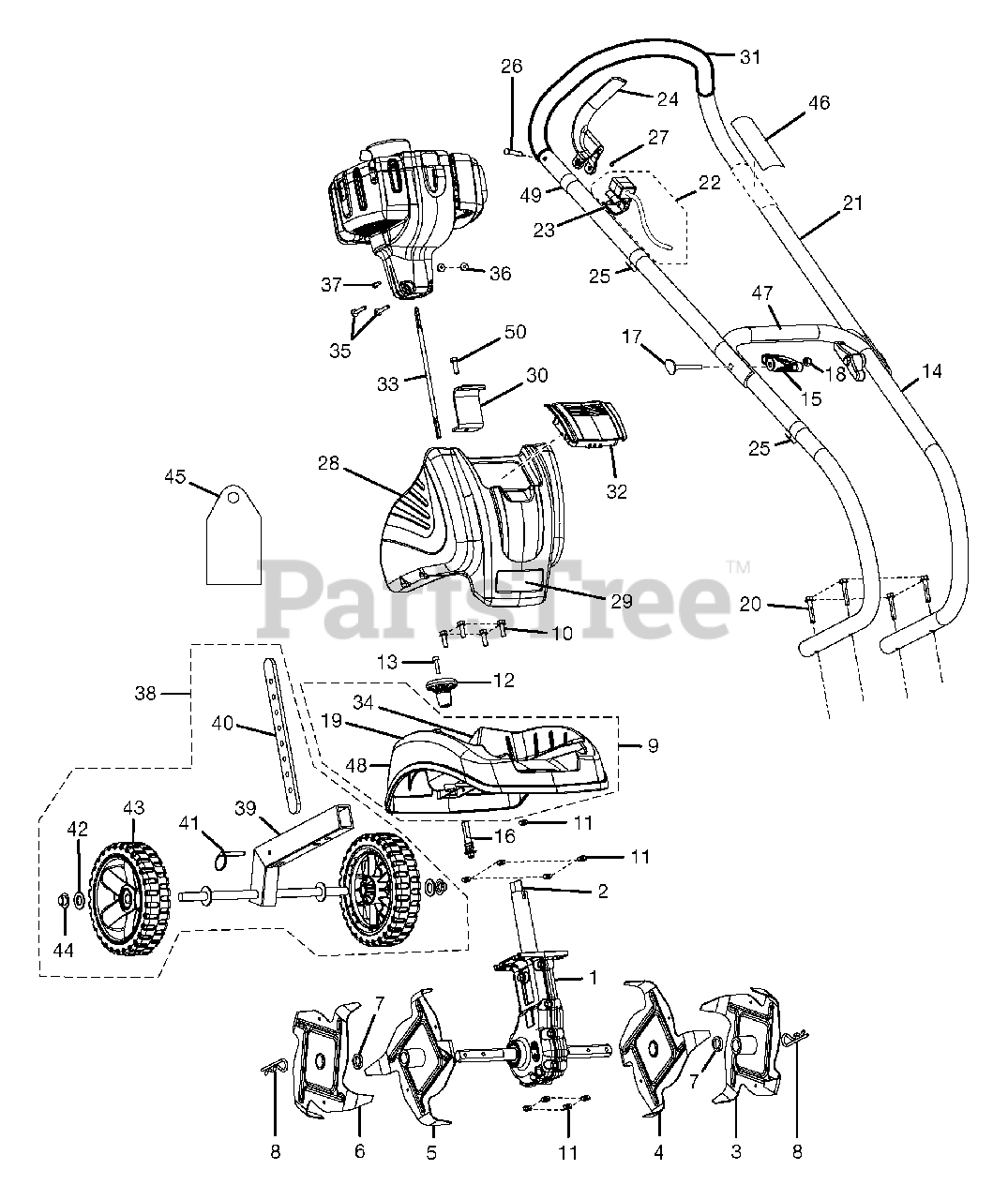

Replacement Part Drawing Parts Diagram

  • Title

1

Homelite 220029001

GEAR BOX ASSEMBLY WITH TUBE
(Superseded to 220029004)

$

$

Not available

2

Homelite 518132001

LINER - DRIVE TUBE

$

$

Not available

3

Homelite 308216002

TINE A, OUTER RIGHT
(Superseded to UT15550A-25)

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 308216003

TINE B, INNER RIGHT
(Superseded to UT15550A-26)

$

$

Not available

5

Homelite 308216004

TINE C, INNER LEFT
(Superseded to UT15550A-27)

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 308216005

TINE D, OUTER LEFT
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

7

Homelite 900755001

FELT WASHER
(Superseded to UT15550A-36)

$1.49

$

In Stock, Qty 14

0

8

Homelite 638001004

CLEVIS CLIP
(Superseded to UT15550A-35)

$1.49

$

In Stock, Qty 5

0

9

Homelite 308216001

TINE SHIELD ASSEMBLY

Note: ( INC. KEY NOS. 19, 34 AND 48)

$

$

Not available

10

Homelite 660643002

BOLT (1/4-20 X 1 in.)
(Superseded to 82496)

Note: PURCHASE LOCALLY

$

$

Not available

11

Homelite 678132001

LOCK NUT (1/4-20)

Note: PURCHASE LOCALLY

$

$

Not available

12

Homelite 518206001

RECEIVER RETAINER KNOB

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660713001

SCREW (M5 X 16 mm PAN HD.)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 000998258

LOWER HANDLE ASSEMBLY

Note: (INC. KEY NO. 25 AND 47)

$

$

Not available

15

Homelite 518190001

KNOB (1/4-20)

$

$

Not available

16

Homelite 308228001

RECEIVER RETAINER ASSEMBLY

$

$

Not available

17

Homelite 660711002

CARRIAGE BOLT (1/4-20 X 2-1/4 in.)

Note: PURCHASE LOCALLY

$

$

Not available

18

Homelite 678142001

ACORN NUT

$

$

Not available

19

Homelite 950119010

WARNING LABEL, FOOT

$

$

Not available

20

Homelite 660643001

HANDLE BOLT (1/4-20 X 1.53 in.)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 000998259

UPPER HANDLE ASSEMBLY

Note: (INC. KEY NOS. 25, 31, 46, AND 50)

$

$

Not available

22

Homelite 308641001

THROTTLE CABLE ASSEMBLY

Note: (INC. KEY NO. 23)

$

$

Not available

23

Homelite 760661001

SWITCH

$

$

Not available

24

Homelite 518256001

TRIGGER

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 518307001

PLASTIC CLIP

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 638132001

CLEVIS PIN

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 678135001

RETAINING RING

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 308217001

TANK - BALLAST ASSEMBLY

Note: (INCLUDES KEY NO. 29)

$

$

Not available

29

Homelite 950119004

LOGO LABEL

$

$

Not available

30

Homelite 638099001

MOUNTING BRACKET

$

$

Not available

31

Homelite 518053002

GRIP

$10.99

$

Usually ships in 3-7 days

0

32

Homelite 360991001

BALLAST TANK LID

$

$

Not available

33

Homelite 620368001

FLEXIBLE DRIVE SHAFT

$2.49

$

In Stock, only 1 left!

0

34

Homelite 950119001

WHEEL ACCESSORY LABEL

$

$

Not available

35

Homelite 660651001

BOLT (10-24 X 1-1/4 in.)

Note: PURCHASE LOCALLY

$

$

Not available

36

Homelite 678027001

NUT (10-24)
(Superseded to 81208)

$

$

Not available

37

Homelite 660669001

SCREW (8-16 X 1/2 in.)

Note: PURCHASE LOCALLY

$1.49

$

In Stock, Qty 5

0

38

Homelite 308213001

WHEEL/DRAG STAKE ASSEMBLY

Note: (INCLUDES KEY NO. 39-44)

$

$

Not available

39

Homelite 308222001

FRAME ASSEMBLY

$

$

Not available

40

Homelite 638017004

DRAG STAKE

$11.99

$

Usually ships in 3-7 days

0

41

Homelite 638017003

QUICK RELEASE PIN

$8.99

$

Usually ships in 3-7 days

0

42

Homelite 638017002

FLAT WASHER

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 308236001

WHEEL ASSEMBLY (7 in. DIA.)

$

$

Not available

44

Homelite 678136001

PUSH CAP NUT (FITS 1/2 in.)
(Superseded to 638635001)

$

$

Not available

45

Homelite 950119014

WARNING HANG TAG

$

$

Not available

46

Homelite 950119006

BOOM WARNING LABEL

$

$

Not available

47

Homelite 950119003

STARTING LABEL

$

$

Not available

48

Homelite 950119002

WARNING LABEL

$

$

Not available

49

Homelite 518489001

PLASTIC ROPE CLIP

$3.49

$

In Stock, only 1 left!

0

50

Homelite 660714002

BOLT (1/4-20 x 5/8 in.)

$

$

Not available

Homelite 983000886

Operator's MANUAL (960976001)

$

$

Not available

Homelite NLA

REPAIR SHEET

$

$

Currently unavailable

Homelite NLA

REPLACEMENT PARTS LIST (960976002)

$

$

Currently unavailable
