RY 60512 - Ryobi Cultivator General Assembly (Part 1) Parts Diagram

Cultivator

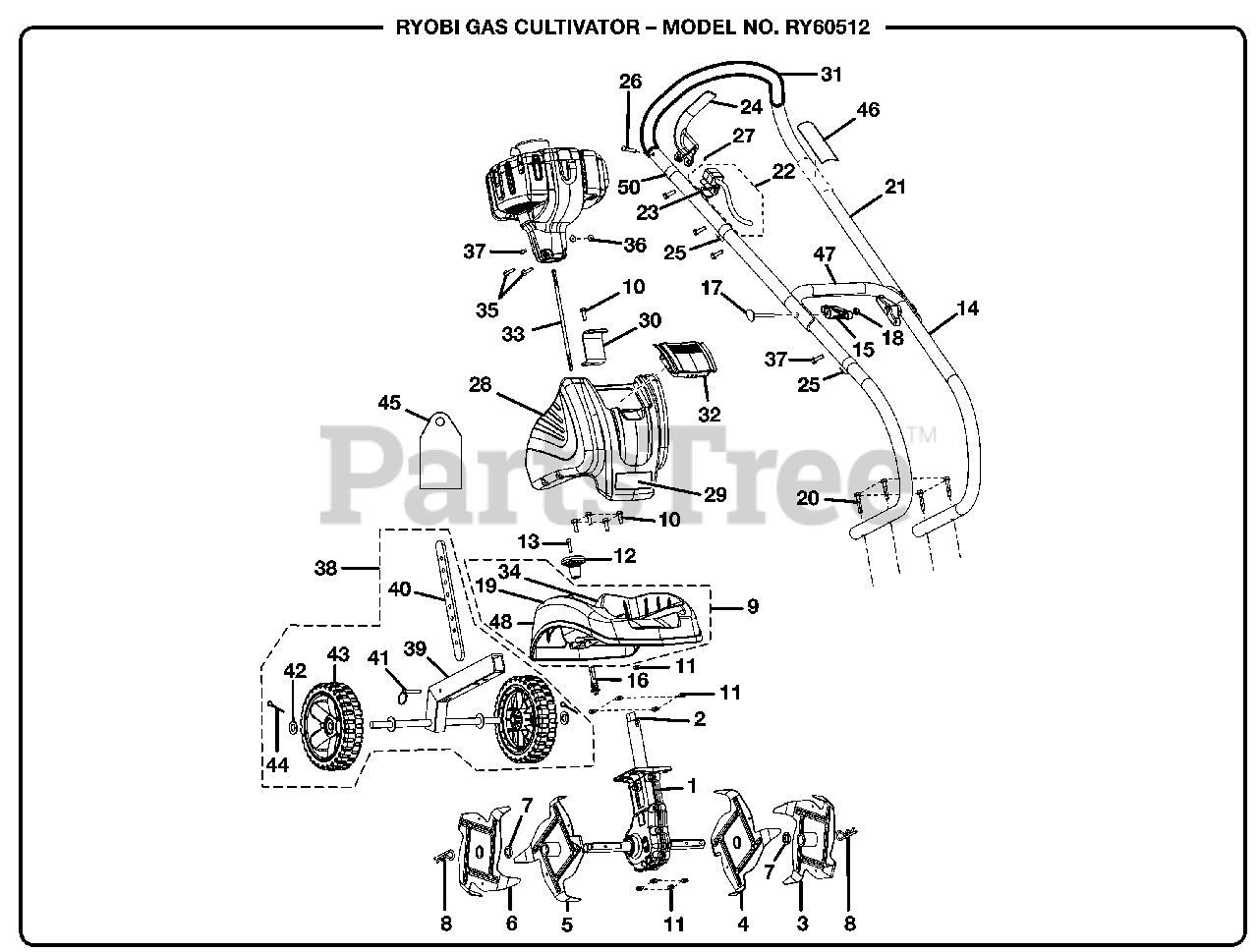

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 220029004

Gear Box Assembly with Tube

$

$

Not available

2

Homelite 518132001

Liner - Drive Tube

$

$

Not available

3

Homelite 308693001

Tine A, Outer Right

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 308693002

Tine B, Inner Right

$

$

Not available

5

Homelite 308693003

Tine C, Inner Left

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 308693004

Tine D, Outer Left
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

7

Homelite 900755001

Felt Washer
(Superseded to UT15550A-36)

$1.49

$

In Stock, Qty 14

0

8

Homelite 638001004

Hitch Pin
(Superseded to UT15550A-35)

$1.49

$

In Stock, Qty 5

0

9

Homelite 308216009

Tine Shield Assembly

Note: Inc Key Nos 19, 34 and 48

$

$

Currently unavailable

10

Homelite 660643002

Bolt (1/4-20 x 1 in.)
(Superseded to 82496)

Note: Purchase locally

$

$

Not available

11

Homelite 678132001

Lock Nut (1/4-20)

Note: Purchase locally

$

$

Not available

12

Homelite 518206001

Adjustment Knob

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660713001

Screw (M5 x 16 mm Pan Hd.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 000998258

Lower Handle Assembly

Note: Inc Key Nos 25 and 47

$

$

Not available

15

Homelite 518190001

Handle Bar Knob (1/4-20)

$

$

Not available

16

Homelite 308228001

Receiver Retainer Assembly

$

$

Not available

17

Homelite 660711002

Carriage Bolt (1/4-20 x 2-1/4 in.)

Note: Purchase locally

$

$

Not available

18

Homelite 678142001

Acorn Nut (1/4-20)

Note: Purchase locally

$

$

Not available

19

Homelite 950119010

Warning Label, Foot

$

$

Not available

20

Homelite 660643001

Handle Bolt (1/4-20 x 1.53 in.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 000998365

Upper Handle Assembly

Note: Inc Key No 25, 31, 46 and 50

$

$

Not available

22

Homelite 308641004

Throttle Cable Assembly

Note: Inc Key No 23

$13.99

$

Usually ships in 3-7 days

0

23

Homelite 760679001

Switch

$

$

Not available

24

Homelite 518256001

Throttle Lever

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 518307001

Clip

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 638132001

Throttle Lever Pin

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 678135001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 308217001

Just Add Sand™ Tank Assembly

Note: Inc Key No 29

$

$

Not available

29

Homelite 950119004

Logo Label

$

$

Not available

30

Homelite 678052001

Mounting Bracket

$

$

Not available

31

Homelite 518053002

Grip

$10.99

$

Usually ships in 3-7 days

0

32

Homelite 360991001

Just Add Sand™ Lid

$

$

Not available

33

Homelite 620368001

Flexible Drive Shaft

$2.49

$

In Stock, only 1 left!

0

34

Homelite 950119001

Wheel Accessory Label

$

$

Not available

35

Homelite 660651001

Bolt (10-24 x 1-1/4 in.)

Note: Purchase locally

$

$

Not available

36

Homelite 678027001

Lock Nut (10-24)
(Superseded to 81208)

Note: Purchase locally

$

$

Not available

37

Homelite 660669001

Screw (8-16 x 1/2 in.)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

38

Homelite 308213003

Wheel/Drag Bar Assembly

Note: Inc Key Nos 39-44

$

$

Not available

39

Homelite 308222002

Wheel Frame

$

$

Not available

40

Homelite 638017004

Drag Bar

$11.99

$

Usually ships in 3-7 days

0

41

Homelite 638017003

Quick Release Pin

$8.99

$

Usually ships in 3-7 days

0

42

Homelite 638017002

Flat Washer

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 308236002

Wheel Assembly (6 in Dia.)

$9.49

$

Usually ships in 3-7 days

0

44

Homelite 638635001

Cotter Pin (Split Pin)

$

$

Not available

45

Homelite 950119014

Warning Hang Tag

$

$

Not available

46

Homelite 950119006

Boom Warning Label

$

$

Not available

47

Homelite 950119003

Starting Label

$

$

Not available

48

Homelite 950119002

Warning Label

$

$

Not available

49

Homelite 308642001

Fuel Cap

Note: Not Shown

$

$

Not available

50

Homelite 518489001

Rope Clip

$3.49

$

In Stock, only 1 left!

0

Homelite 987000124

Operator's Manual

$

$

Not available
