RY 60514 - Ryobi Cultivator Figure B Parts Diagram

Cultivator

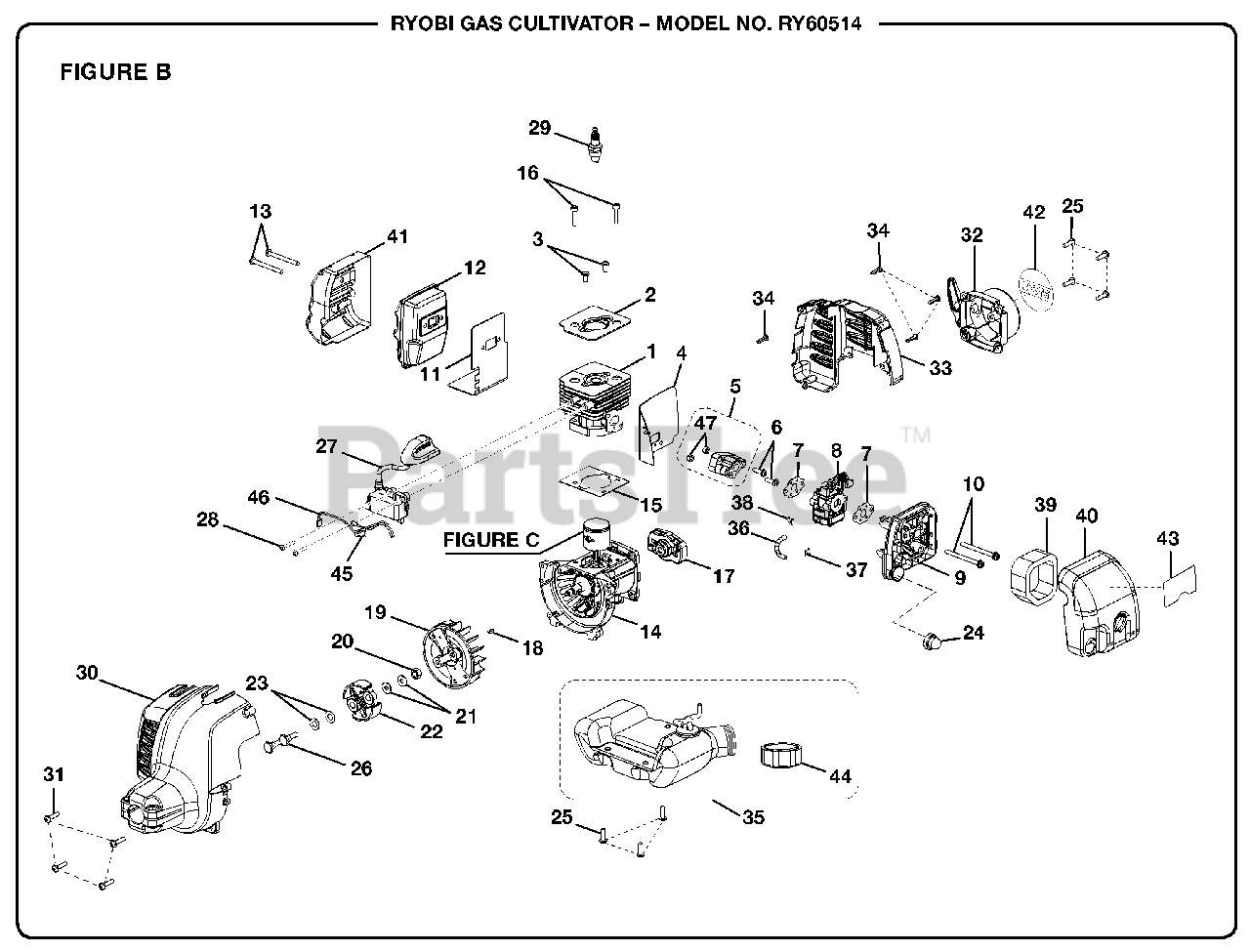

Figure B Parts Diagram

  • Title

1

Homelite 640570026

Cylinder
(Superseded to 640570023)

$70.99

$

In Stock, only 2 left!

0

2

Homelite 630002021

Cylinder Plate

$1.49

$

In Stock, only 3 left!

0

3

Homelite 660351002

Screw w/Washer (M5 x 10 mm Pan Hd.)
(Superseded to 983660005)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 900711006

Insulator Gasket

$

$

Not available

5

Homelite 518329001

Insulator

Note: (Inc. Key No. 47)

$9.49

$

Usually ships in 3-7 days

0

6

Homelite 660344003

Screw (M5 x 31 mm Torx Pan Hd.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

$

$

Not available

8

Homelite 308428002

Carburetor Assembly
(Superseded to 308028001)

$202.99

$

In Stock, only 1 left!

0

9

Homelite 518130002

Air Filter Base
(Superseded to 985530002)

$

$

Not available

10

Homelite 660346001

Screw (M5 x 60 mm Pan Hd.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 630002006

Muffler Gasket
(Superseded to 6300206)

$9.49

$

Usually ships in 3-7 days

0

12

Homelite 300748016

Muffler Assembly

$

$

Not available

13

Homelite 660347001

Screw (M5 x 50 mm Pan Hd.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 300749004

Crankcase Assembly

$132.99

$

Usually ships in 3-7 days

0

15

Homelite 900709001

Cylinder Gasket
(Superseded to 9070901)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 660342001

Screw (M5 x 22 mm Torx Pan Hd.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 308004001

Pulley Assembly

$20.99

$

Usually ships in 3-7 days

0

18

Homelite 690688001

Woodruff Key
(Superseded to 983784006)

$

$

Not available

19

Homelite 640574001

Flywheel
(Superseded to 6457401)

$

$

Not available

20

Homelite 690689001

Hex Nut
(Superseded to 6968901)

Note: Purchase locally

$

$

Not available

21

Homelite 690695001

Washer
(Superseded to 983788071)

$

$

Not available

22

Homelite 300756001

Clutch Assembly
(Superseded to 300756007)

$

$

Not available

23

Homelite 690696001

Wavy Washer
(Superseded to 6969601)

$2.49

$

In Stock, only 3 left!

0

24

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

25

Homelite 660351001

Screw (M5 x 16 mm Pan Hd.)
(Superseded to 6635101)

Note: Purchase locally

$2.49

$

In Stock, Qty 10

0

26

Homelite 660353001

Screw (M6 x 14 mm Pan Hd.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 290178008

Ignition Assembly

$

$

Not available

28

Homelite 660349001

Screw (M4 x 22 mm Pan Hd.)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 870144002

Spark Plug
(Superseded to 870174001)

Note: (Champion RCJ-4Y or NKGBPMR7A)

$4.49

$

In Stock, Qty 20+

0

30

Homelite 300754008

Front Housing Assembly

$

$

Not available

31

Homelite 660344001

Screw (M5 x 20 mm Pan Hd.)
(Superseded to 6634401)

Note: Purchase locally

$

$

Not available

32

Homelite 308430002

Starter Housing Assembly
(Superseded to 310030003)

$

$

Not available

33

Homelite 518201001

Rear Engine Housing

$17.99

$

Usually ships in 3-7 days

0

34

Homelite 660563001

Screw (M4 x 16 mm Pan Hd.)
(Superseded to 660734001)

Note: Purchase locally

$2.49

$

In Stock, only 3 left!

0

35

Homelite 308644003

Fuel Tank & Cap Assembly
(Superseded to 308644001)

Note: (Inc. Key No. 44)

$

$

Not available

36

Homelite 560880002

Tube
(Superseded to 5688002)

$

$

Not available

37

Homelite 690700001

Hose Clip
(Superseded to 6970001)

$2.49

$

In Stock, Qty 5

0

38

Homelite 690699001

Clip
(Superseded to 6969901)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 901590001

Air Filter
(Superseded to 5687301)

$

$

Not available

40

Homelite 308207002

Air Filter Cover Assembly

$

$

Not available

41

Homelite 638027001

Heat Shield

$4.49

$

Usually ships in 3-7 days

0

42

Homelite 950119007

Logo Label

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 950119008

Primer Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 308642001

Fuel Cap Assembly

$

$

Not available

45

Homelite 290143001

Lead Wire Assembly, Black
(Superseded to 2914301)

$3.99

$

In Stock, only 4 left!

0

46

Homelite 290143002

Lead Wire Assembly, Red
(Superseded to 2914302)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 690840001

Hex Nut (M5)
(Superseded to 983619014)

Note: Purchase locally

$

$

Not available
