RY 60520 - Ryobi Cultivator General Assembly (Part 1) Parts Diagram

Cultivator

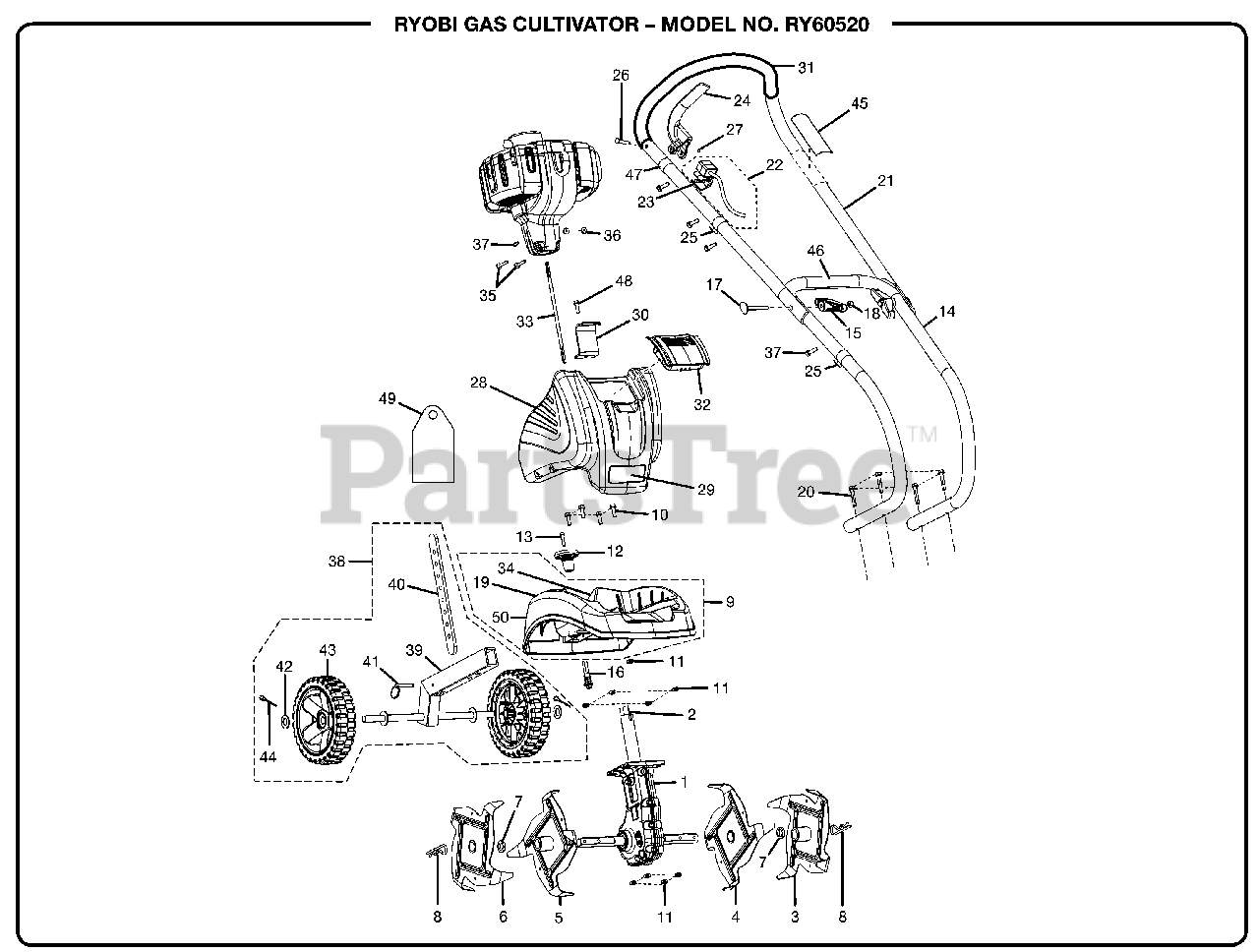

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 220029004

GEAR BOX ASSEMBLY WITH TUBE

$

$

Not available

2

Homelite 518132001

LINER - DRIVE TUBE

$

$

Not available

3

Homelite 308693001

TINE A, OUTER RIGHT

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 308693002

TINE B, INNER RIGHT

$

$

Not available

5

Homelite 308693003

TINE C, INNER LEFT

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 308693004

TINE D, OUTER LEFT
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

7

Homelite 900755001

FELT WASHER
(Superseded to UT15550A-36)

$1.49

$

In Stock, Qty 14

0

8

Homelite 638001004

CLEVIS CLIP
(Superseded to UT15550A-35)

$1.49

$

In Stock, Qty 5

0

9

Homelite 308216001

TINE SHIELD ASSEMBLY

Note: INC KEY NOS 19, 34 AND 50

$

$

Not available

10

Homelite 660643002

BOLT (1/4-20 X 1 in.)
(Superseded to 82496)

Note: Purchase locally

$

$

Not available

11

Homelite 678132001

LOCK NUT (1/4-20)

Note: Purchase locally

$

$

Not available

12

Homelite 518206001

RECEIVER RETAINER KNOB

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660713001

SCREW (M5 X 16 mm PAN HD.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 120900012

LOWER HANDLE ASSEMBLY

Note: INC KEY NO 25 AND 46

$

$

Not available

15

Homelite 518190001

KNOB (1/4-20)

$

$

Not available

16

Homelite 308228001

RECEIVER RETAINER ASSEMBLY

$

$

Not available

17

Homelite 660711002

CARRIAGE BOLT (1/4-20 X 2-1/4 in.)

Note: Purchase locally

$

$

Not available

18

Homelite 678142001

ACORN NUT (1/4-20 in.)

$

$

Not available

19

Homelite 950119010

WARNING LABEL, FOOT

$

$

Not available

20

Homelite 660643001

HANDLE BOLT (1/4-20 X 1.53 in.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 000998365

UPPER HANDLE ASSEMBLY

Note: INC KEY NOS 25, 31, 45, AND 47

$

$

Not available

22

Homelite 308641003

THROTTLE CABLE ASSEMBLY

Note: INC KEY NO 23

$14.99

$

Usually ships in 3-7 days

0

23

Homelite 760679001

SWITCH

$

$

Not available

24

Homelite 518256001

TRIGGER

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 518307001

CABLE RETAINER

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 638132001

CLEVIS PIN

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 678135001

RETAINING RING

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 308217001

TANK - BALLAST ASSEMBLY

Note: INCLUDES KEY NO 29

$

$

Not available

29

Homelite 950119004

LOGO LABEL

$

$

Not available

30

Homelite 678052001

MOUNTING BRACKET

$

$

Not available

31

Homelite 518053002

GRIP

$10.99

$

Usually ships in 3-7 days

0

32

Homelite 360991001

BALLAST TANK LID

$

$

Not available

33

Homelite 620368001

FLEXIBLE DRIVE SHAFT

$2.49

$

In Stock, only 1 left!

0

34

Homelite 950119001

WHEEL ACCESSORY LABEL

$

$

Not available

35

Homelite 660651001

BOLT (10-24 X 1-1/4 in.)

Note: Purchase locally

$

$

Not available

36

Homelite 678027001

NUT (10-24)
(Superseded to 81208)

$

$

Not available

37

Homelite 660669001

SCREW (8-16 X 1/2 in.)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

38

Homelite 308213003

WHEEL/DRAG STAKE ASSEMBLY

Note: INCLUDES KEY NO 39-44

$

$

Not available

39

Homelite 308222002

FRAME ASSEMBLY

$

$

Not available

40

Homelite 638017004

DRAG STAKE

$11.99

$

Usually ships in 3-7 days

0

41

Homelite 638017003

QUICK RELEASE PIN

$8.99

$

Usually ships in 3-7 days

0

42

Homelite 638017002

FLAT WASHER

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 308236002

WHEEL ASSEMBLY (6 in DIA.)

$9.49

$

Usually ships in 3-7 days

0

44

Homelite 638635001

COTTER PIN

$

$

Not available

45

Homelite 950119006

BOOM WARNING LABEL

$

$

Not available

46

Homelite 940734017

STARTING LABEL

$

$

Not available

47

Homelite 518489001

PLASTIC ROPE CLIP

$3.49

$

In Stock, only 1 left!

0

48

Homelite 660714002

BOLT (1/4-20 x 5/8 in.)

$

$

Not available

49

Homelite 950119014

WARNING HANG TAG

$

$

Not available

50

Homelite 950119002

TINE SHIELD WARNING LABEL

$

$

Not available

Homelite 987000067

OPERATOR'S MANUAL (960475001)

$

$

Not available
