RY 64400 - Ryobi Cultivator Figure A Parts Diagram

Cultivator

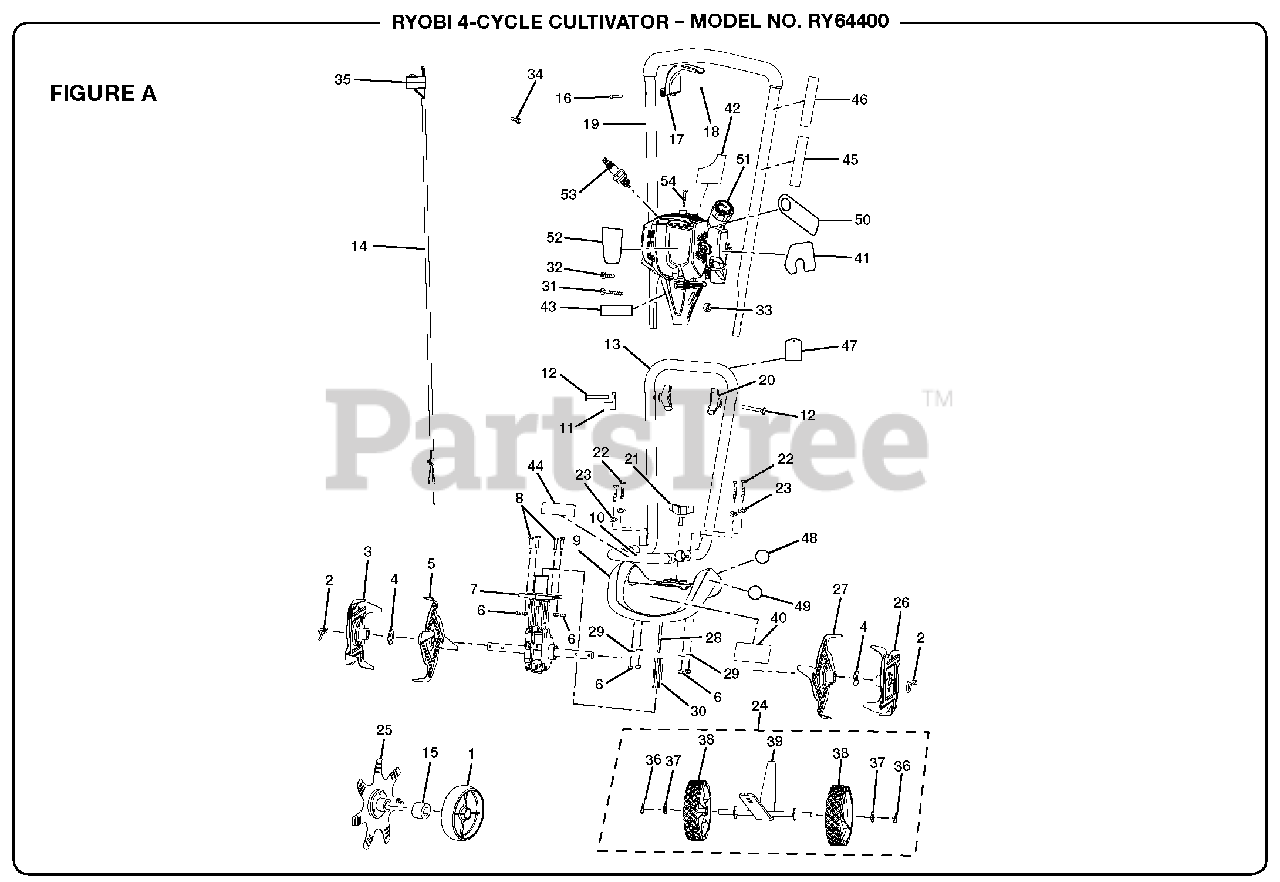

Figure A Parts Diagram

  • Title

1

Homelite 519805001

Edger Wheel

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 638001004

Clevis Pin
(Superseded to UT15550A-35)

$1.49

$

In Stock, Qty 5

0

3

Homelite 308693004

Tine D, Outer Left
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

4

Homelite 900755001

Felt Washer
(Superseded to UT15550A-36)

$1.49

$

In Stock, Qty 14

0

5

Homelite 308693003

Tine C, Inner Left

$23.99

$

Usually ships in 3-7 days

0

6

Homelite 678132001

Lock Nut (1/4-20)

$

$

Not available

7

Homelite 220101002

Gear Box

$

$

Not available

8

Homelite 660643002

Bolt (1/4-20 x 1 in.)
(Superseded to 82496)

$

$

Not available

9

Homelite 310261002

Tine Shield Assembly

$

$

Not available

10

Homelite 310263002

Front Handle

$

$

Not available

11

Homelite 519807001

Clip

$

$

Not available

12

Homelite 661527001

Bolt (M8 x 60 mm)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 638717002

Lower Handle

$

$

Not available

14

Homelite 308330002

Throttle Cable Assembly (Incl. Key No. 55)

$13.99

$

Usually ships in 3-7 days

0

15

Homelite 638163002

Spacer

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 638132001

Pin

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 518256003

Trigger

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 678135001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 308629003

Upper Handle Assembly

$

$

Not available

20

Homelite 310262003

Knob (M8)

$

$

Not available

21

Homelite 310262001

Knob (M8 x 25 mm)

$

$

Not available

22

Homelite 660643001

Bolt (1/4-20 x 1-1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 690696001

Curved, Washer
(Superseded to 6969601)

$1.49

$

In Stock, only 3 left!

0

24

Homelite 308213005

Wheel/Drag Stake Assembly (Incl. Key No. 36-39)

$

$

Not available

25

Homelite 310594001

Edging Tine

$17.99

$

Usually ships in 3-7 days

0

26

Homelite 308693001

Tine A, Outer Right

$23.99

$

Usually ships in 3-7 days

0

27

Homelite 308693002

Tine B, Inner Right

$

$

Not available

28

Homelite 620888002

Drive Shaft

$

$

Not available

29

Homelite 678013001

Washer

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 518132007

Liner

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 660697002

Screw (M6 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

32

Homelite 660634001

Screw (8-16 x 3/8 in., T.F.)

$1.49

$

In Stock, Qty 20+

0

33

Homelite 678029002

Hex Nut (M6)

$1.49

$

In Stock, Qty 9

0

34

Homelite 660669001

Screw (8-16 x 1/2 in., T.F.)

$1.49

$

In Stock, Qty 5

0

35

Homelite 760679001

Switch

$

$

Not available

36

Homelite 638635001

Cotter Pin

$

$

Not available

37

Homelite 638017002

Washer

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 308236002

Wheel Assembly (6 in. Dia.)

$9.49

$

Usually ships in 3-7 days

0

39

Homelite 310260001

Frame Assembly

$20.99

$

Usually ships in 3-7 days

0

40

Homelite 941485003

Ryobi Logo Label

$

$

Not available

41

Homelite 941485005

Quick Start Label

$

$

Not available

42

Homelite 940680023

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940974010

Combustion Warning Label

$

$

Not available

44

Homelite 940654115

Front Handle Label

$

$

Not available

45

Homelite 940654082

Cultivator Warning Label

$

$

Not available

46

Homelite 941484001

Cultivator Icon Warning Label

$

$

Not available

47

Homelite 941485007

Hang Tag (French/Spanish)

$

$

Not available

48

Homelite 950119010

Foot Warning Label

$

$

Not available

49

Homelite 940657037

Hand Warning Label

$

$

Not available

50

Homelite 940971028

Oil Warning Hang Tag

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 310586001

Fuel Cap
(Superseded to 310816006)

$3.99

$

In Stock, only 4 left!

0

52

Homelite 941485004

Logo Label (4-Cycle)

$

$

Not available

53

Homelite 870217001

Spark Plug (Champion RZ7C)
(Superseded to 870301002)

Note: Purchase Locally

$8.49

$

In Stock, only 1 left!

0

54

Homelite 660510005

Screw (M5 x 20 mm)

$

$

Not available

55

Homelite 901454002

Filter

Note: (Not Shown)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 310266001

Airbox Cover

Note: (Not Shown)

$

$

Not available

57

Homelite 987000519

Operator's Manual (960206001)

Note: (Not Shown)

$

$

Not available
