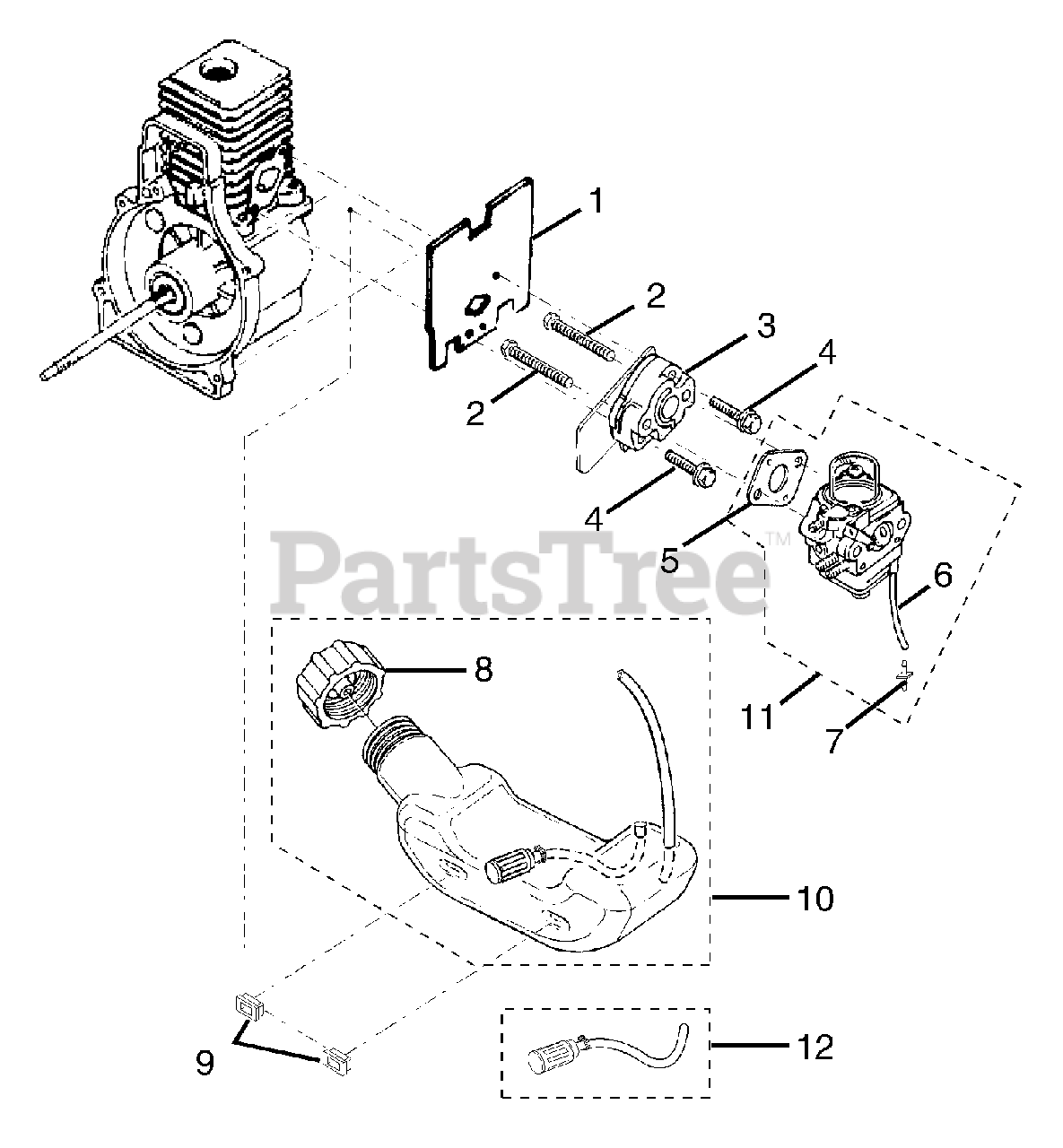

RY 70101 - Ryobi String Trimmer Fuel Tank Parts Diagram

String Trimmer

Fuel Tank Parts Diagram

  • Title

1

Homelite 06900A

HEAT DAM GASKET

$

$

Not available

2

Homelite 04474

CARBURETOR BOLT

$

$

Not available

3

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

4

Homelite 093221

PAN HEAD SEMS SCREW
(Superseded to 660662001)

$

$

Not available

5

Homelite 98766A

CARBURETOR GASKET
(Superseded to 900994004)

$

$

Not available

6

Homelite 0143910

RUBBER HOSE (63.5 mm)

$3.49

$

In Stock, only 4 left!

0

7

Homelite 07332

INLINE FUEL FITTING
(Superseded to 985304001)

$2.49

$

In Stock, only 4 left!

0

8

Homelite A09115

FUEL CAP
(Superseded to 300758006)

$

$

Not available

9

Homelite 98792

BUMPER

$

$

Not available

10

Homelite 984527001

FUEL TANK ASSEMBLY

$

$

Not available

11

Homelite 984528001

CARBURETOR ASSEMBLY KIT

$

$

Not available

12

Homelite 985077001

FUEL FILTER KIT
(Superseded to 000998272)

Note: (INCLUDED ON FUEL TANK ASSEMBLY)

$10.99

$

Usually ships in 3-7 days

0
