RY 70107 A - Ryobi String Trimmer Brush Cutter Head Assembly Parts Diagram

String Trimmer

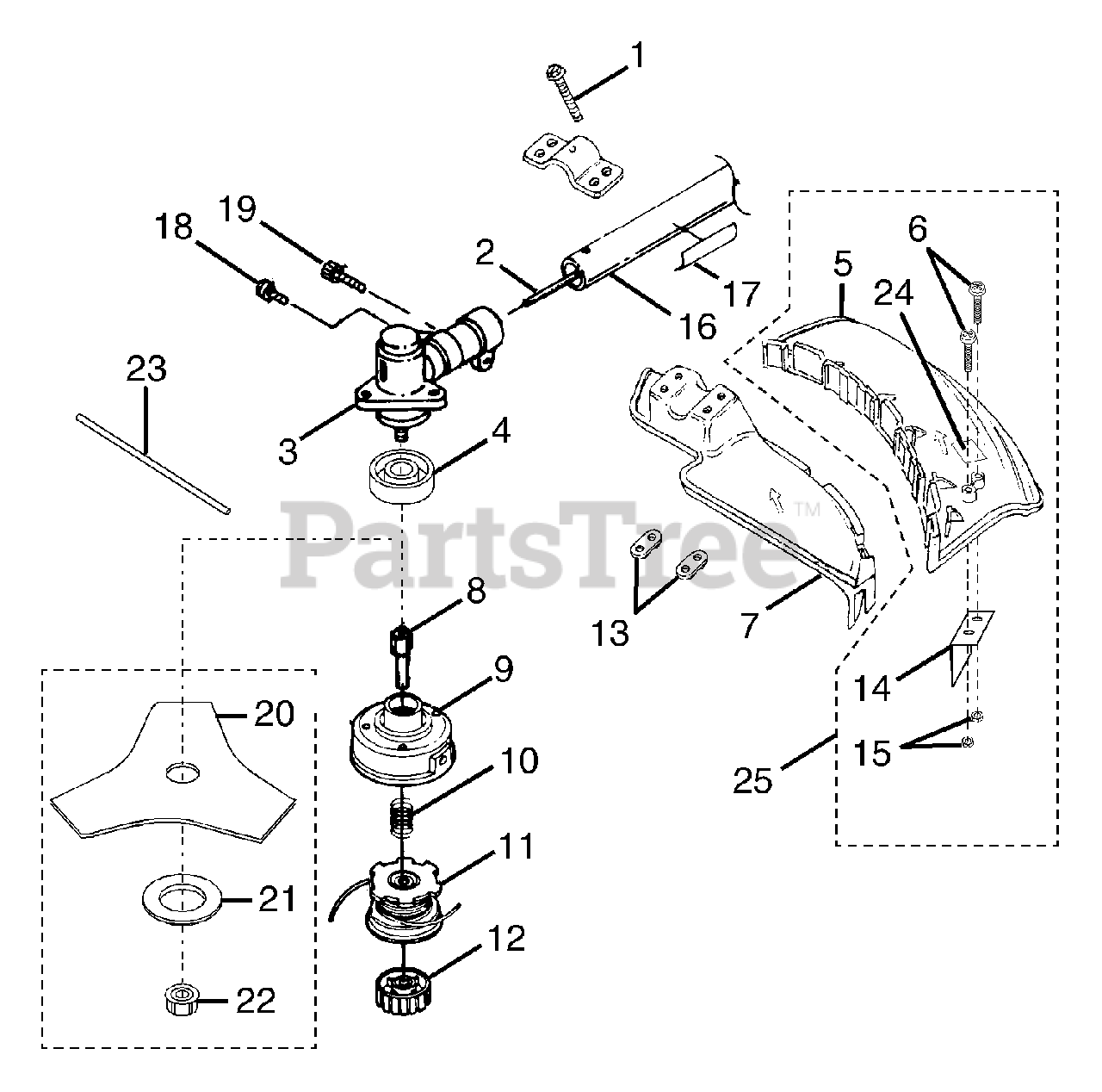

Brush Cutter Head Assembly Parts Diagram

  • Title

1

Homelite PS01255

SCREW

$

$

Not available

2

Homelite PS02293

FLEXIBLE SHAFT

$21.99

$

Usually ships in 3-7 days

0

3

Homelite PA01364

GEAR CASE ASSEMBLY
(Superseded to 308210008)

$

$

Not available

4

Homelite 041681A

FLANGED WASHER
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 08572

STRING SHIELD CCW

$

$

Not available

6

Homelite 82531

SCREW (10 - 24 x 7/8)
(Superseded to 660616001)

$

$

Not available

7

Homelite 08573

BLADE GUARD CCW

$

$

Not available

8

Homelite 9855141

ADAPTER SHAFT/1986

$

$

Not available

9

Homelite A98231A

HOUSING AND EYELETS
(Superseded to 099068001005)

$

$

Not available

10

Homelite 06713

COMPRESSION SPRING

$1.49

$

In Stock, only 2 left!

0

11

Homelite PA01347A

SPOOL AND STRING (.95)
(Superseded to UP06908A)

$60.99

$

Usually ships in 3-7 days

0

12

Homelite PA01271

SPOOL RETAINER (L/H THREAD)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite A08139

MOUNTING PLATE

$

$

Not available

14

Homelite 07076

CUT OFF BLADE

$

$

Not available

15

Homelite 81261

HEX NUT

$

$

Not available

16

Homelite 984662001

D.S. HOUSING FOR BIKE HANDLE

$

$

Not available

17

Homelite PS06337

WARNING DECAL

$1.49

$

Usually ships in 3-7 days

0

18

Homelite PS04673

SCREW (10-24 x .625 TAPTIT)
(Superseded to 660641001)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite PS04680

SCREW (1/4 - 20 x 1.25 TAP)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 984227001

TRI-ARC BLADE

$

$

Not available

21

Homelite 04409

CUPPED WASHER

$2.49

$

In Stock, only 1 left!

0

22

Homelite 04277

LOCK NUT
(Superseded to 678018001)

$

$

Not available

23

Homelite 00063

HOLDING PIN
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

24

Homelite 09197

WARNING LABEL

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 984554001

STRING SHIELD ASSEMBLY

$

$

Not available
