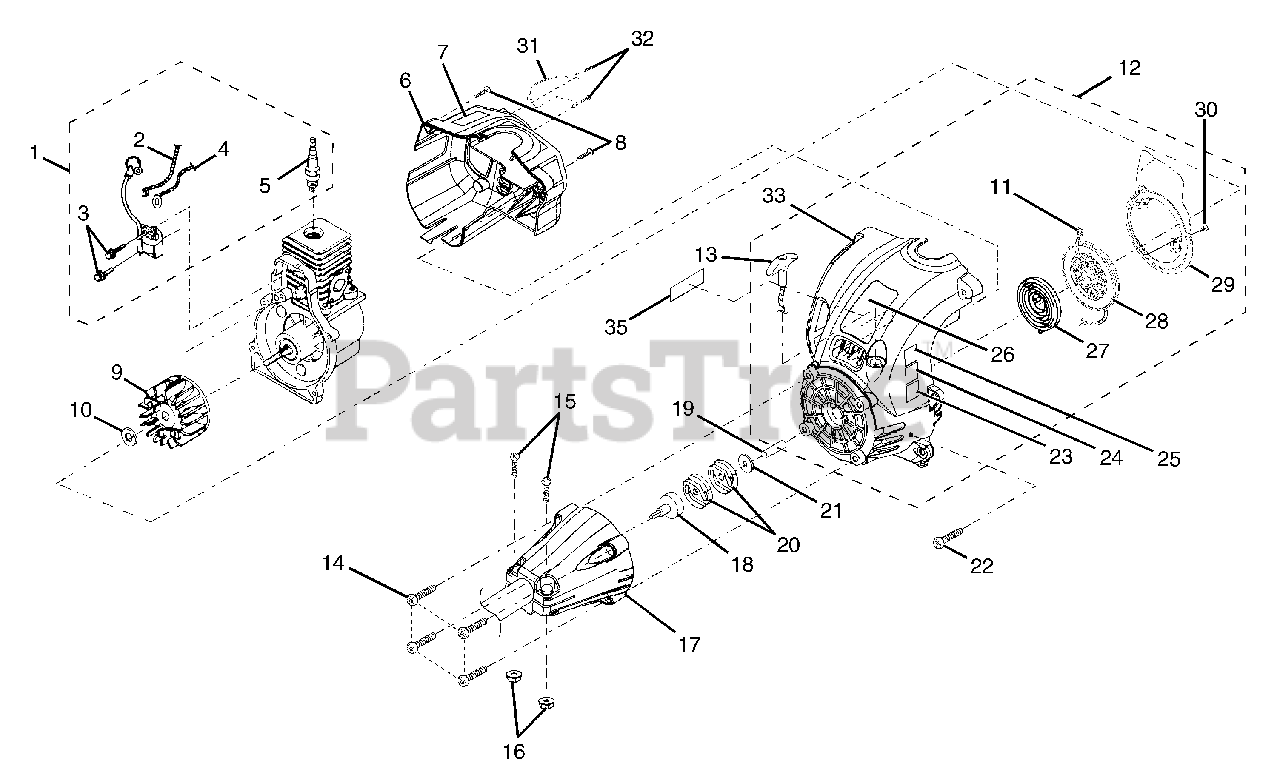

RY 70107 A - Ryobi String Trimmer Upper Housing/Handle Assembly Parts Diagram

String Trimmer

Upper Housing/Handle Assembly Parts Diagram

  • Title

1

Homelite 984520001

IGNITION KIT

$

$

Not available

2

Homelite A06963

ELECTRICAL LEAD

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 82540

SCREW

$2.49

$

Usually ships in 3-7 days

0

4

Homelite A06964

ELECTRICAL LEAD

$

$

Not available

5

Homelite PS02227

SPARK PLUG
(Superseded to 870174002)

$21.99

$

Usually ships in 3-7 days

0

6

Homelite PS01127

REAR COVER

$

$

Not available

7

Homelite 982722001

LOGO PLATE

$1.06

$

Usually ships in 3-7 days

0

8

Homelite 82537

SCREW (10-14 x 7/8)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 984521001

ROTOR AND PAWL ASSEMBLY
(Superseded to 300952002)

$

$

Not available

10

Homelite PS05268

WASHER

$2.49

$

In Stock, only 2 left!

0

11

Homelite 9789902

STARTER ROPE 42 in.
(Superseded to 900849002)

$2.49

$

In Stock, only 3 left!

0

12

Homelite 984547001

STARTER ASSEMBLY

$

$

Not available

13

Homelite PS06114

ERGO GRIP

$

$

Not available

14

Homelite 82563

SCREW

$2.49

$

In Stock, Qty 6

0

15

Homelite 82556

SCREW

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 81208

NUT

$

$

Not available

17

Homelite PS03542

NOSE CONE ADAPTER

$

$

Not available

18

Homelite PA01613

DRUM & CONNECTOR
(Superseded to 308177001)

$

$

Not available

19

Homelite PS05267

SPACER

$

$

Not available

20

Homelite 00242

CLUTCH DISK (ST185 & ST385)

$

$

Not available

21

Homelite 98929A

WASHER
(Superseded to 638090001)

$2.49

$

In Stock, only 1 left!

0

22

Homelite 82538

SCREW

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 984288001

DECAL, 112 POWER SOUND

$

$

Currently unavailable

24

Homelite 06976

DECAL, CE

$2.49

$

Usually ships in 3-7 days

0

25

Homelite PS06261

DECAL, ZIP START
(Superseded to PS06335)

$

$

Not available

26

Homelite PS06272

DECAL, MODEL

$

$

Currently unavailable

27

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$6.49

$

In Stock, Qty 20+

0

28

Homelite 98770A

STARTER PULLEY

$

$

Not available

29

Homelite PS06339

AIR BAFFEL PLATE

$

$

Not available

30

Homelite 82543

SCREW

$

$

Not available

31

Homelite PS00218

MUFFLER GUARD

$31.99

$

Usually ships in 3-7 days

0

32

Homelite 82541

SCREW

$2.49

$

In Stock, only 3 left!

0

33

Homelite PA01641

STARTER HOUSING & EYELET

$

$

Not available

34

Homelite 03646

TORX WRENCH

Note: (NOT SHOWN)

$

$

Not available

35

Homelite 984417001

FUEL MIX RATIO DECAL

$2.49

$

Usually ships in 3-7 days

0
